Commissioning Manual
6FC5397-4EP10-0BA8, 07/2018
237

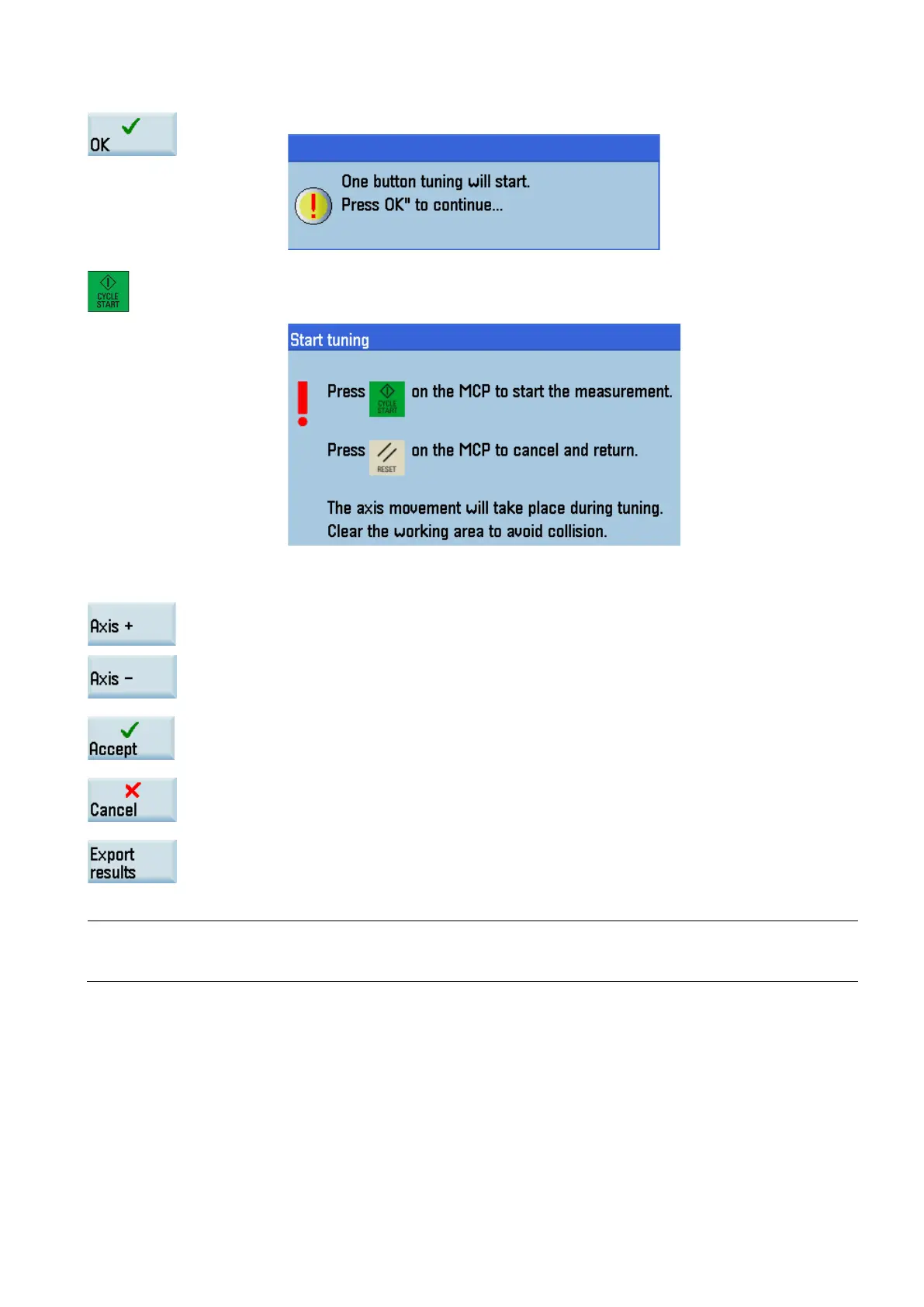

Press this softkey to confirm and proceed to one
-key auto tuning.
Press this key on the MCP and the drive tuning starts automatically. Since the axes traverse
during the tuning process, make sure you take proper precautions to avoid personal injury
or machine damage.
After the drive tuning finishes successfully, the tuning results appear on the screen in the
form of a parameter list.
You can check the tuning results of the additional axis with these softkeys.
Press this softkey to save the tuning results and write the modified parameters into the
drives.
sing this softkey aborts the tuning and deletes the results.
It returns automatically to the main screen of drive tuning after the tuning finishes. You can
use
this softkey to save the trace files during the tuning process to a USB flash disk (if in-
Note
For the machine data that are changeable only with a manufacturer password, the settings made during drive tuning cannot
be restored after an NC rest
art in case of power failure or unexpected abortion of the tuning process.
