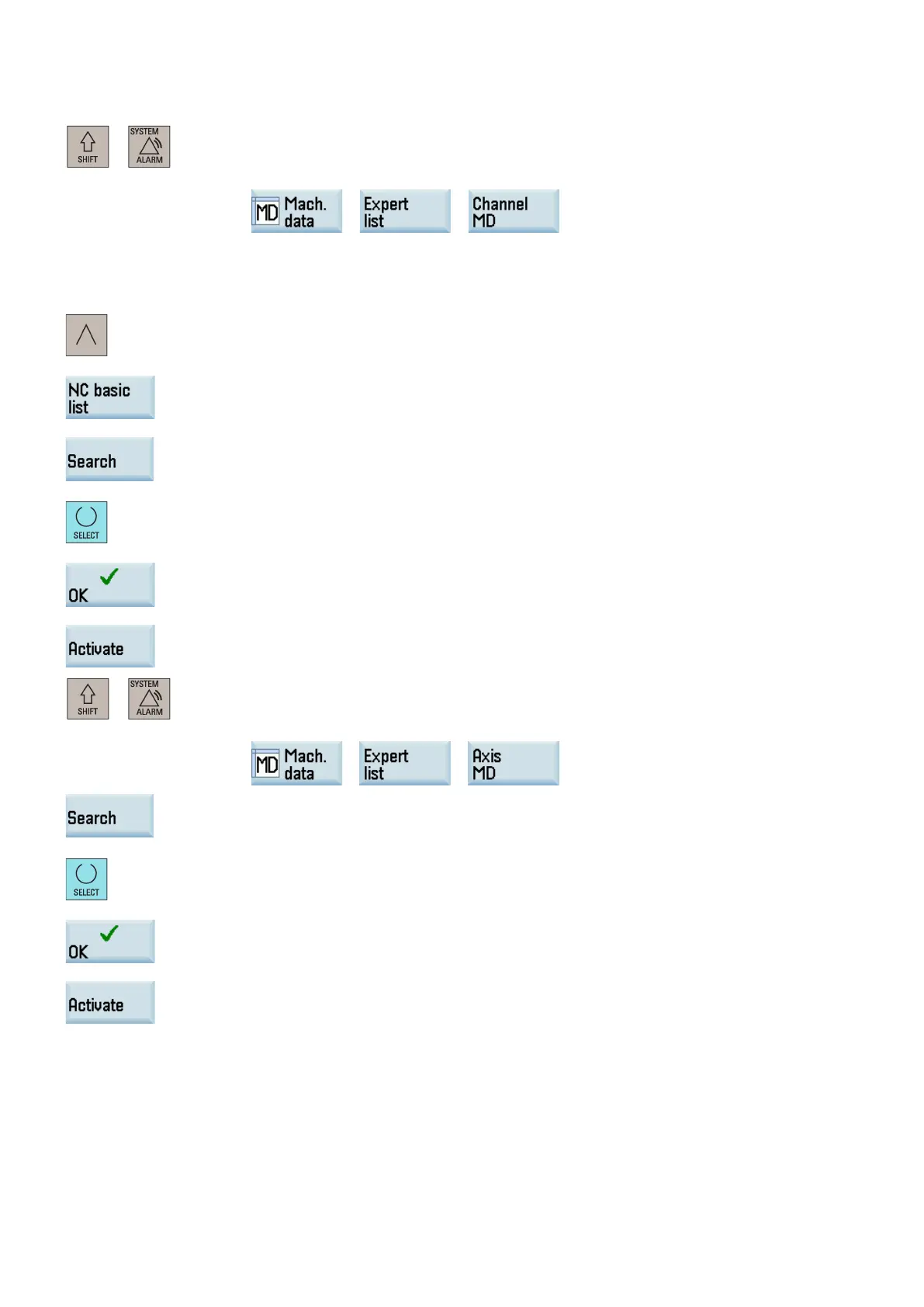

Proceed as follows to set the parameters for an additional positioning axis:
+
1.
Select the system data operat
ing area.
2.
Open the channel machine data window through the following softkey operations:
→ →
3.
Set the machine data 20070 as follows:
•
For the turning variant: set 20070[3]/[4]/[5] = 5 or 6
•
For the milling variant: set 20070[4]/[5] = 5 or 6.
4.
Press this key to return to the higher
-level menu.
5.
Open the basic machine data list.
6.
Use this softkey or the cursor keys to search for "14512 USER_DATA_HEX[20]".
7.
Select "Bit2" by using this key and the cursor keys.
8.
Press this softkey to confirm your input.
9.
Press this softkey to activate the value changes. Note that the control system restarts to a
c-
cept the new values and the additional axis can be displayed in th
e system.
+
10.
Select the system data operating area.
11.
Open
the axis machine data window through the following softkey operations:
→ →
12.
Use this softkey or the cursor keys to search for the machine data 30460 for the p
ositioning
axis.
13.
Select "Bit2" by using
this key and the cursor keys.
14.
Press this softkey to confirm your input.
15.
Press this softkey to activate the value changes. The control system restarts to a
c
cept the new
value.
16.
Perform further operations to
configure the drive system (Page 235) and tune the drive per-
formance (Page 236) for the positioning axis.
