Commissioning Manual
278 6FC5397-4EP10-0BA8, 07/2018
•

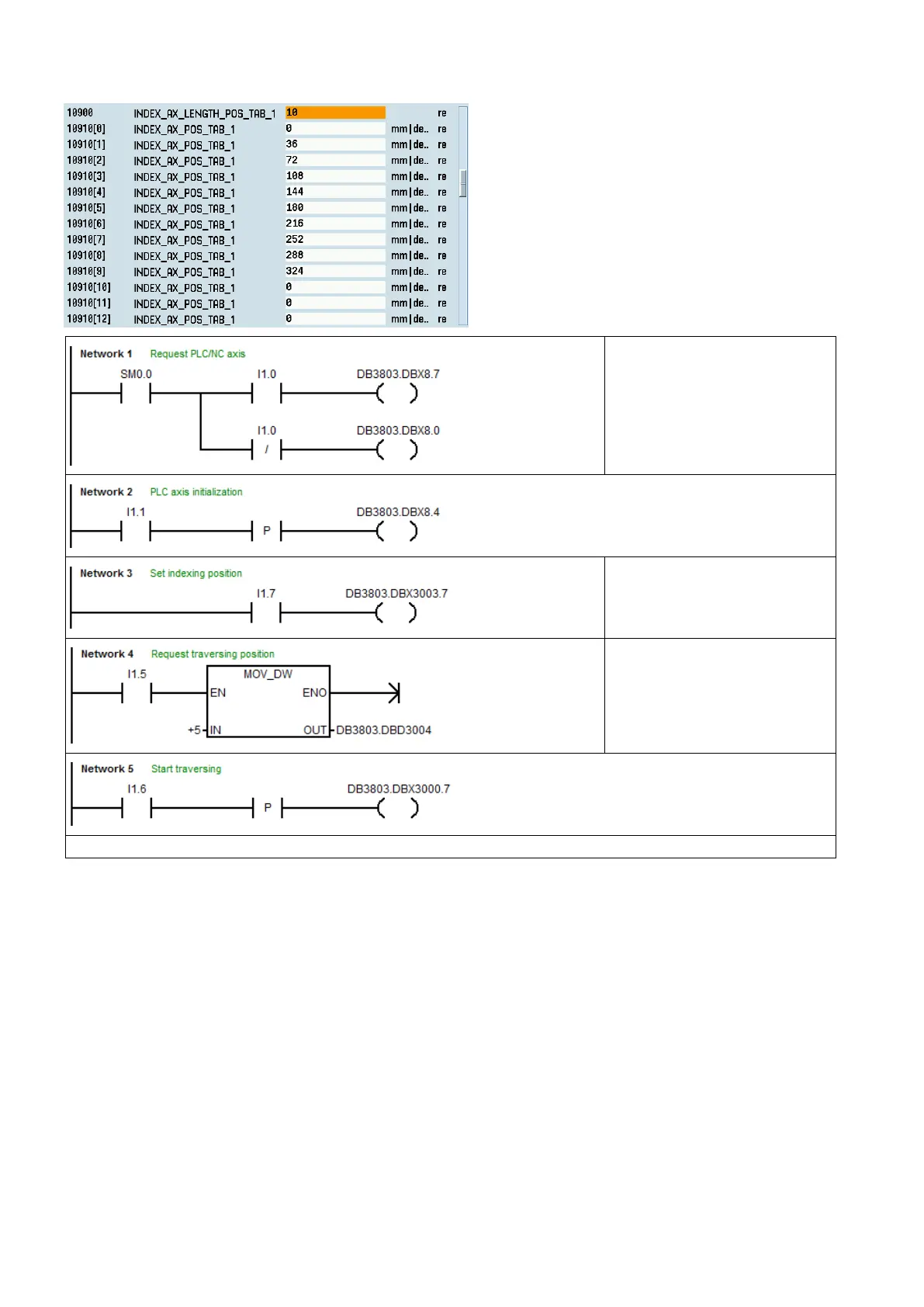

DB3803.DBX8.7 = 1: request
PLC axis
• DB3803.DBX8.0 = 1: request
NC axis
Indexing position active
Select the fifth indexing position
Result: The PLC axis traverses to the fifth position set in MD10910[4].
For more information about PLC axis function, see the SINUMERIK 808D ADVANCED Function Manual.
