Siemens SINUMERIK 808D ADVANCED Series User Manual

Commissioning Manual
6FC5397-4EP10-0BA8, 07/2018
289
Tag identifier
Meaning
BREAK
Conditional cancellation of a loop.
CONTROL
The tag is used to generate control elements.
CONTROL_RESET
The tag enables one or more control components to be restarted.
Syntax:
<CONTROL_RESET resetnc="TRUE" />
Attributes:
•
RESETNC = "TRUE"
The NC component is restarted.

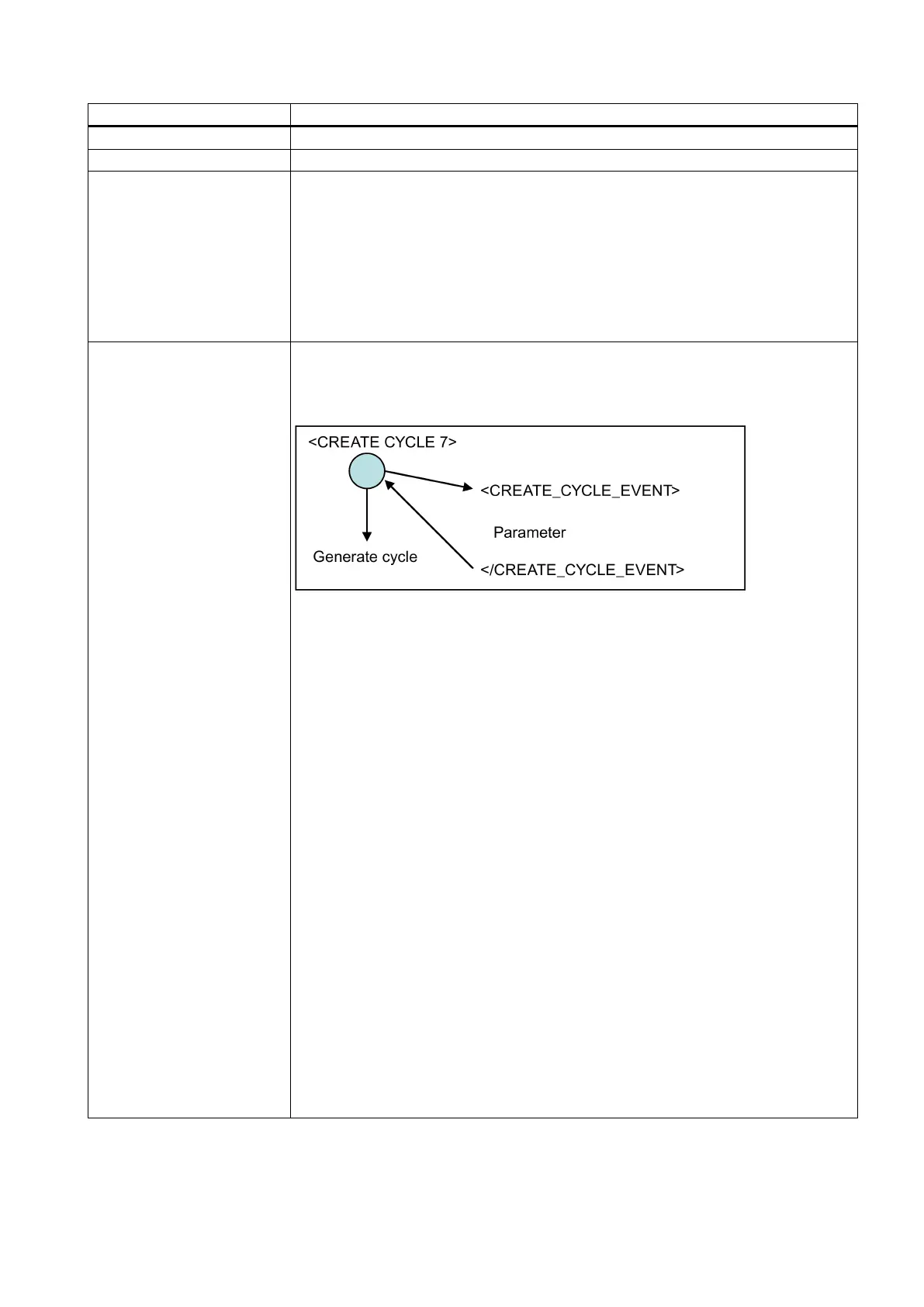

CREATE_CYCLE_EVENT
If the parser starts to process the tag CREATE_CYCLE, initially, the message
<CREATE_CYCLE_EVENT> is sent to the active form. This message can be used for
preparing the cycle parameters, before the parser generates the NC operation from the
parameter list and the generation rule.
Syntax:
<CREATE_CYCLE_EVENT>
…
…
</CREATE_CYCLE_EVENT>
Example:
<SOFTKEY_OK>
…
<CREATE_CYCLE />
…
…
<SOFTKEY_OK>
…
…
<FORM>
<NC_INSTRUCTION>MY_CYCLE($P1, $P2)</ NC_INSTRUCTION >
…
…
<CREATE_CYCLE_EVENT>
<type_cast name="P1" type="int"/>
<OP> P1 = P1 * 150 </OP>
</CREATE_CYCLE_EVENT>
…
…
</FORM>
