Commissioning Manual
36 6FC5397-4EP10-0BA8, 07/2018

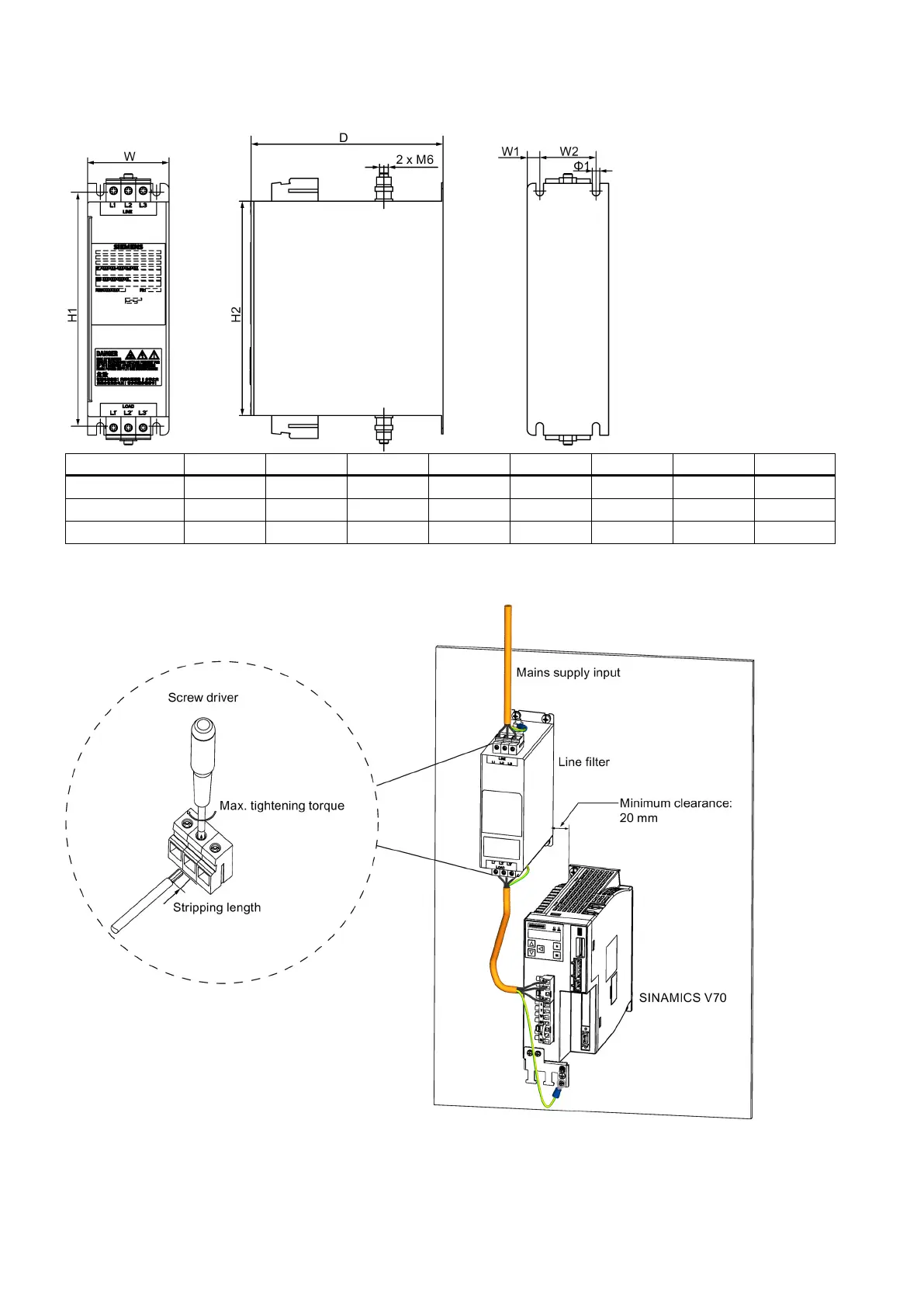

● Filter used for SINAMICS V70 spindle drives:
Rated current (A)
W
D
W2
H2
H1
H3
W1
Ø1
24
58
121.5
35
255
265
200
11.5
5.5
36
50
226
25
395
415
380
12.5
6.5
74
75
226
50
395
415
380
12.5
6.5
Connecting
The figure below provides a connection example. It shows how to connect a line filter to a SINAMICS V70 drive.
