Siemens SINUMERIK 808D ADVANCED Series

Commissioning Manual
6FC5397-4EP10-0BA8, 07/2018
51
PPU160.3/PPU150.3
Note

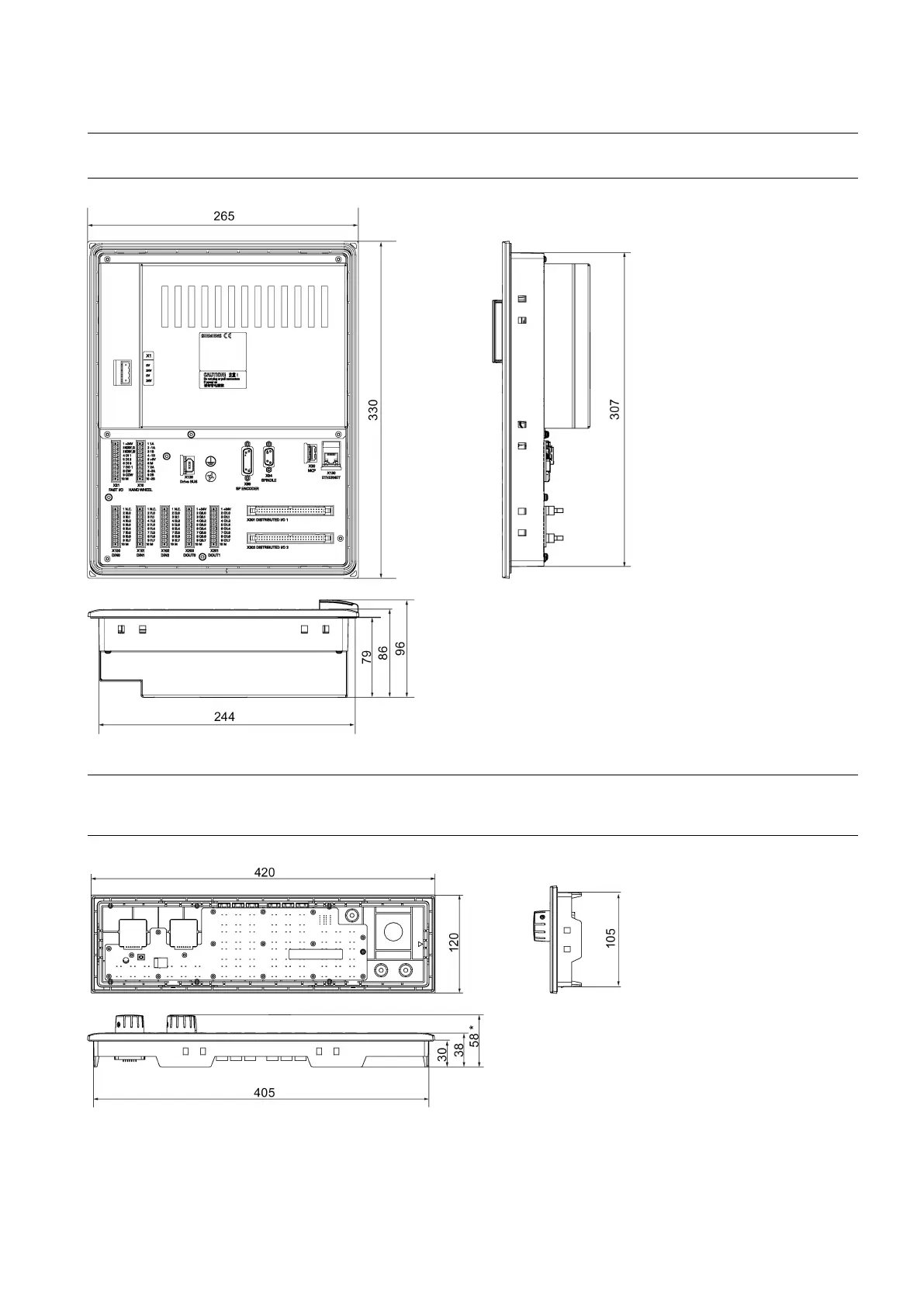

PPU160.3 and PPU150.3 have the same outline dimensions. The illustration below uses PPU160.3 as an example.
Horizontal MCP
Note
All horizontal MCP versions have the same outline dimensions. The illustration below uses the variant with override switches
as an example.
* Not available on the horizontal MCP with a reserved slot for the handwheel
