Commissioning Manual
60 6FC5397-4EP10-0BA8, 07/2018

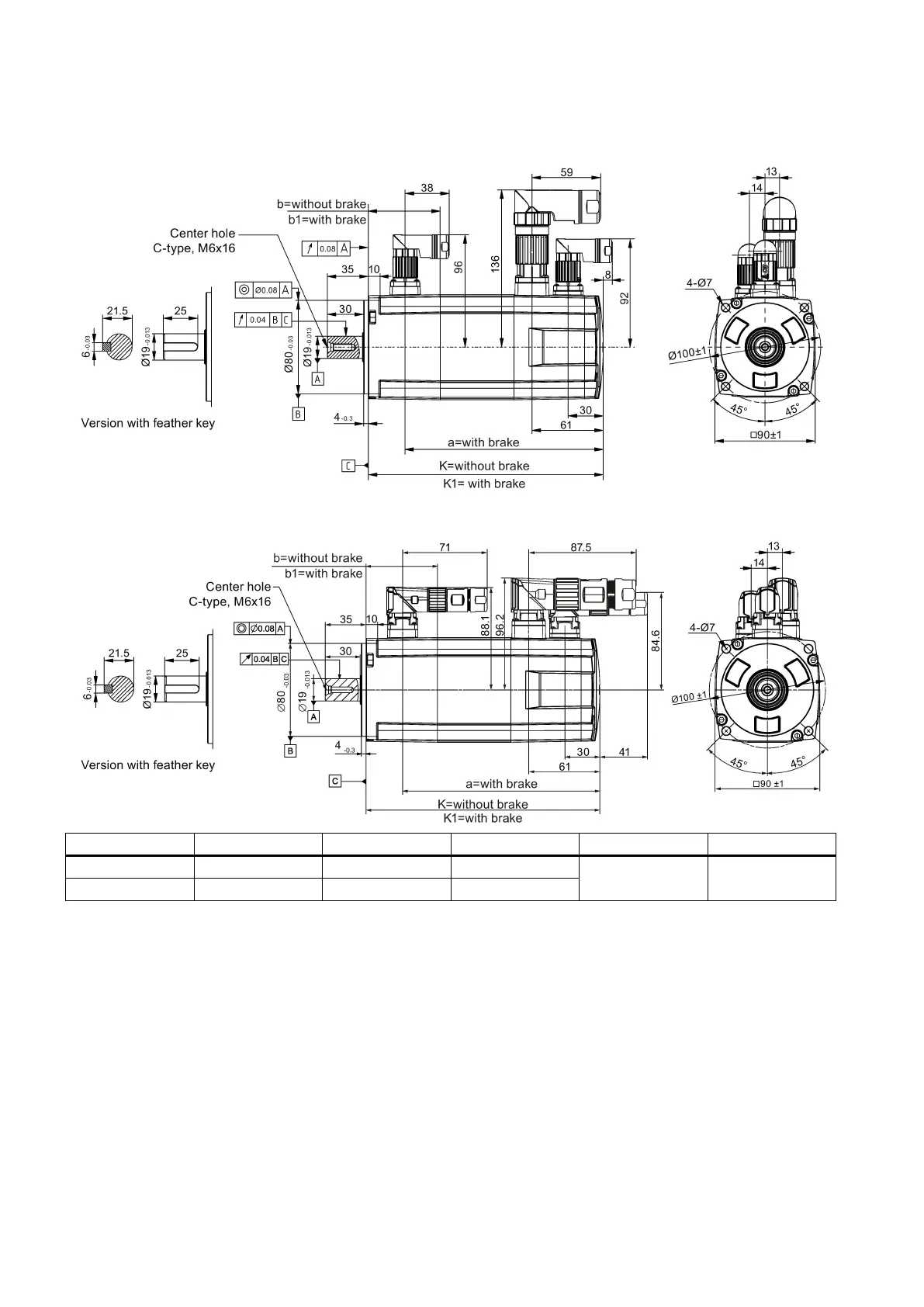

Motor dimensions (unit: mm)
Shaft height 45 mm, with straight connectors and the incremental encoder
Shaft height 45 mm, with angular connectors and the incremental encoder
Stall torque
k
k1
a
b
b1
1.9 Nm
154.5
201
169.5
15 61.5
3.5 Nm
201.5
248
216.5
