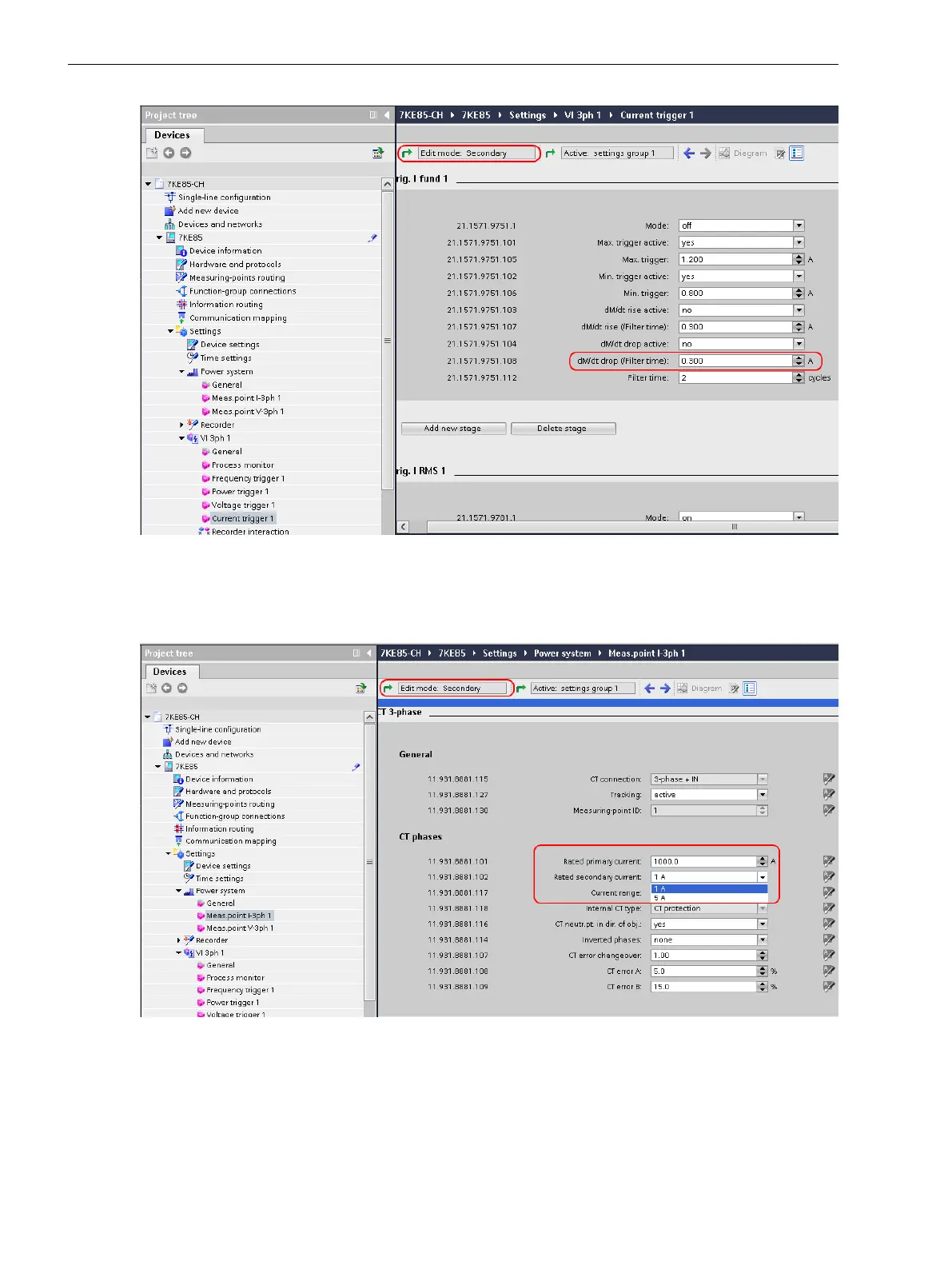

Figure 3-49
Secondary Values at a Transformer Rated Current of 1 A
Change the secondary rated current of the current transformer in the setting sheet of the transformer data
from 1 A to 5 A in the Power-system data in the Measuring point I-3ph (Edit mode: Secondary).
[scabfrag-280113-01.tif, 1, en_US]
Figure 3-50 Switchover to the Desired Setting View
If you change the transformer data, a window will appear (see the following figure) that will ask you for the
action desired.
System Functions
3.7 General Notes for Setting the Threshold Value of Trigger Functions
100 SIPROTEC 5, Fault Recorder, Manual
C53000-G5040-C018-5, Edition 11.2017
