[dw_structure FG VI 1-phase, 1, en_US]

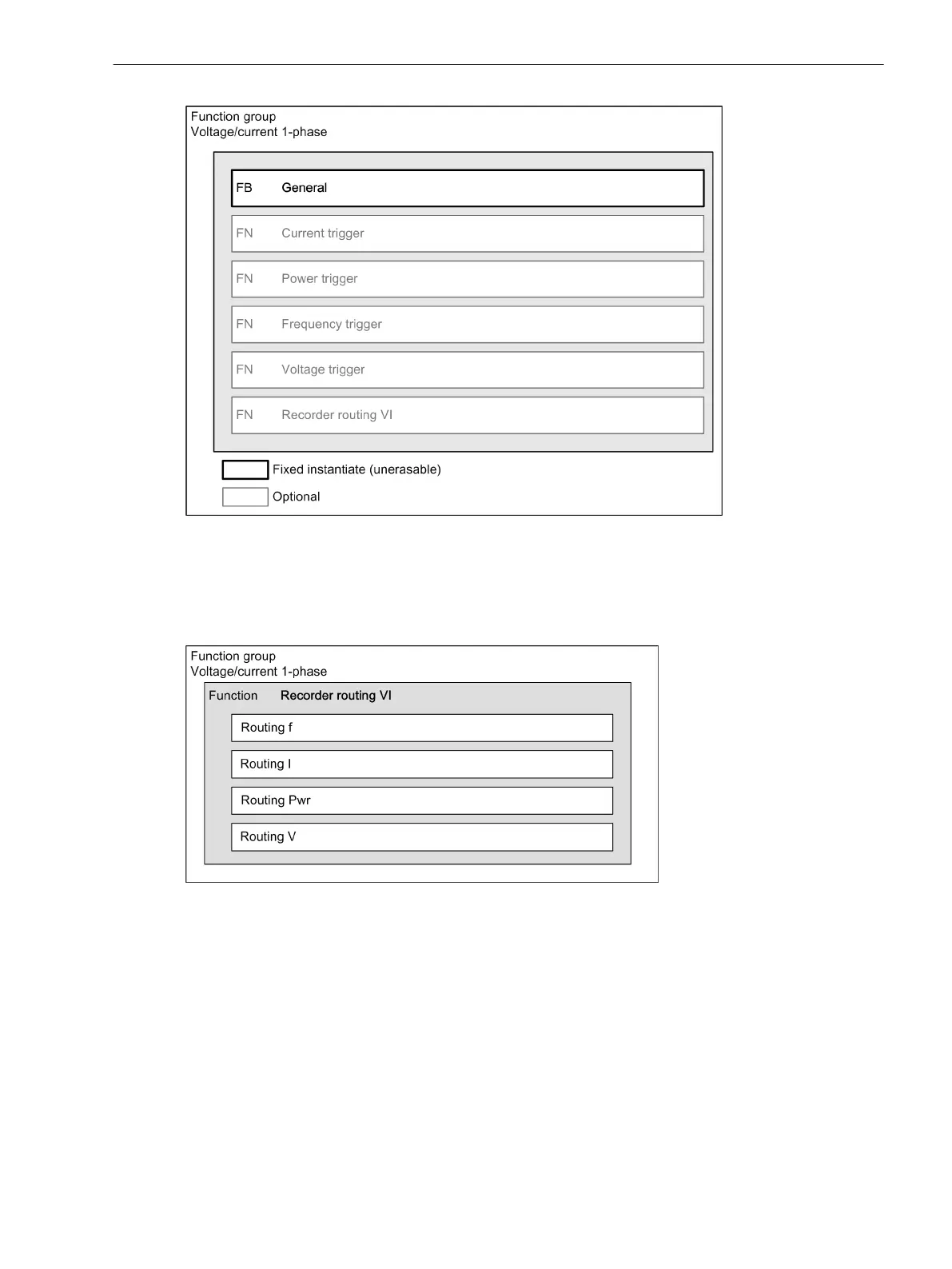

Figure 6-4
Structure of the Voltage/Current 1-Phase Function Group
The function group has interfaces to the voltage and current measuring points.
The recorder routings allow the routing of the individual measured values to the various recorders. The
following figure shows the structure of the Recorder routing VI function group.
[dw_recorder routing FG VI 1-phase, 1, en_US]
Figure 6-5 Structure/Embedding of the Recorder Routing VI Function
You can find more information on the Recorder routing VI function in the chapters 7.1.3 Step 2: Setting the
Parameters and Routing in DIGSI 5 and 7.6.1.2 Using Measurands .
Interface with Measuring Points
The function group receives the required measured values via the interfaces to the measuring points. If you
add functions to the function group, they will automatically receive the measured values from the respective
voltage or current measuring points. If you add functions to the function group but the measuring point
necessary for this is not connected, DIGSI 5 reports an inconsistency.
Configure the measuring points in DIGSI 5 via the Function group connections editor. You can find more
detailed information in chapter 7.1.2 Step 1: Creating a New Project and Adding a New Device .
Function-Group Types
6.2 Function-Group Type Voltage/current 1-Phase
SIPROTEC 5, Fault Recorder, Manual 141
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
