The function group has the following interfaces with the measuring points:
•
1-phase voltage
The 1-phase voltage is provided via this interface. All values that can be calculated from the measurands
are also provided via this interface.
•
1-phase current
The 1-phase current is provided via this interface. All values that can be calculated from the measurands
are also provided via this interface.

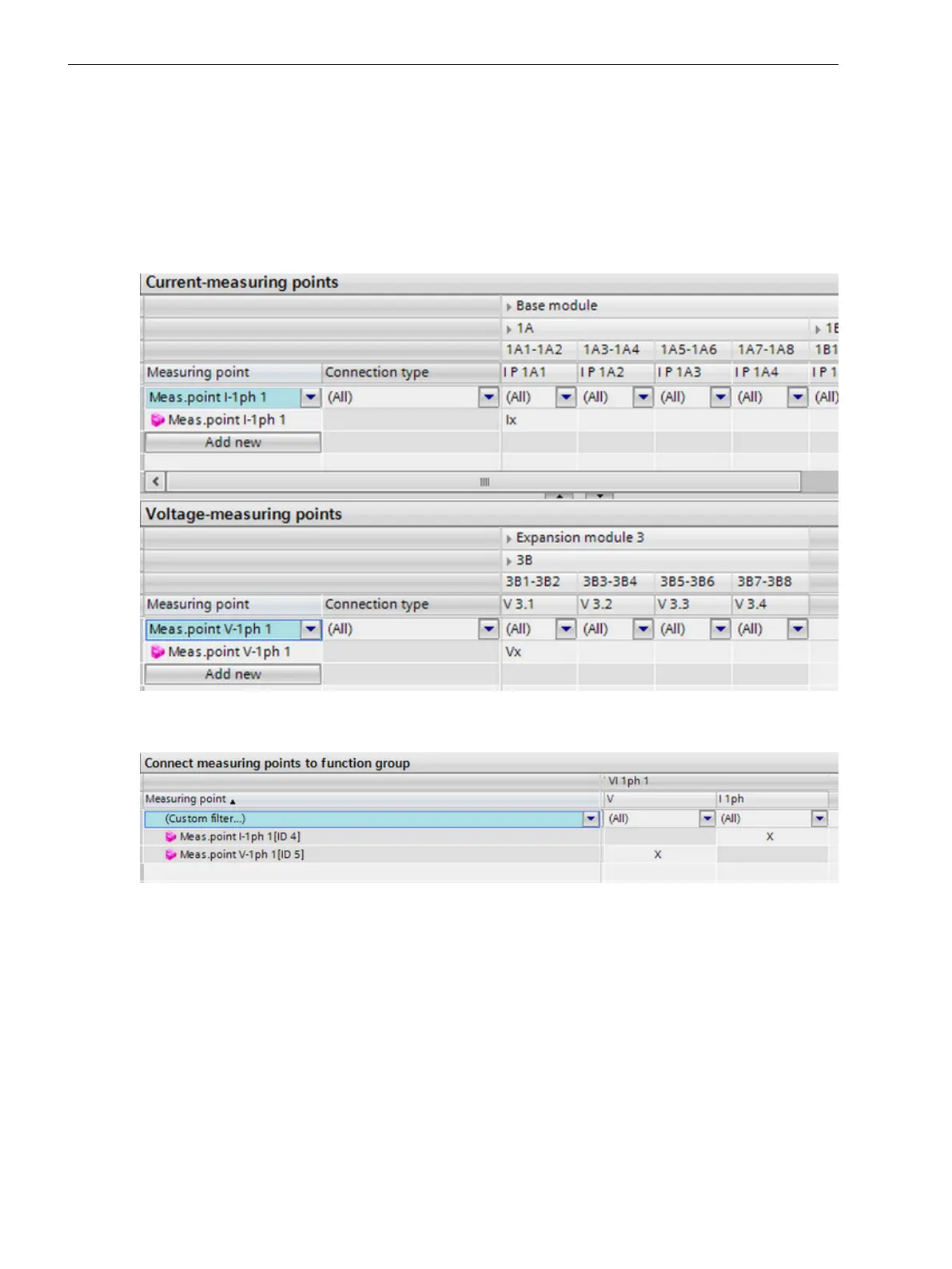

[sc_measuring points, 1, en_US]
Figure 6-6
Assigning Measuring Points
[sc_routing MP to FG, 1, en_US]
Figure 6-7 Connecting Measuring Points to the Voltage/Current 1-Phase Function Group
Equipment Data
The rated voltage and rated current as well as the neutral-point treatment of the object or the equipment are
defined here. These data apply to all functions in the Voltage/current 1-phase function group.
Reset the LED Group
Using the Reset the LED group function, you can reset the stored LEDs of the functions in one specific func-
tion group while the activated, stored LEDs of other functions in other function groups remain activated.
Function-Group Types
6.2 Function-Group Type Voltage/current 1-Phase
142 SIPROTEC 5, Fault Recorder, Manual
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
