[scPMUnam_de, 1, en_US]

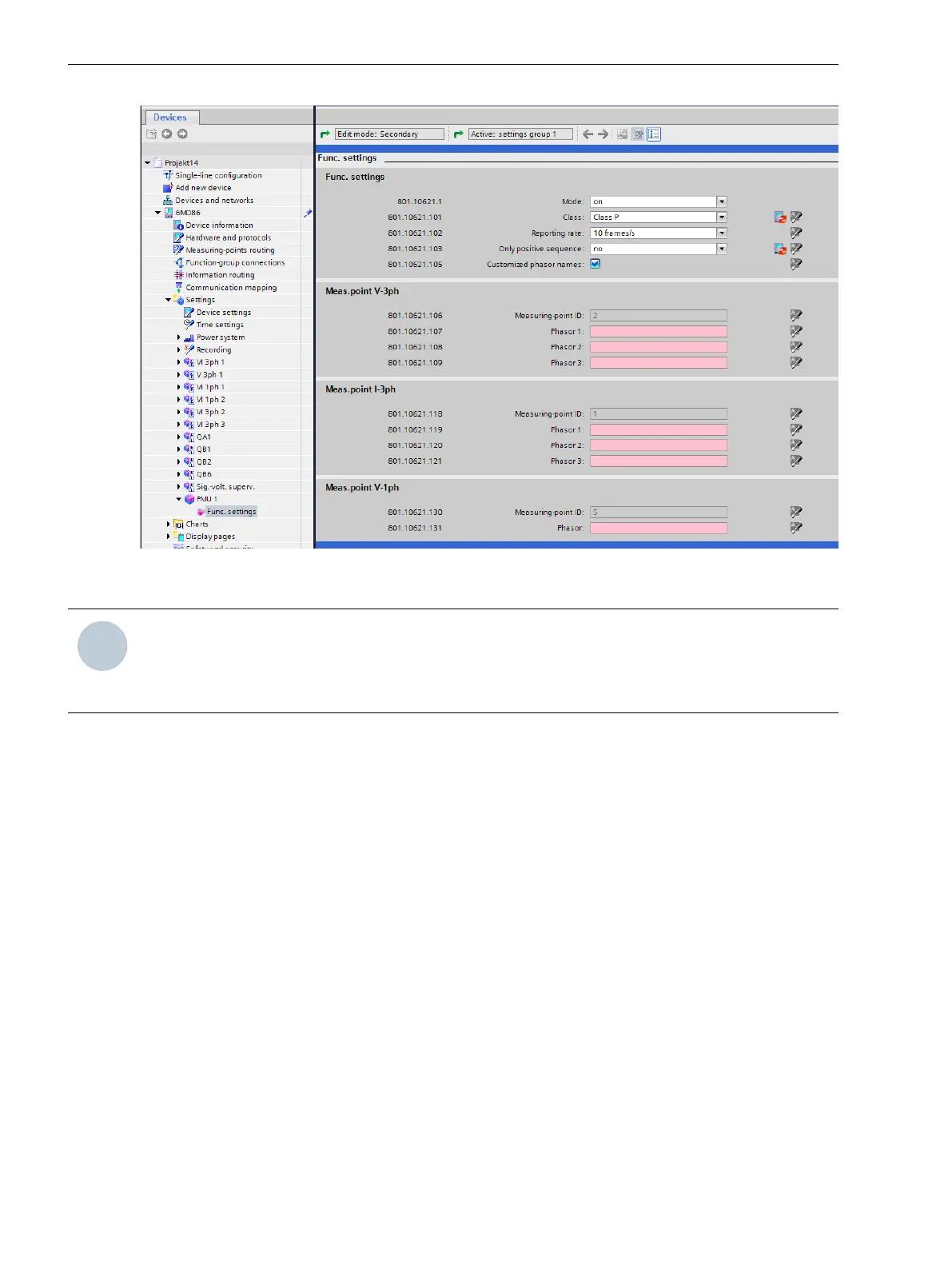

Figure 6-25
Options for Editing the Names of the Individual Phasors
i
i
NOTE
You can only rename each individual phasor when you set the parameter Positive-sequence system
only to No in the functional settings. Otherwise you will only be offered one single phasor for each 3-
phase measuring point for renaming.
Routing Binary Signals
You can connect binary inputs or CFC information with binary channels of the PMU via DIGSI information
routing. You will find, in the Phasor Measurement Unit (PMU) folder, the Binary information transmission
function block in the DIGSI function library (see the following figure). You can instantiate this function block
up to 10 times in one PMU function group. Each of these function blocks contains 8 options for routing binary
channels.
Function-Group Types
6.4 Function-Group Type Phasor Measurement Unit (PMU)
166 SIPROTEC 5, Fault Recorder, Manual
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
