NOTE
An exclamation point appears in the project tree before and during the routing and indicates an inconsis-
tent routing. At the end of an error-free routing, the exclamation point disappears automatically. If the
exclamation point does not automatically disappear, you can remove it by clicking the Check consistency
icon.

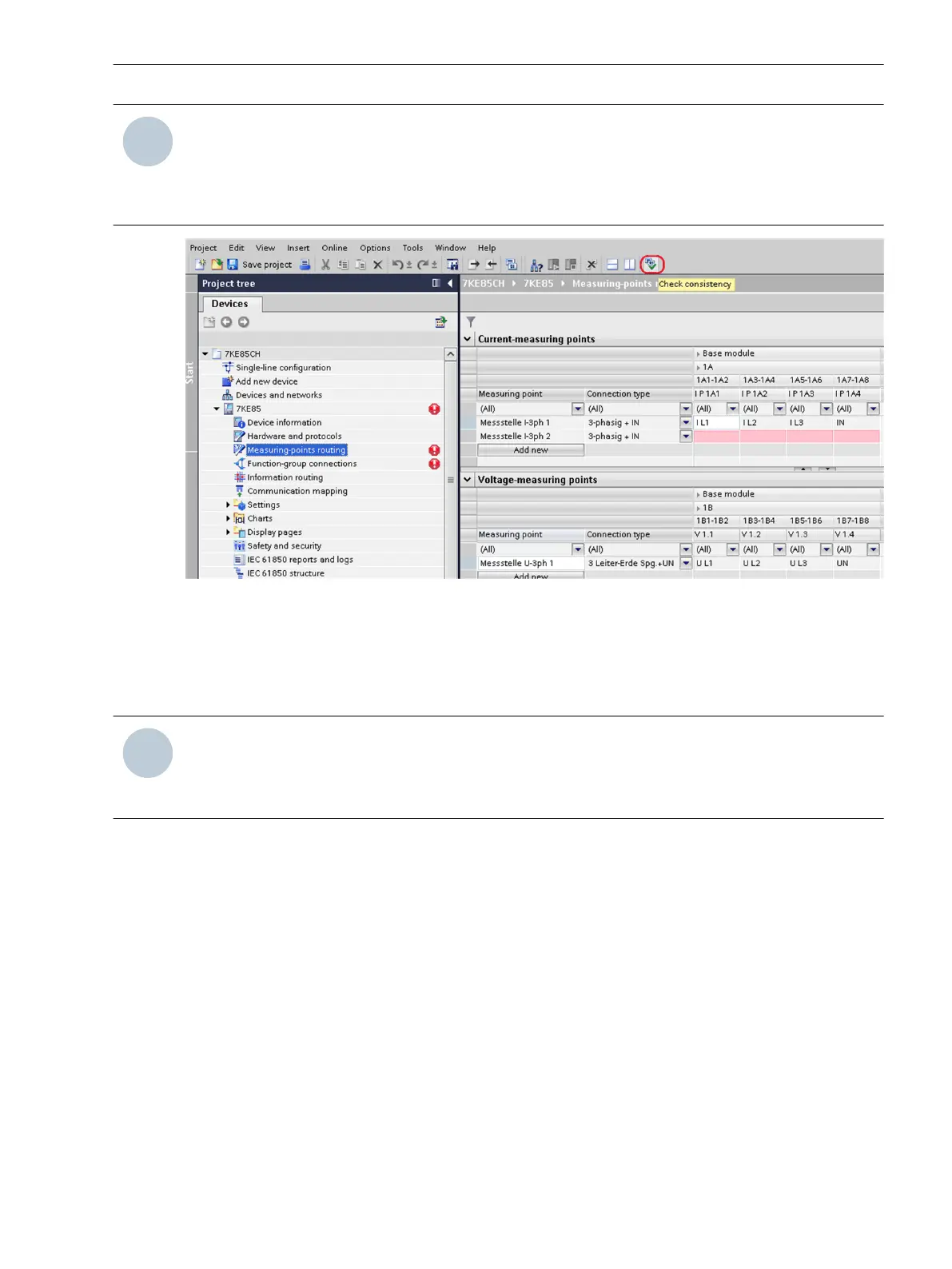

[scconsis-310812-01.tif, 1, en_US]
Figure 7-7 Checking Consistency
Instantiate Function Groups, Functions, and Function Blocks from the DIGSI 5 Library
²
Using Drag & Drop, move the voltage and current function groups from the DIGSI 5 library into the
project tree.
i
i
NOTE
This procedure also applies for the recorder functions Slow-scan recorder and Continuous recorder and
for the measured values Recorder routing with their associated measured value function blocks Routing f,
Routing I, Routing pwr and Routing V).
Fault Recorder
7.1 Introduction to DIGSI 5
SIPROTEC 5, Fault Recorder, Manual 219
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
