[scrouins-280113-01.tif, 1, en_US]

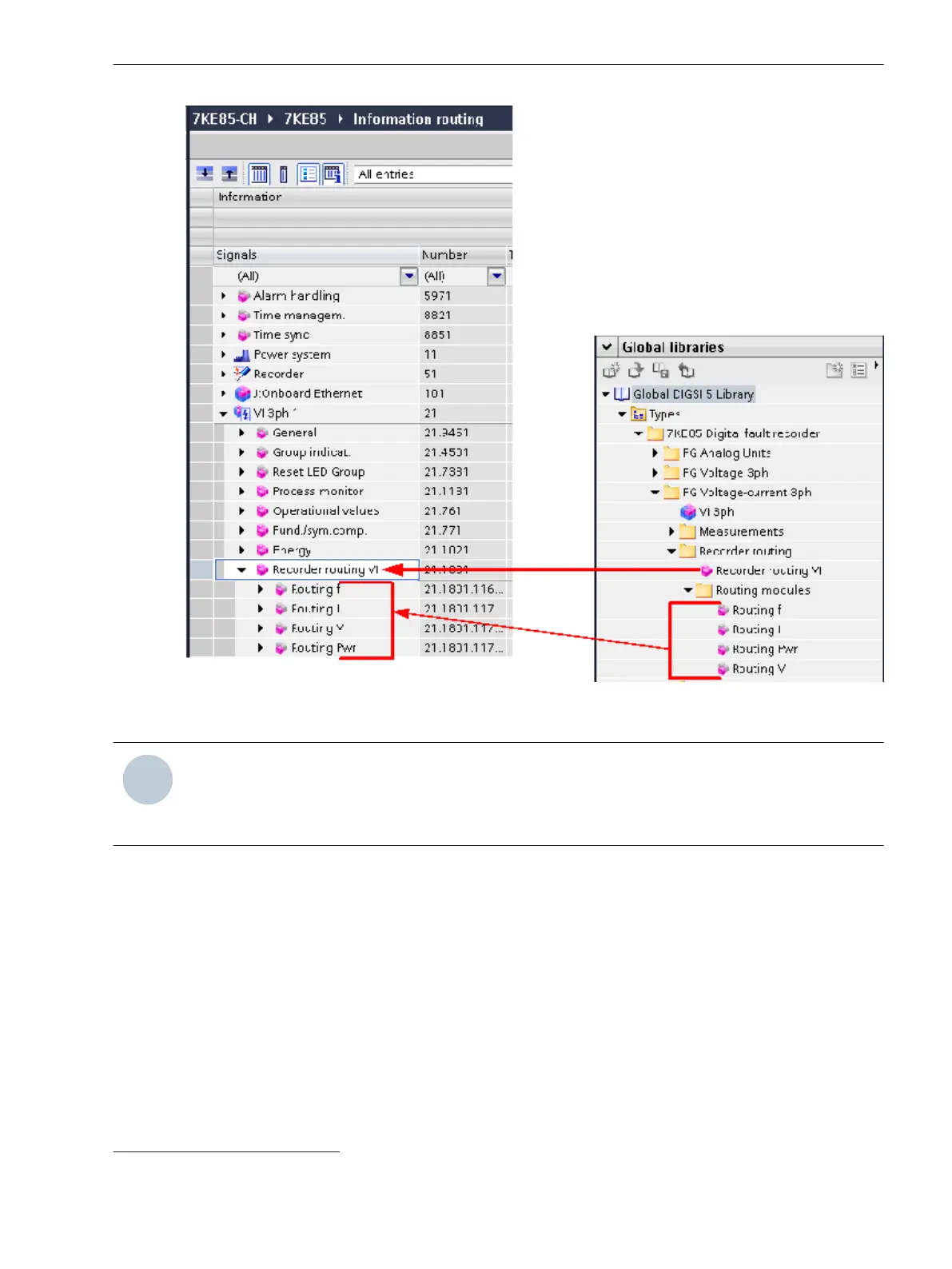

Figure 7-9
Instantiating Recorder Routing with the Respective Function Blocks
i
i
NOTE
Use a maximum of 57 characters
5
for the channel name. Do not use either umlauts or special characters,
because these prevent healthy export to SICAM PQS and into file formats such as COMTRADE and PQDIF .
The channel name is truncated if the permissible length is exceeded.
Connecting Function Groups
You can use the Function-group connections matrix to edit the connections between the function groups
and measuring points.
²
Connect each measuring point with the corresponding function group in the Connecting measuring
points with function group window.
If the cells of the measuring point line and the target column is light gray, then the measuring point is
routed to the column.
If the joint cell is dark gray, the measuring point cannot be routed to the relevant column.
If the cell is red, this indicates an inconsistency. You must route the measuring point to the affected
column.
²
Click X (Routed) in the context menu in the red markers.
An X is entered into the cell. The measuring point is not connected to the function group.
5
128 initial characters of the US-ASCII/ANSI character set
Fault Recorder
7.1 Introduction to DIGSI 5
SIPROTEC 5, Fault Recorder, Manual 221
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
