are stored and combined into a single file. That is to say, that all 10-minute intervals, 144 files will be replaced
by a single file and all 2-hour intervals, 12 files will be replaced by a single file.
The PQDIF files will be filed according to the following nomenclature:
•
Subdirectory: Identification of the continuous recorder and the recorder ID: /Cont_PQDif_fffe
•
ID of the recording (for example, /00000001)
•
ID of the recorder (for example, fffe)
•
Date Year/Month/Day: YYYYMMTT (for example, 20130814)
•
Time of the recording hour/minute/second: hhmmss (for example, 211016)
Example of a PQDIF file path: /Cont_PQDif_fffe/00000001_fffe_20130814_211016.pqd
[leIEC_Browser-270813, 1, en_US]

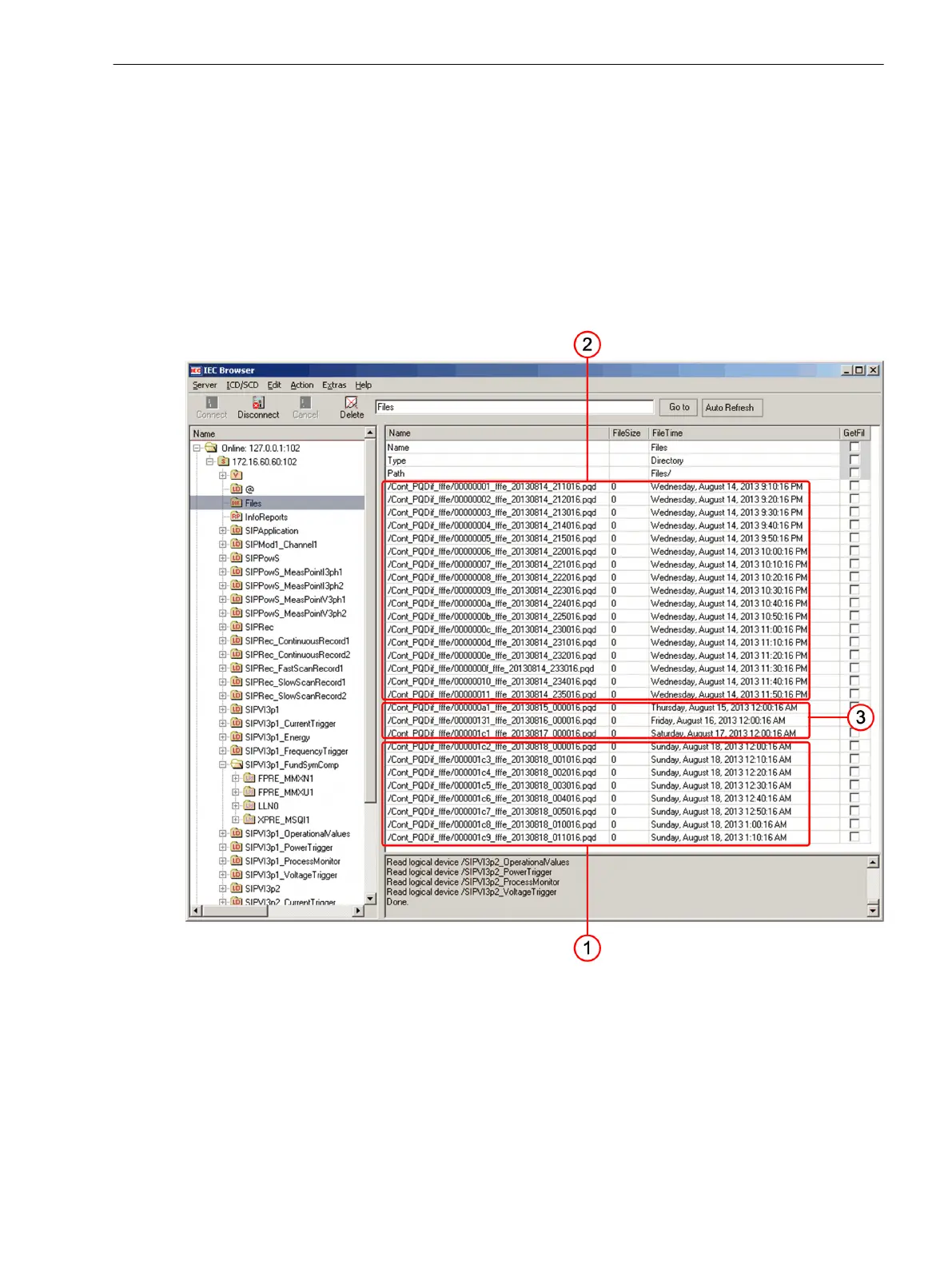

Figure 7-18
Organization of PQDIF Files
(1) Recording of the current day
(2) Recording of the oldest day
(3) One file per recording day
Fault Recorder
7.1 Introduction to DIGSI 5
SIPROTEC 5, Fault Recorder, Manual 229
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
