[dwmintri-140213-01.tif, 1, en_US]

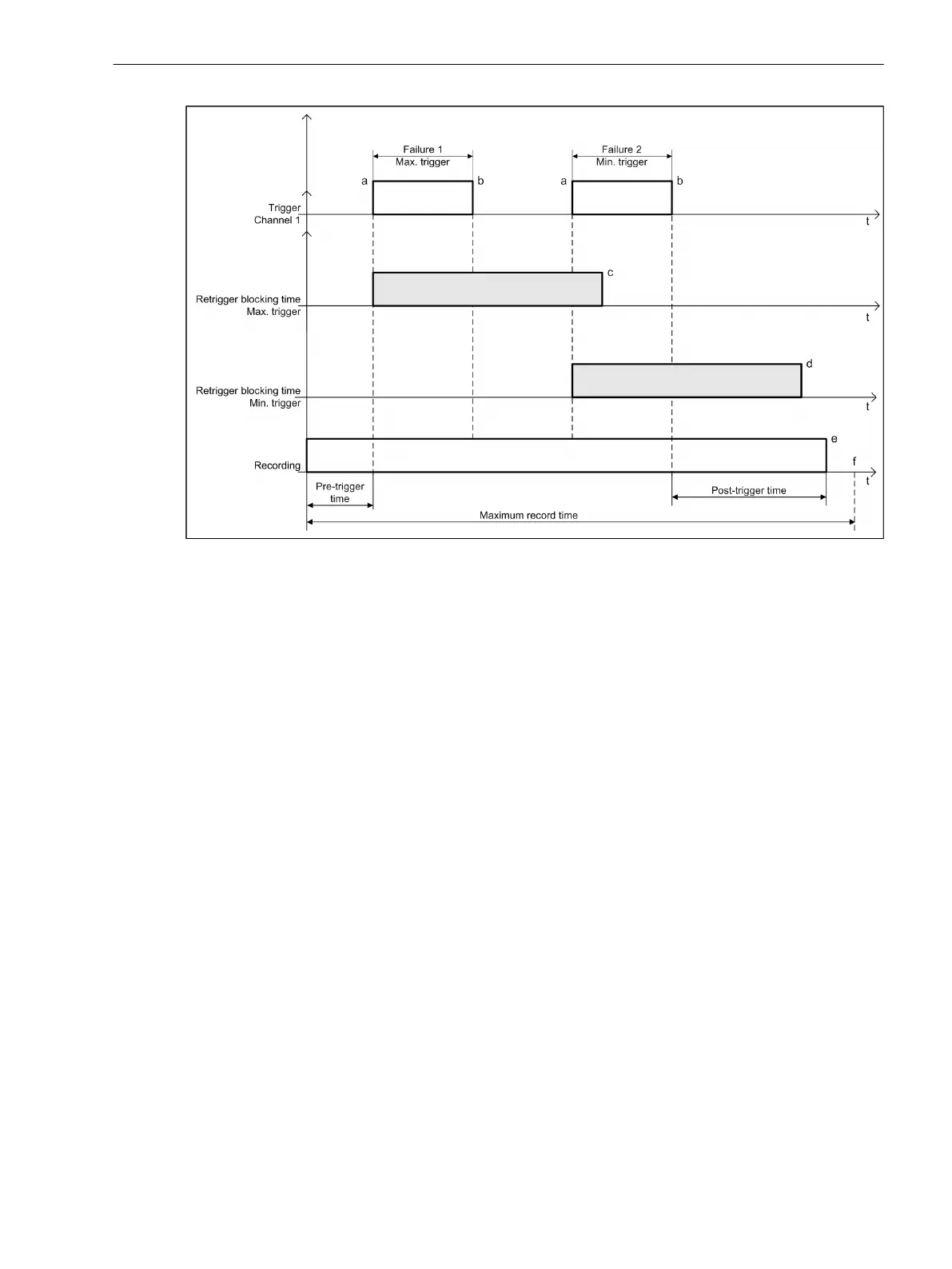

Figure 7-41
A New Trigger Reason (Min. Trigger) Extends the Fault Record
a Trigger rising edge
b Trigger falling edge
c End of the retrigger blocking time (Max. trigger)
d End of the retrigger blocking time (Min. trigger)
e End of the post-trigger time
f End of the maximum record time
t Time line
If the identical trigger reason (for example, Iph rms: C) occurs again during the retrigger blocking time, the
retrigger blocking time restarts. The fault record is not extended. A new recording is only possible once a
trigger occurs outside the expired retrigger blocking time (see the following figure).
Fault Recorder
7.2 Function-Group Type Recorder
SIPROTEC 5, Fault Recorder, Manual 259
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
