Structured representation and structured access to archive data
•
Cumulative summary of all PQ data in a state criterion (PQ index)
•
Spatially distributed options for the monitoring and evaluation of PQ measured data
•
Archiving of PQ data (measured values, fault records, PDR records)
•
Different communication standards and interfaces for device connection and for the acquisition of
process data (Ethernet TCP/IP, serial interfaces)
•
Automatic import from third-party devices in PQDIF and COMTRADE format
•
Ethernet network monitoring, for example, based on SNMP
•
Data exchange via OPC for the connection to office desktop computers
•
Secured data access via a user management
•
Redundant structure of the system on different levels
•
Test and diagnostic functions
•
Export of fault records via COMTRADE
•
Export of PQ data via PQDIF
•
Notification via e-mail and SMS
[dw7keebe-161012-01.tif, 2, en_US]

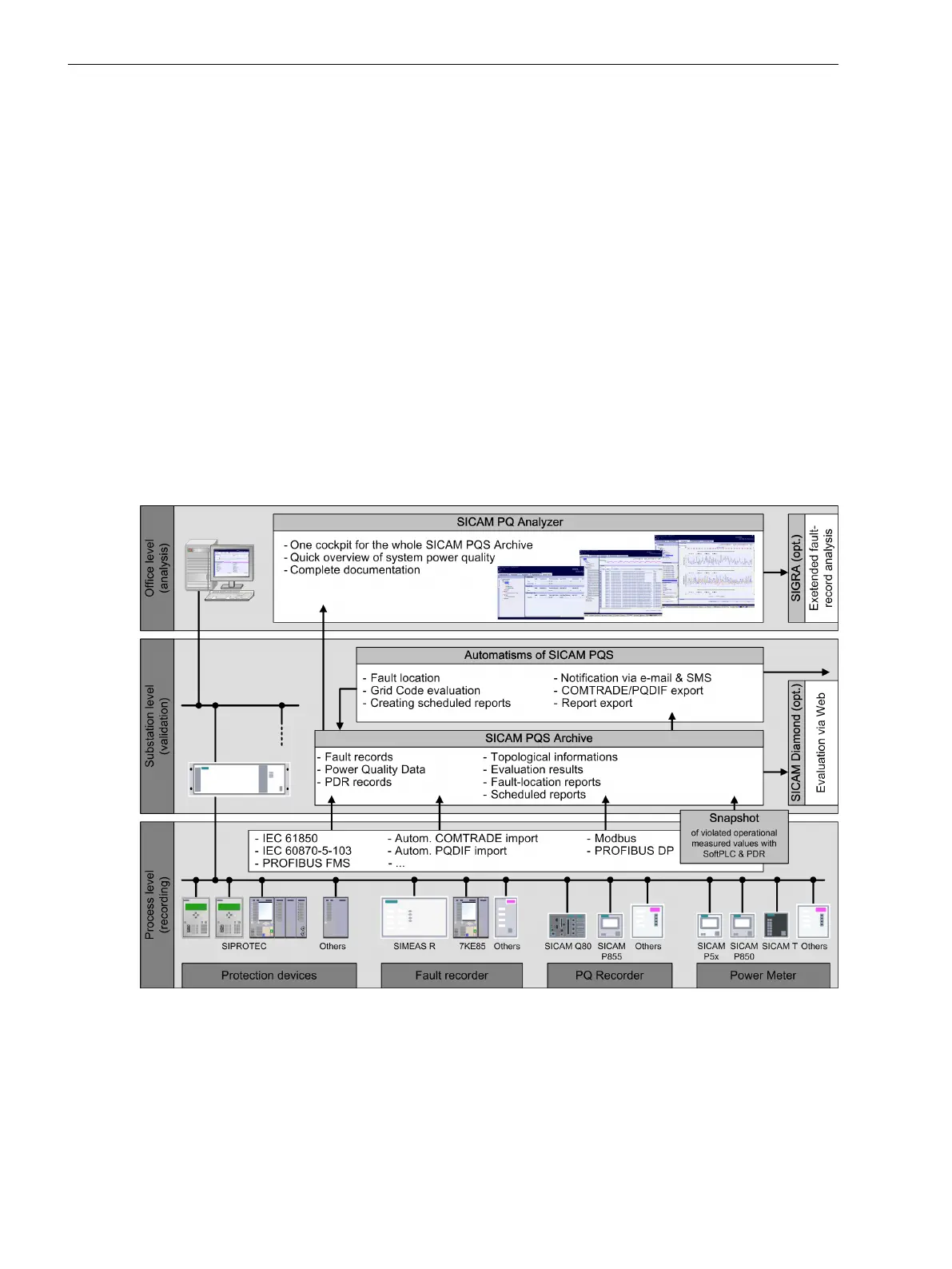

Figure 1-1
Overview of the Advantages of SICAM PQS
Architecture
SICAM PQS is suitable for varied use in energy supply or industrial facilities due to its modular system struc-
ture.
Introduction
1.4 Parameterization and Analysis Software
26 SIPROTEC 5, Fault Recorder, Manual
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
