Thus, SICAM PQS can be set up in different variants:
•
Full Server with (source) archive and SICAM PQ Analyzer
•
System with
– Full servers with (Source) archive
– SICAM PQ Analyzer Clients
•
System with
– Full servers
– Archive computers with (Collector) archive
– SICAM PQ Analyzer Clients
The number of components which can be used in a system depends on the individual license.
(Source) Archive
The Full Server collects PQ measured data and fault records from connected devices and stores them in its
local (source) archive. This archive data can be directly evaluated by one or several SICAM PQ Analyzer(s).
(Collector) Archive
In distributed systems with one or several Full Servers, the data in the (source) archives is collected by the
SICAM PQ Analyzer Collector and stored in a central (Collector) archive on an archive computer. This archive
data is evaluated by one or more SICAM PQ Analyzer(s).

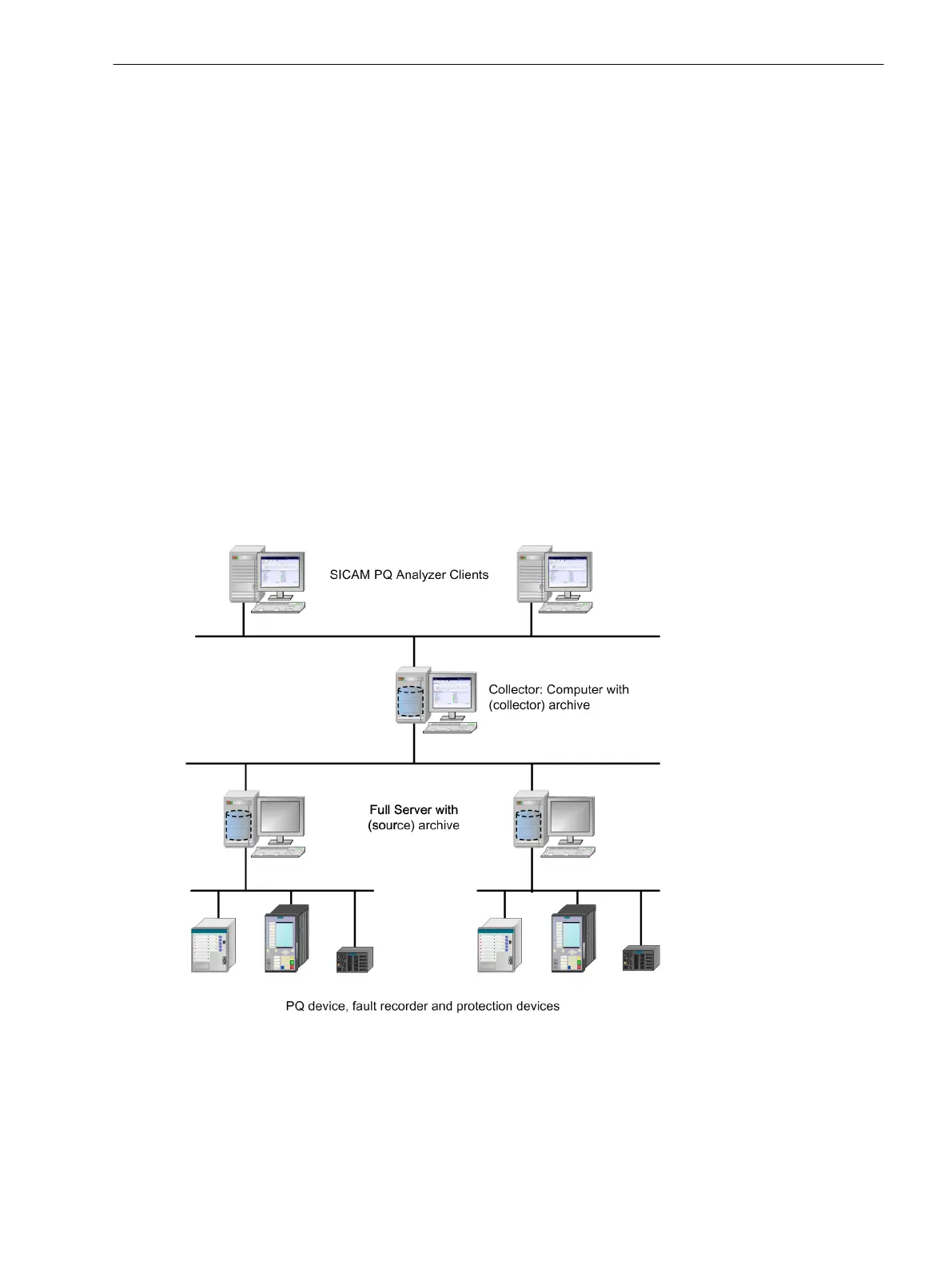

[dwcollec-151012-01.tif, 1, en_US]
Figure 1-2
Configuration Options with SICAM PQS System with Full Servers, SICAM PQ Analyzer Clients
and (Collector) Archive
Introduction
1.4 Parameterization and Analysis Software
SIPROTEC 5, Fault Recorder, Manual 27
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
