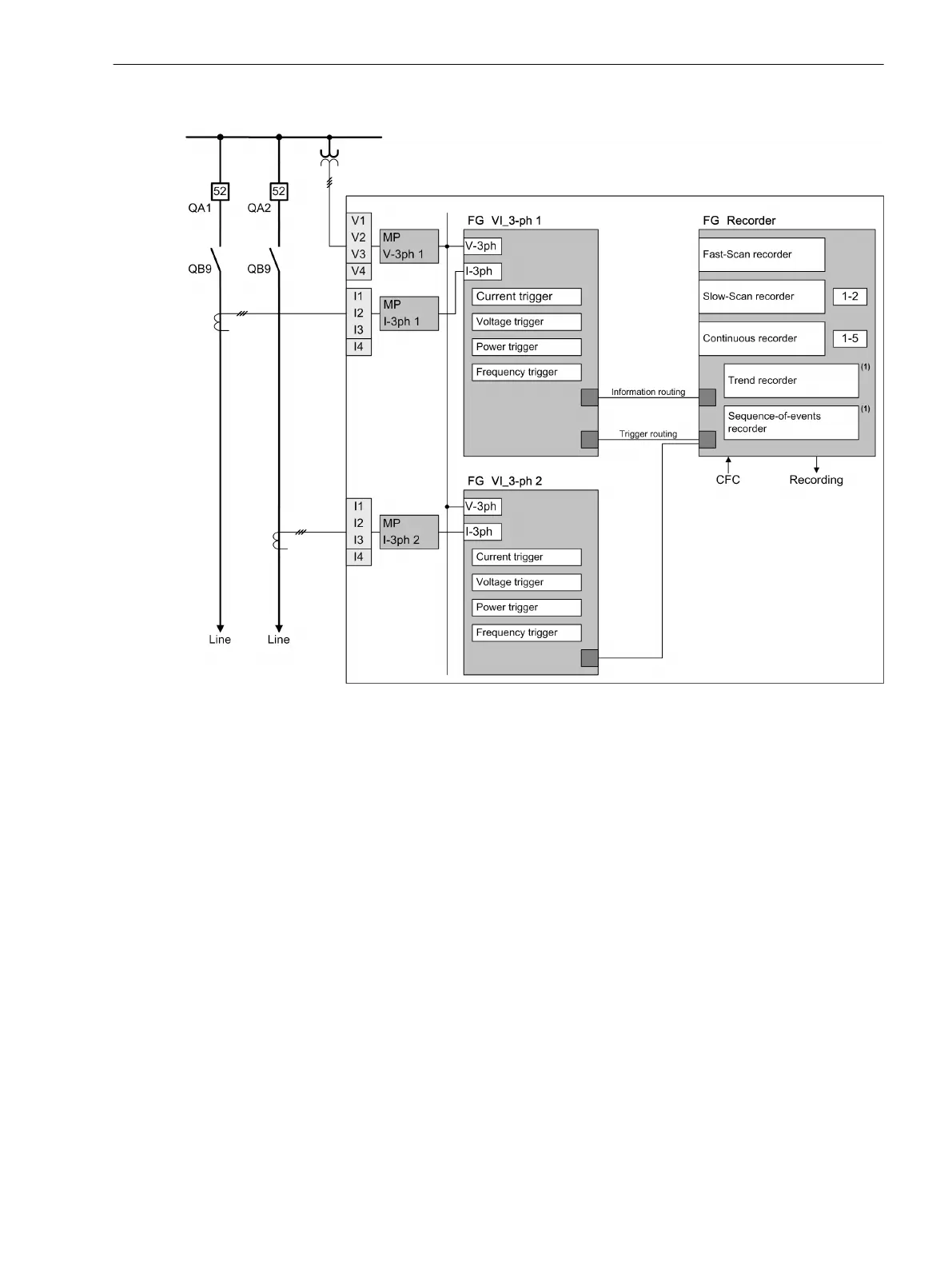

Application Example: Fault Recorder for Several Feeders
[dwrecfee-031212-01.tif, 2, en_US]
Figure A-17
Application Example: Fault Recorder for Several Feeders
FG Function group
MP Measuring point
CFC Continuous Function Chart
QA Circuit breaker
QB Disconnector
(1) Not available yet
Appendix
A.6 Application Examples of the Fault Recorder
