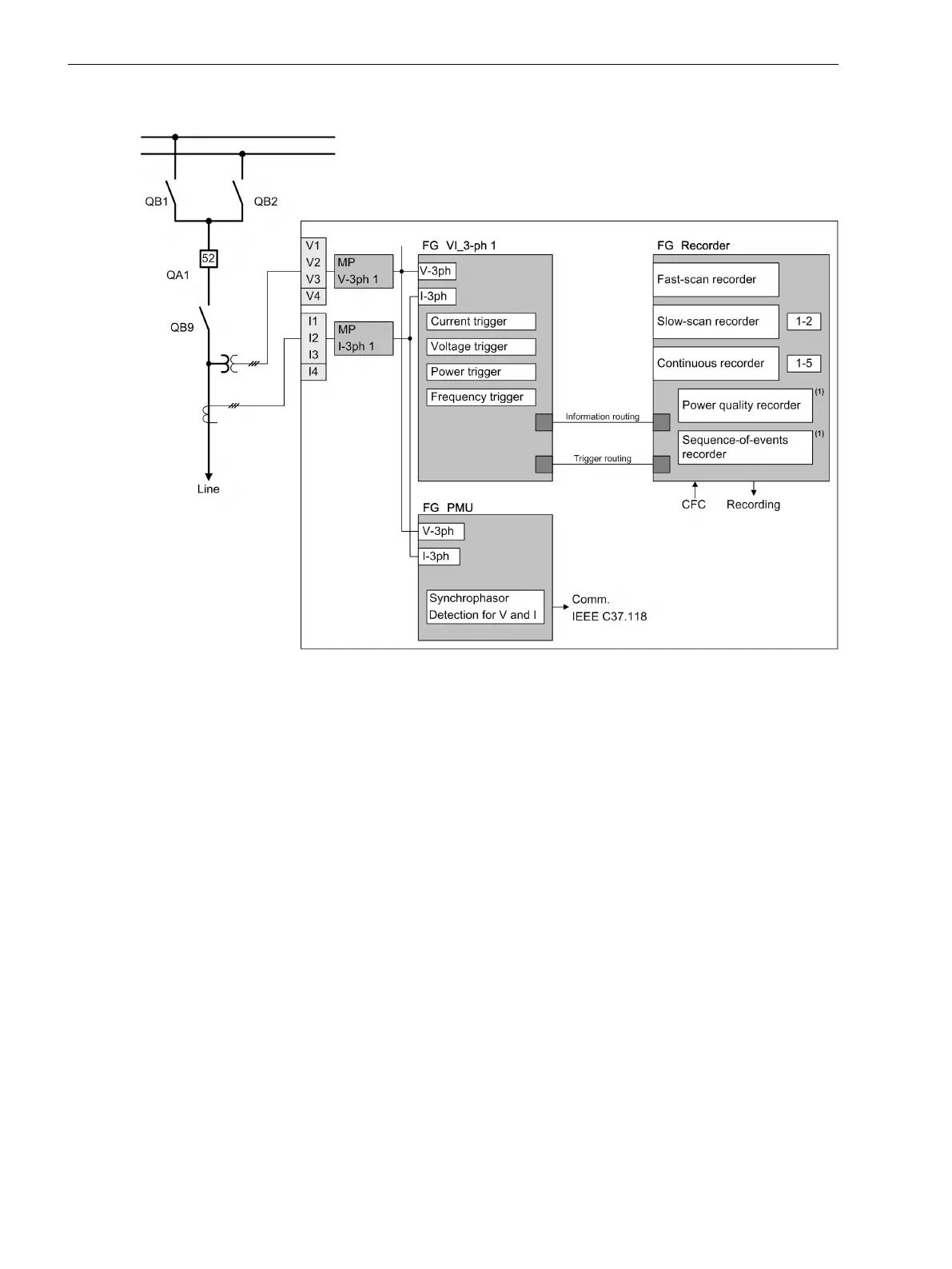

Application Example: Fault Recorder with PMU
[dwrecpmu-031212-01.tif, 1, en_US]
Figure A-18
Application Example: Fault Recorder with PMU
FG Function group
MP Measuring point
CFC Continuous Function Chart
QA Circuit breaker
QB Disconnector
PMU Phasor Measurement Unit
(1) Not available yet
