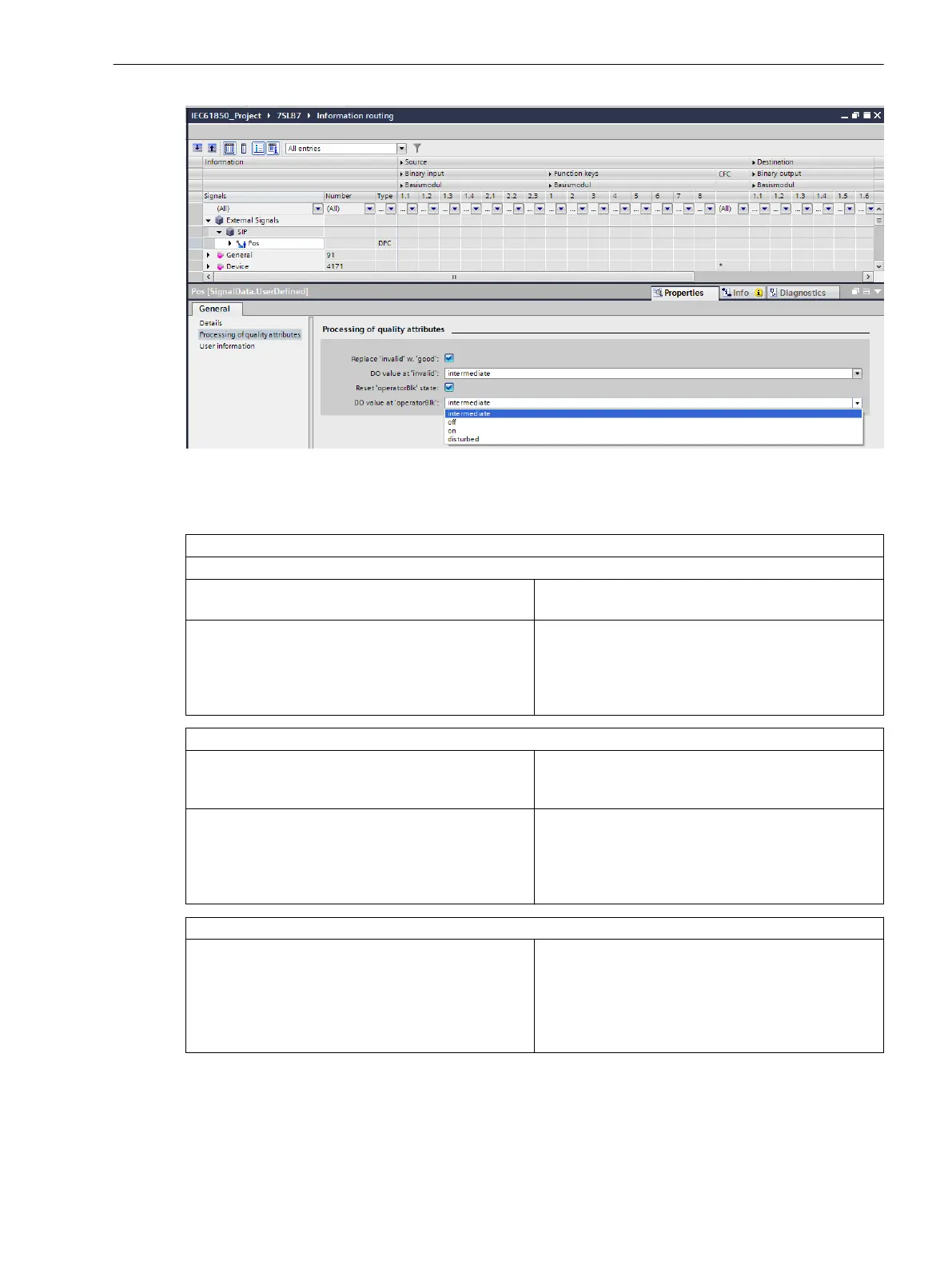

Figure 3-27 Influence Option When Linking a DPC Type Data Object
The setting options work for the device receiving the data.
Quality Attribute: Validity
The validity values reserved and questionable are replaced at the receiving end by the invalid value.
•
Check box is not set.
•
Check box is set and receipt of Validity =
good
The validity attribute and data value are forwarded
without change.
Check box is set and receipt of Validity = invalid is
set (also applies to values reserved and ques-
tionable
).
•
The validity attribute is set to
good and
processed further using this value.
•
The data value is set to the defined substitute
value and processed further using this substitute
value.
Quality Attribute: OperatorBlocked (opBlk)
•
Check box is not set.
•
Check box is set and received OperatorBlocked
= FALSE
The OperatorBlocked attribute and data value are
forwarded without change.
Check box is set and received OperatorBlocked =
TRUE
•
The OperatorBlocked attribute is set to
FALSE
and processed further using this value.
•
The data value is set to the defined substitute
value and processed further using this substitute
value.
Interaction of the Quality Attribute Validity and OperatorBlocked
OperatorBlocked check box is set and receipt of Oper-
atorBlocked = TRUE
Regardless of whether the validity check box is set or
not, and regardless of the current validity, the validity
attribute is set to good and the substitute value of
the OperatorBlocked data object is set. That is, the
OperatorBlocked settings overwrite the Validity
settings.
System Functions
3.3 Processing Quality Attributes
SIPROTEC 5, Fault Recorder, Manual 73
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
