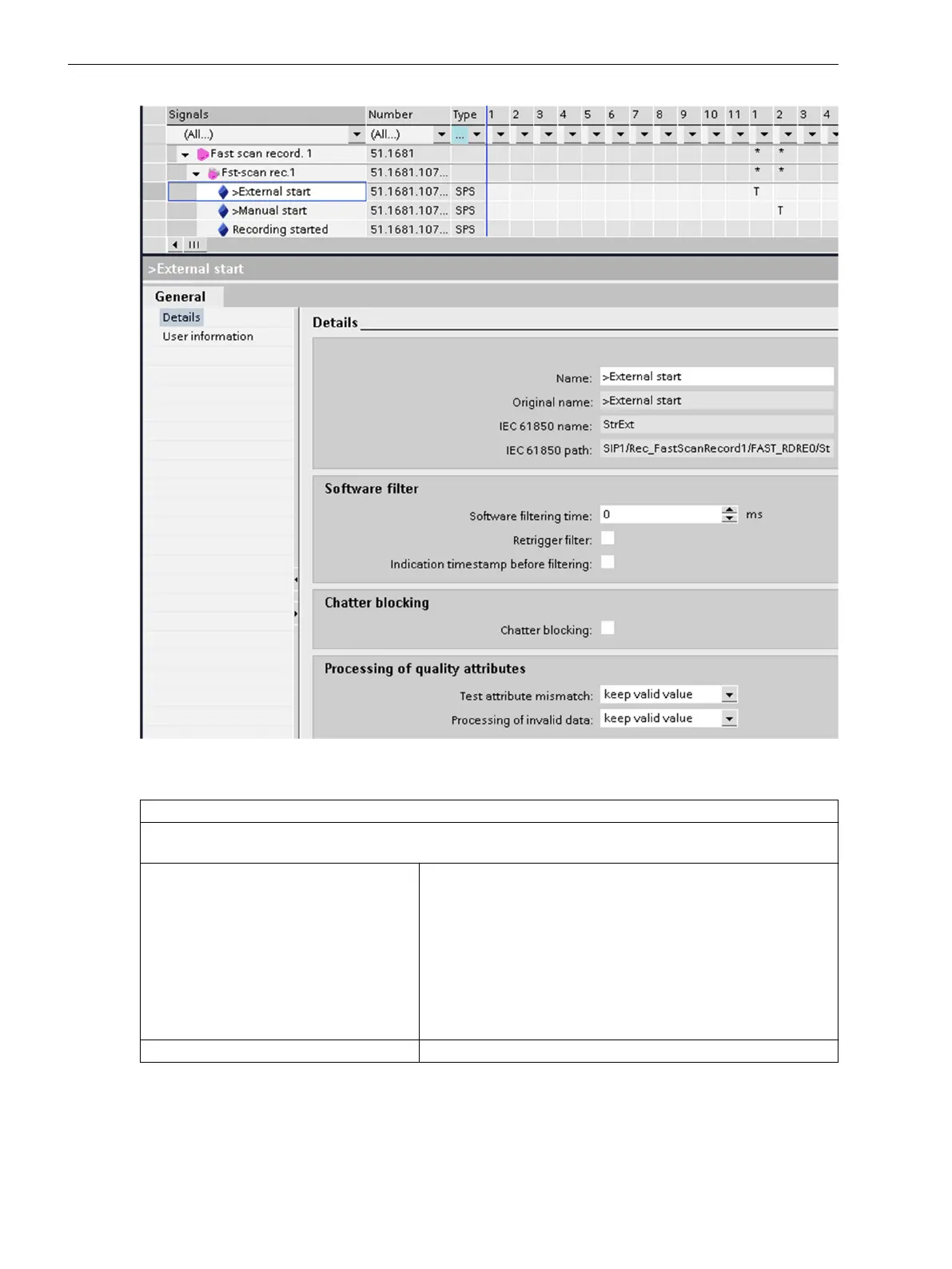

Figure 3-32
Influence Options for a Binary Input Signal (SPS Input Signal)
Quality Attribute: Validity
The Validity attribute can have the values good or invalid (reserved and questionable were already
replaced at the input end of the device by the value invalid ).
The input signal source is invalid .
The current data value of the source signal is ignored. You can
select between the following options:
•
Further process last valid data value of the source signal
(this is the default setting with only a few exceptions)
•
Set the binary value to be processed further to 0.
•
Set the binary value to be processed further to 1.
This configuration option is necessary to satisfy different
applications.
The function health switches to Warning.
The input signal source is good .
The source signal data value is processed further.
System Functions
3.3 Processing Quality Attributes
80 SIPROTEC 5, Fault Recorder, Manual
C53000-G5040-C018-5, Edition 11.2017
