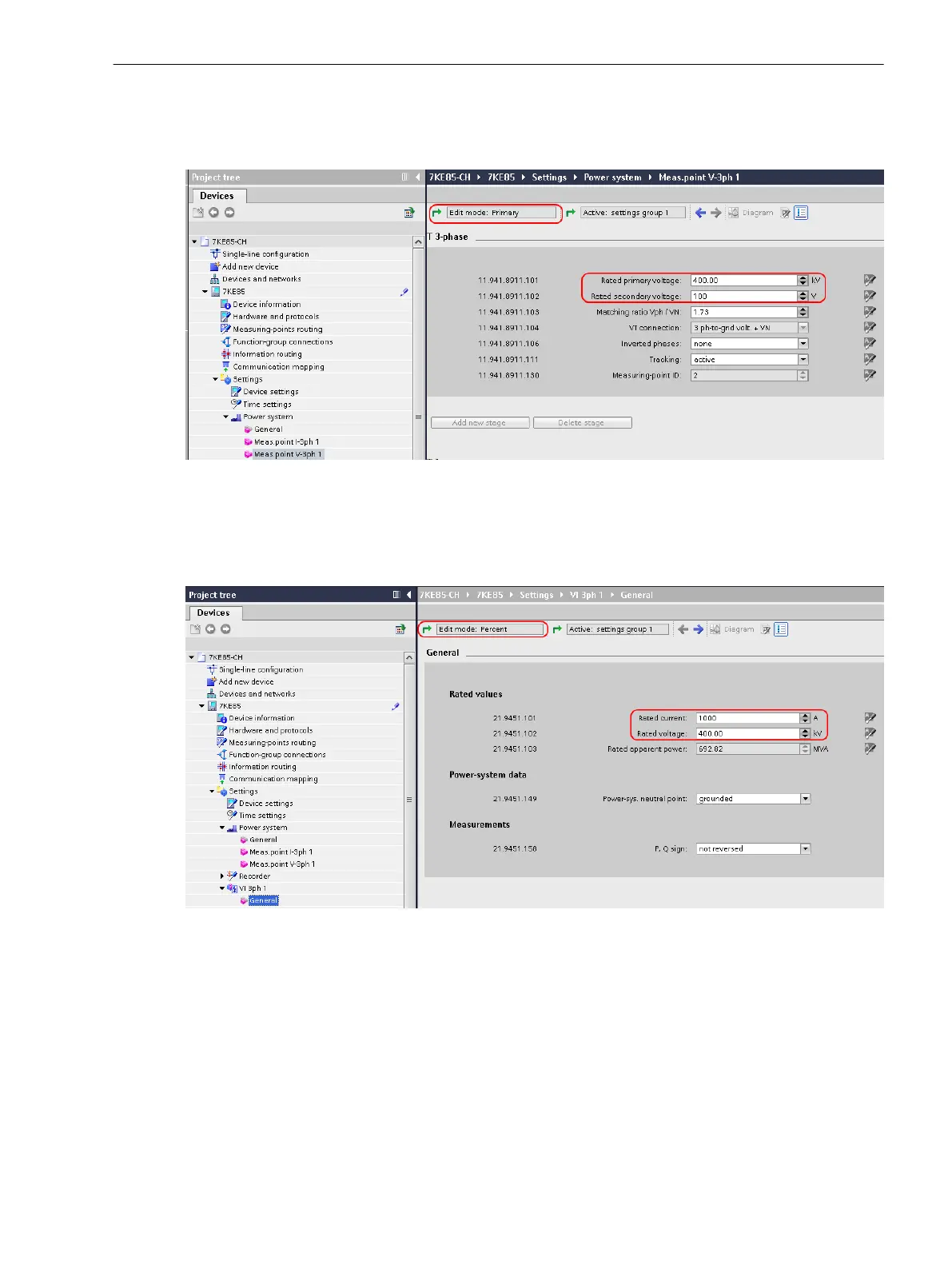

The following figures show the setting sequence in the Primary edit mode. Set the transformer data in the
Power-system data in the Measuring point V 3ph tab. In the example, the current transformer has a trans-
formation ratio of 400 kV/100 V.
[scwanspa-280113-01.tif, 1, en_US]
Figure 3-44 Setting Sheet: Transformer data
You set the rated current and rated voltage in the 3-phase voltage/current function group, in the General
function block (see the following figure). Rated current and rated voltage are the reference parameters for the
percent setting.
[sc7kepro-280113-01.tif, 1, en_US]
Figure 3-45 Reference Data for Percentage Settings
The following figures shows the threshold value of the trigger function V fund. in the primary view with a
filtering time of 80 kV.
System Functions
3.7 General Notes for Setting the Threshold Value of Trigger Functions
SIPROTEC 5, Fault Recorder, Manual 97
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
