Product description
1.2 Fieldbus interfaces
M200D PROFIBUS/PROFINET
12 Manual, 08/2014, A5E01577426A/RS-AA/004
Structure of a PROFIBUS DP network
The figure below illustrates a typical PROFIBUS DP network structure. The DP masters are
integrated in the corresponding device. The S7-400 or S7-300, for example, are equipped
with a PROFIBUS DP interface. The DP slaves are the distributed I/O systems that are
linked with the DP masters via the PROFIBUS DP.

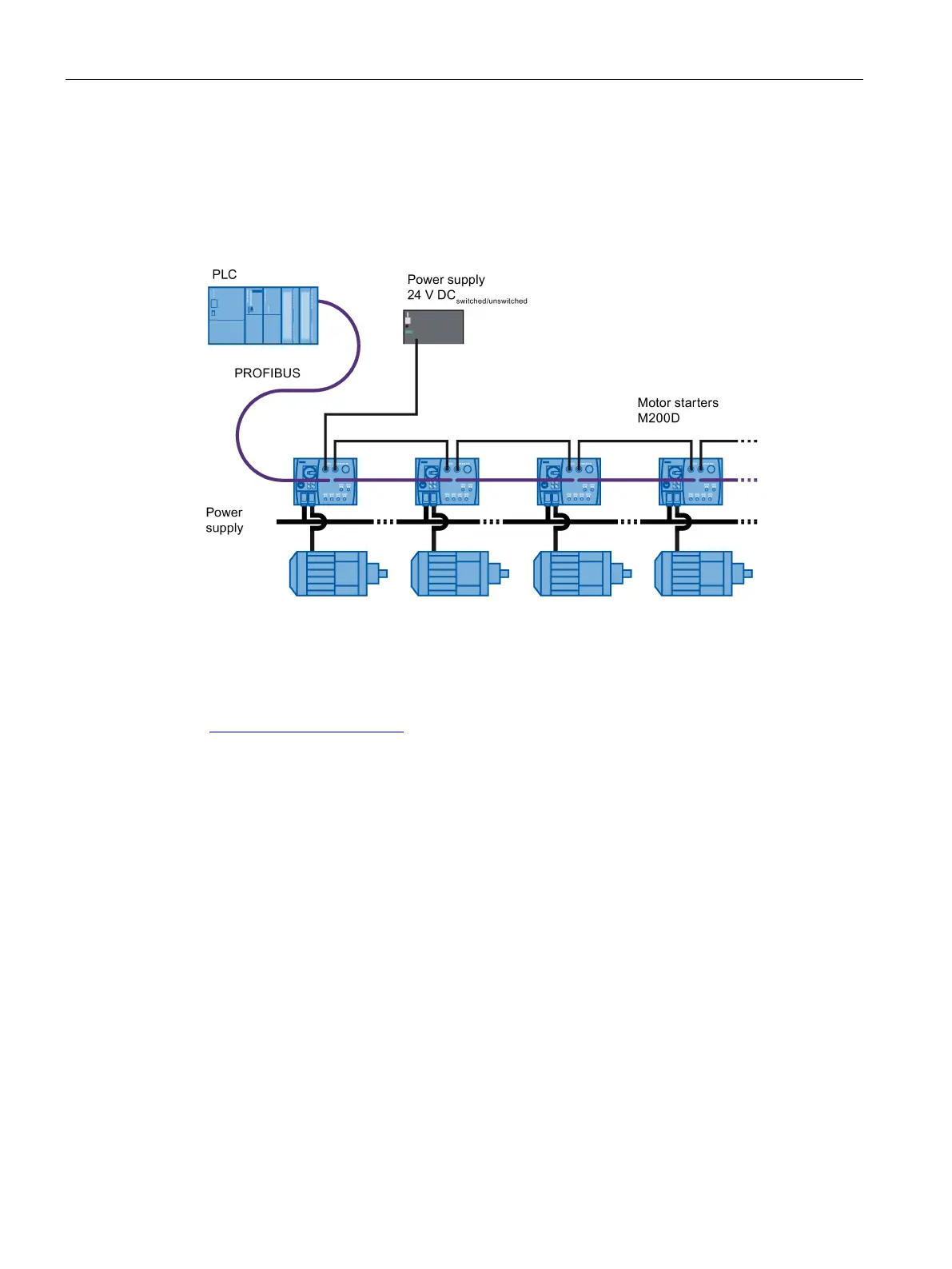

Figure 1-2 Typical structure of a PROFIBUS DP network
Further information on PROFIBUS can be found on the Internet
(www.siemens.com/profibus).
