Simplex 4100U Installation & Maintenance

7-2
Make sure these guidelines are accounted for before wiring:
• All field wires must be 0.75 mm
2
or greater and comply with AS1670.1 and the
wiring code.
• Conductors must test free of all grounds.
• All wiring must be done using copper conductors only, unless noted otherwise.
• If shielded wire is used,
- the metallic continuity of the shield must be maintained throughout the
entire cable length.
- the entire length of the cable must have a resistance greater than 1 Megohm
to earth ground.
• Underground wiring must be free of all water.
• In areas of high lightning activity, or in areas that have large power surges, the
2081-9027 Transient Suppressor should be used on monitor points.
• Wires that run in plenum should be in conduit.
• A system ground must be provided for earth detection and lightning protection
devices. This connection must comply with approved earth detection.
• Only system wiring should be run together in the same conduit.
• Use supplied ferrite beads with all SPS field wiring including the Aux 24V.
Loop wires twice through the supplied ferrite bead(s) as shown in Figure 7-1.
(Extra can be ordered as SX0005.)

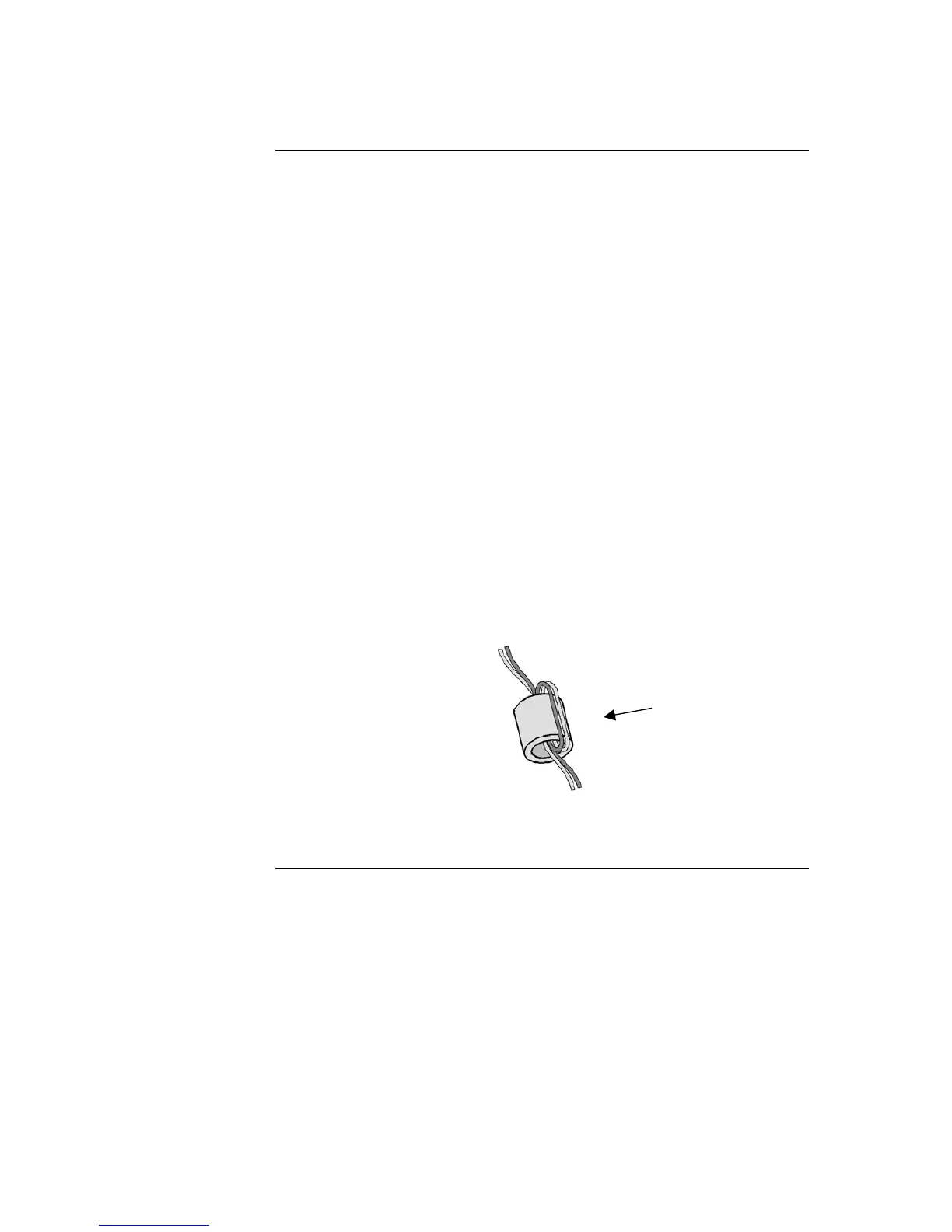

Figure 7-1. The Ferrite Bead (SX0005)
Continued on next page
General Field Wiring Guidelines
General Guidelines
Wires go twice
through (1 turn)

Simplex 4100U Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Display	LCD
Power Supply	120/240 VAC, 50/60 Hz
Max Signaling Line Circuits (SLC)	2
Operating Temperature	0°C to 49°C (32°F to 120°F)
Humidity Range	10% to 93% non-condensing
Network Capability	Yes
Communication Protocol	RS-232, RS-485
Battery Backup	24 VDC
NAC Outputs	4
Signaling Line Circuits (SLCs)	2
Power Supply Current	3.0 A
Max Notification Appliance Circuits (NAC)	4
Max Releasing Circuits	4
Max Relay Circuits	4
Communication Ports	RS-232, RS-485
