The 4100-series IDNet card is designed to be mounted on the PDI in a 4100U expansion
cabinet. The card can be mounted on any of the PDI connectors.
Use connector P2, labeled on the back side of the IDNet card, to connect to any of the
eight PDI connectors as shown in the figure below.

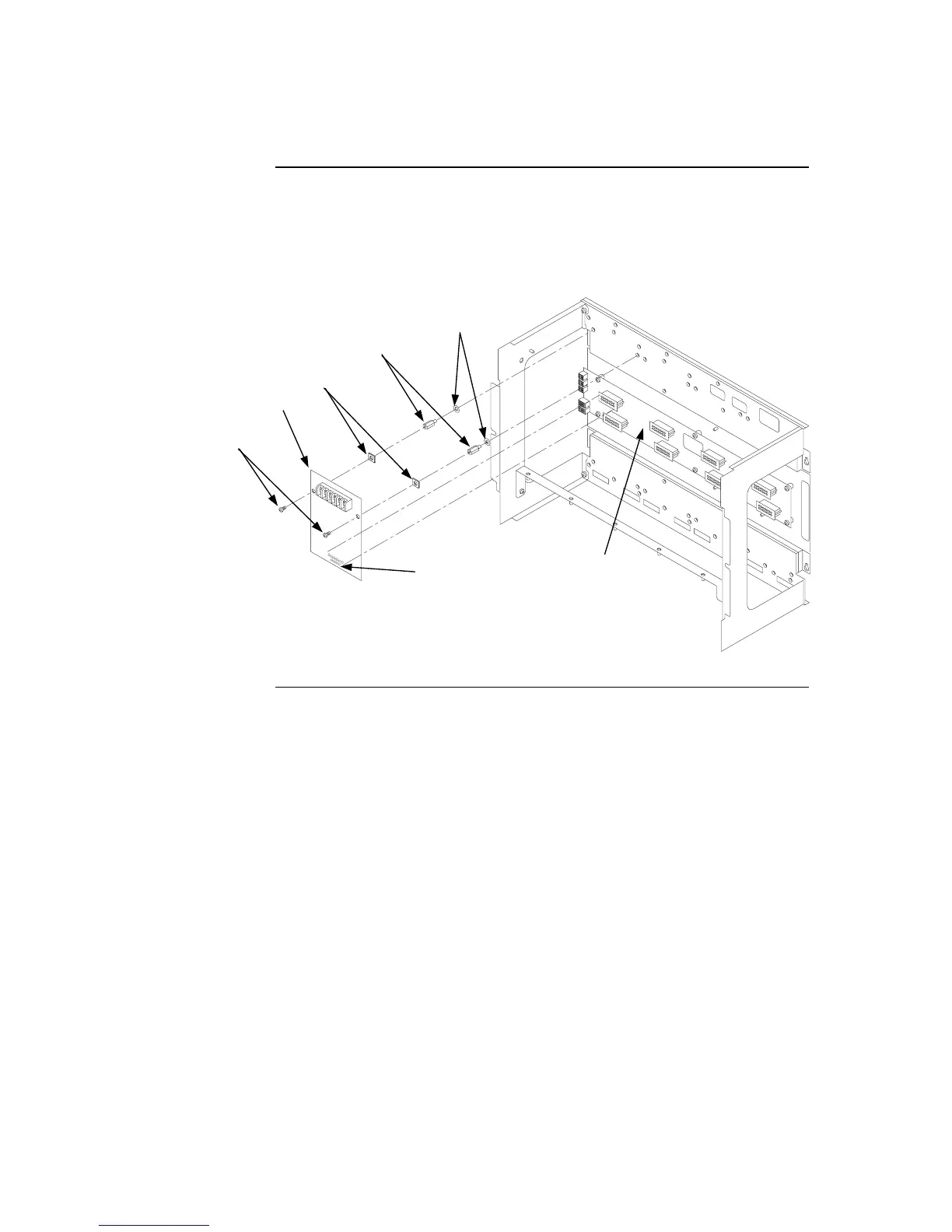

Figure 8-2. Mounting onto the Power Distribution Interface
Installing the IDNet Card onto the PDI
Overview
IDNet CARD
STANDOFFS
#6 SCREWS
WASHERS
PDI CONNECTOR
(reverse side)
PDI
SCREW
RETAINERS

Simplex 4100U Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Display	LCD
Power Supply	120/240 VAC, 50/60 Hz
Max Signaling Line Circuits (SLC)	2
Operating Temperature	0°C to 49°C (32°F to 120°F)
Humidity Range	10% to 93% non-condensing
Network Capability	Yes
Communication Protocol	RS-232, RS-485
Battery Backup	24 VDC
NAC Outputs	4
Signaling Line Circuits (SLCs)	2
Power Supply Current	3.0 A
Max Notification Appliance Circuits (NAC)	4
Max Releasing Circuits	4
Max Relay Circuits	4
Communication Ports	RS-232, RS-485
