Simplex 4100U Installation & Maintenance

1-5
The 4100 internal comms bus may be used to carry data from the CPU in the main cabinet
to expansion equipment in a co-located cabinet. 4100 data from the CPU may be routed to
remote cabinets (RTUs) in a MINIPLEX system by using the external RUI comms bus.
An RUI line, routed from either the CPU Motherboard in the 4100U, or the RUI card in
the 4100, allows the data to travel long distances. Once the RUI line terminates at a
remote cabinet, the TIC (4100U) or RIC (4100) in that cabinet distributes the CPU’s data
to the other modules within the cabinet.
Power has to be supplied locally within each RTU, or routed from the main FIP.

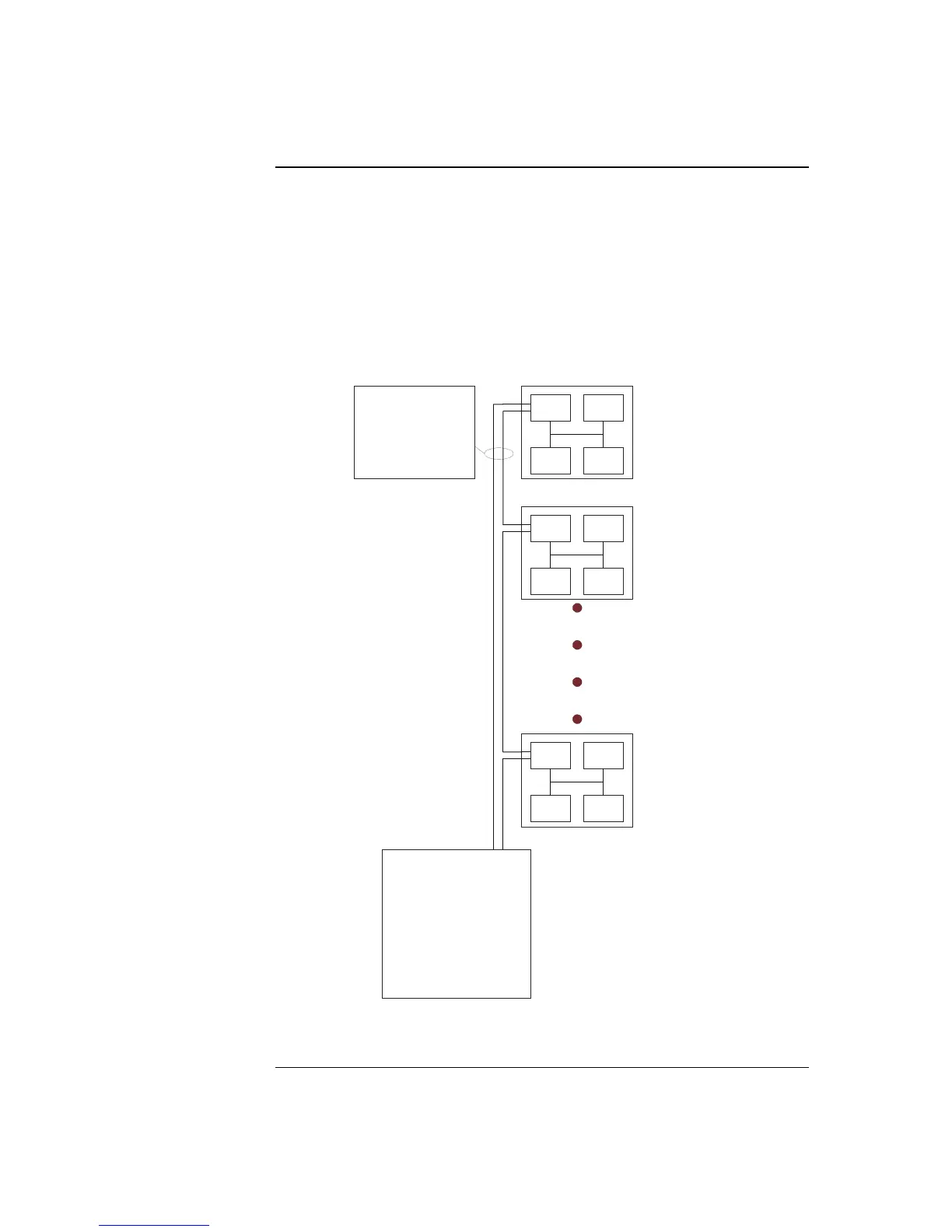

Figure 1-2, below, outlines this process in a typical MINIPLEX setup.
4100U
RUI Risers - 4 MAX (same channel)
(from CPU Motherboard or Remote
Unit Interface Card)
Transponders may be located
further apart (within the 2500'
limit) as called for by the
application requirements.
Risers from 4100U to
Remote Transponders
RUI
9th Floor
Transponder
Unit
6th Floor
Transponder
Unit
3rd Floor
Transponder
Unit
RUI I/F Slave
Slave Slave
RUI I/F Slave
Slave Slave
RUI I/F Slave
Slave Slave
Note:
Although not shown, nested
RUI is supported up to one
level deep.
Figure 1-2. MINIPLEX 4100U System
MINIPLEX Configuration, Continued
RUI Communication

Simplex 4100U Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Display	LCD
Power Supply	120/240 VAC, 50/60 Hz
Max Signaling Line Circuits (SLC)	2
Operating Temperature	0°C to 49°C (32°F to 120°F)
Humidity Range	10% to 93% non-condensing
Network Capability	Yes
Communication Protocol	RS-232, RS-485
Battery Backup	24 VDC
NAC Outputs	4
Signaling Line Circuits (SLCs)	2
Power Supply Current	3.0 A
Max Notification Appliance Circuits (NAC)	4
Max Releasing Circuits	4
Max Relay Circuits	4
Communication Ports	RS-232, RS-485
