Simplex 4100U Installation & Maintenance

3-33
Remote interface cards (RICs) in the transponder cabinets allow for data, power, and
audio interconnections between the 4100 host panel and remote locations. They support
RUI connections in Style 4 and Style 7 wiring configurations.
TB2
LED1
TBL
+COMM
PRIM
+COMM
PRIM
-COMM
-COMM
+COMM
+COMM
24C
24C
PIEZO
CTRL
LED
CTRL
PTT+
PTT-
SHLD
GRN
MIC
WHT

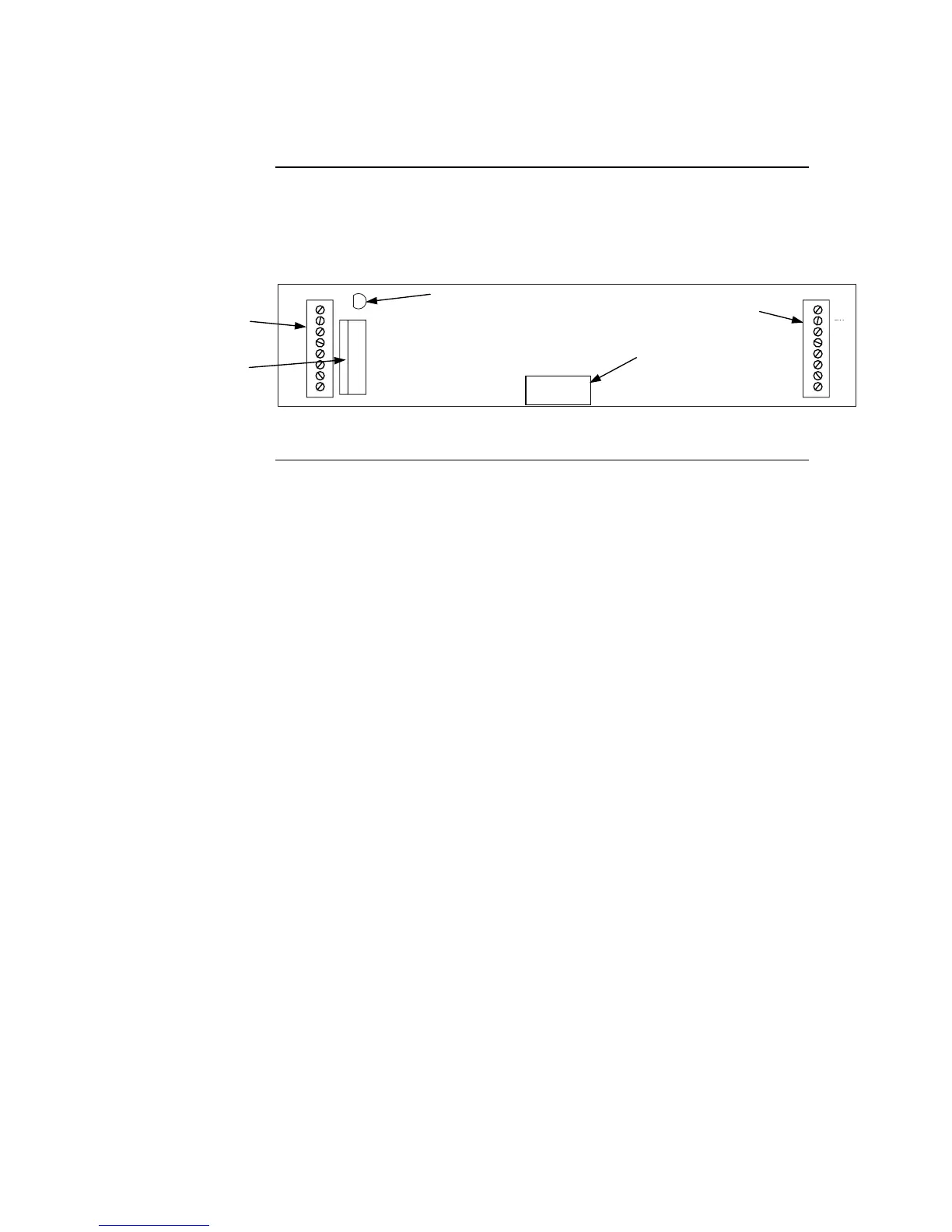

Figure 3-3. The RIC II Card
MINIPLEX System Components (Non-4100U), Continued
The Remote
Interface Card (RIC)
COMMS TROUBLE LED
(LED 1):
Lights if there is a line short
on either primary or
secondary lines, or if both
comms inputs are absent.
POWER/COMM
TERMINAL BLOCK (TB1)
HEADER CONNECTOR
(J1)
SEC
+24 V
+24 V
8
1
PIEZO/MICROPHONE
TERMINAL BLOCK (TB2)
REMOTE MICROPHONE
CONNECTOR (P1)

Simplex 4100U Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Display	LCD
Power Supply	120/240 VAC, 50/60 Hz
Max Signaling Line Circuits (SLC)	2
Operating Temperature	0°C to 49°C (32°F to 120°F)
Humidity Range	10% to 93% non-condensing
Network Capability	Yes
Communication Protocol	RS-232, RS-485
Battery Backup	24 VDC
NAC Outputs	4
Signaling Line Circuits (SLCs)	2
Power Supply Current	3.0 A
Max Notification Appliance Circuits (NAC)	4
Max Releasing Circuits	4
Max Relay Circuits	4
Communication Ports	RS-232, RS-485
