Simplex 4100U Installation & Maintenance

8-5
If a 4100 is upgraded to 4100U, IDNet cards can be fitted to existing 4100 bays by use of
the Interface Card plus bracket. The bracket mounts to the bay as a 4100 card
motherboard does and takes up 1 slot.
Wire detectors and
devices
Connect Comms
and Power with
LM0203
Blue +
3 Black
Blue +
3 Black
White +
3 Black
White +
3 Black
P2 Comms
P3 Power
Set Links
+
-
+
-
+
-
-
-
++
IDNET CARD
A
-
A
+
B
-
B
+
LM0203 to next
IDNet if required
4
"
x
5
"
C
a
r
d
B
r
a
c
k
e
t
IDNET Card plus Interface Part
Number KT0452

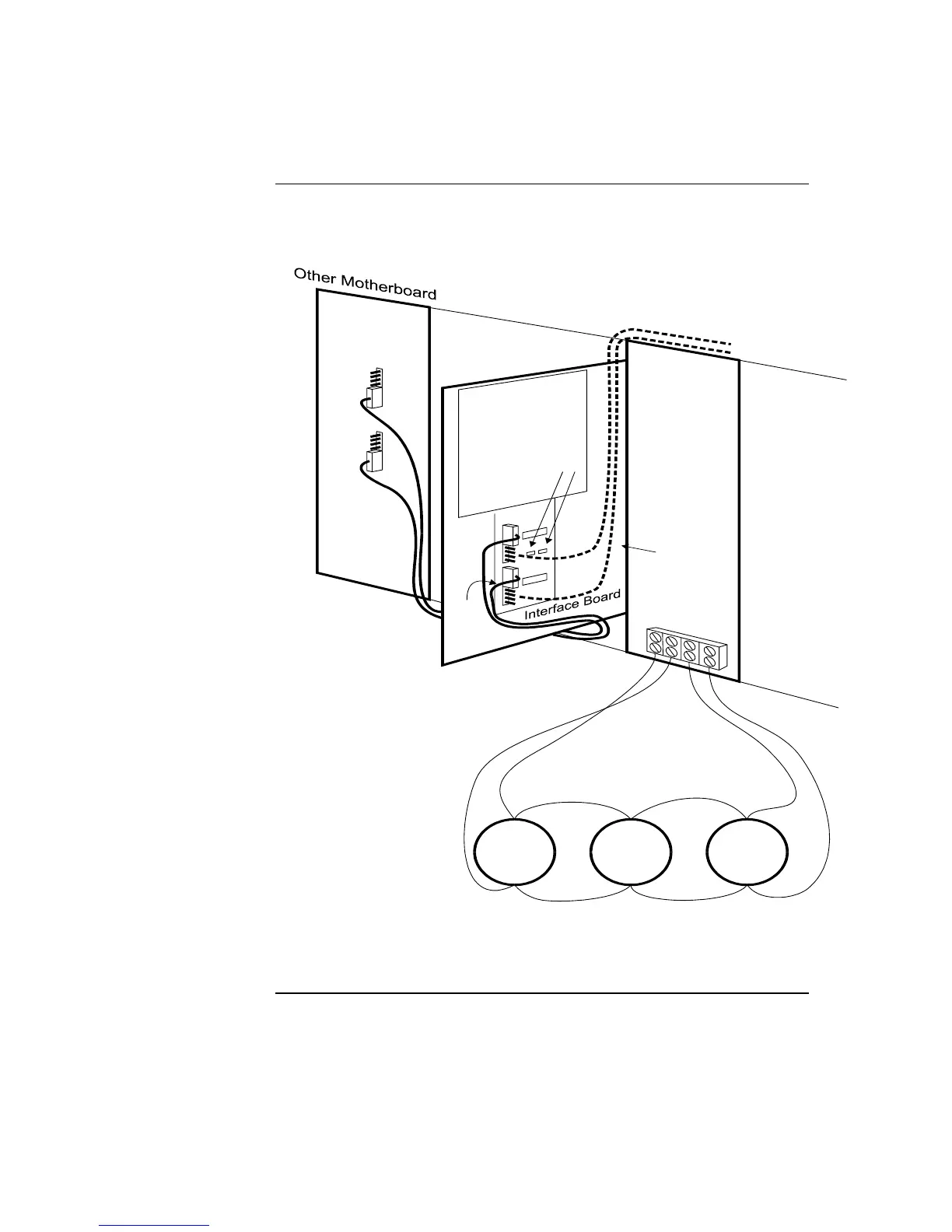

Figure 8-3. Mounting into 4100 (legacy) Bay
Installing the ID-Net into a 4100 Card Bay
Overview

Simplex 4100U Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Display	LCD
Power Supply	120/240 VAC, 50/60 Hz
Max Signaling Line Circuits (SLC)	2
Operating Temperature	0°C to 49°C (32°F to 120°F)
Humidity Range	10% to 93% non-condensing
Network Capability	Yes
Communication Protocol	RS-232, RS-485
Battery Backup	24 VDC
NAC Outputs	4
Signaling Line Circuits (SLCs)	2
Power Supply Current	3.0 A
Max Notification Appliance Circuits (NAC)	4
Max Releasing Circuits	4
Max Relay Circuits	4
Communication Ports	RS-232, RS-485
