Simplex 4100U Installation & Maintenance

2-3
Introduction to FACPs (4100U), Continued
The 4100U Master motherboard that houses the CPU card is central to the 4100U system.
It mounts in the first bay, occupying four inches of space on the right hand side. Neither
has a card address DIP switch (the CPU is address 0).

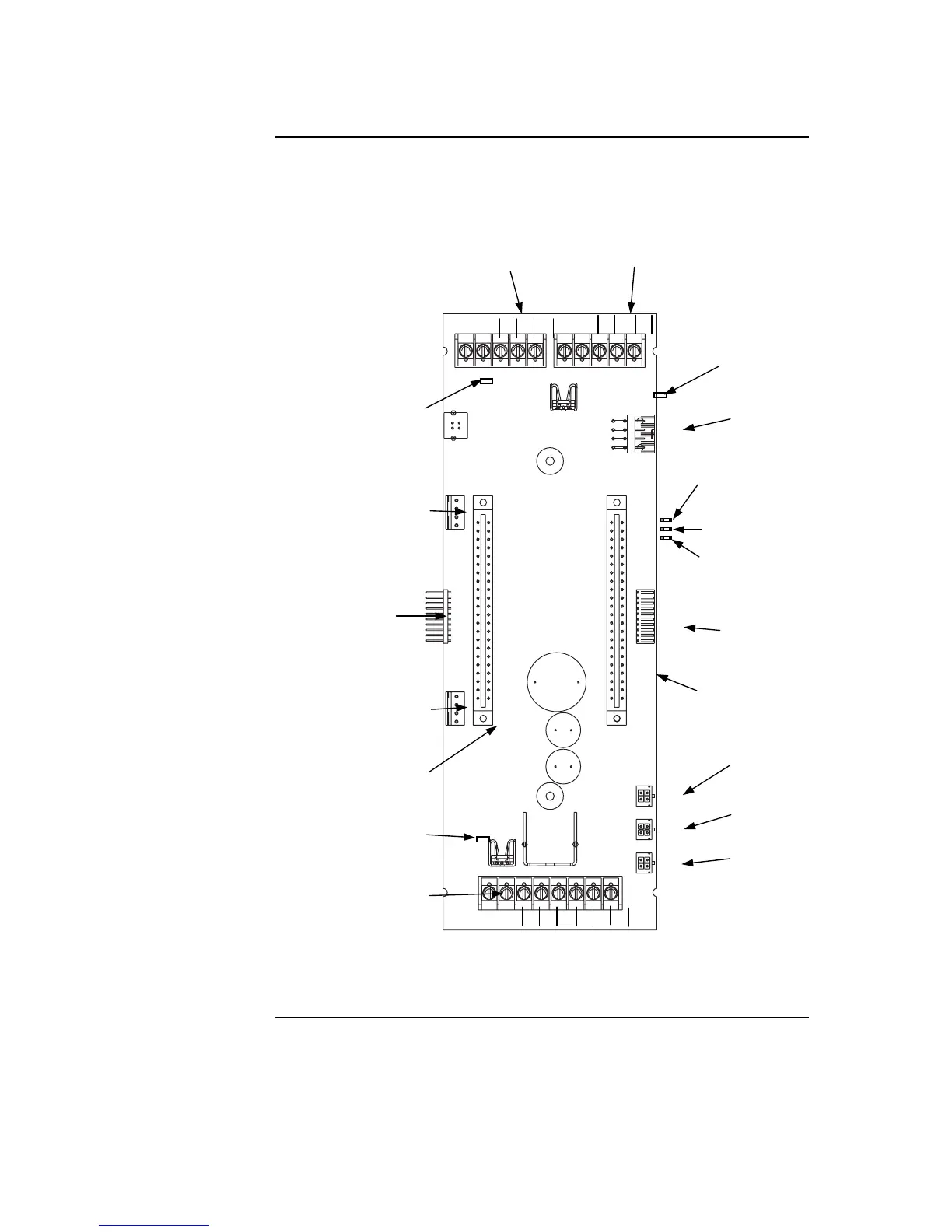

Figure 2-1. Master (CPU) Motherboard (566-227)
Continued on next page
Master Motherboard
RUI TERMINAL BLOCK (TB2)
NETWORK WIRED MEDIA/ RS-232
TERMINAL BLOCK (TB3)
POWER/COMM TO
SYSTEM POWER
SUPPLY (P1)
RUI CLASS A
TROUBLE (LED1)
RUI PRIMARY SHORT
TROUBLE (LED2)
RUI SECONDARY
SHORT TROUBLE
(LED3)
BUS CONNECTOR
(J1) (Reserved for
future use)
POWER/COMMS TO
A
DJACENT BAY (P4)
POWER/COMMS TO
A
DJACENT BAY (P5)
POWER/COMMS TO
A
DJACENT BAY (P6)
NETWORK WIRED MEDIA/ RS-232
TERMINAL BLOCK (TB1)
HEADER CONNECTOR TO
OPTION MOTHERBOARD
(P3)
CPU DAUGHTER CARD
CONNECTOR (J3)
POWER CONNECTOR TO
OPTION MOTHERBOARD
(P7)
COMMS CONNECTOR TO
OPTION MOTHERBOARD
(P8)
NETWORK DAUGHTER CARD
CONNECTOR
(J2)
RUI COMM
EARTH SHIELD
JUMPER (P9)
RS-232/NETWOR
K
CARD PORT 1
JUMPER (P10)
RS-232/NETWOR
K
CARD PORT 2
JUMPER (P11)
XMIT RTS RCV CTS GND
RUI RUI SHLD RUI RUI
B+ B- A+
A
-
1
1
55
XMIT RTS RCV CTS GND 24C RSRVD
PIEZO
1
8

Simplex 4100U Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Display	LCD
Power Supply	120/240 VAC, 50/60 Hz
Max Signaling Line Circuits (SLC)	2
Operating Temperature	0°C to 49°C (32°F to 120°F)
Humidity Range	10% to 93% non-condensing
Network Capability	Yes
Communication Protocol	RS-232, RS-485
Battery Backup	24 VDC
NAC Outputs	4
Signaling Line Circuits (SLCs)	2
Power Supply Current	3.0 A
Max Notification Appliance Circuits (NAC)	4
Max Releasing Circuits	4
Max Relay Circuits	4
Communication Ports	RS-232, RS-485
