The figures below are illustrations of two motherboards apart from the default CPU
motherboard that can be used with the 4100 NIC.
• The 565-274 Master Motherboard holds two daughter cards: the 4100 master
controller card and the 4100 NIC.
• The 565-275 Class B Motherboard holds the 4100 NIC by itself.

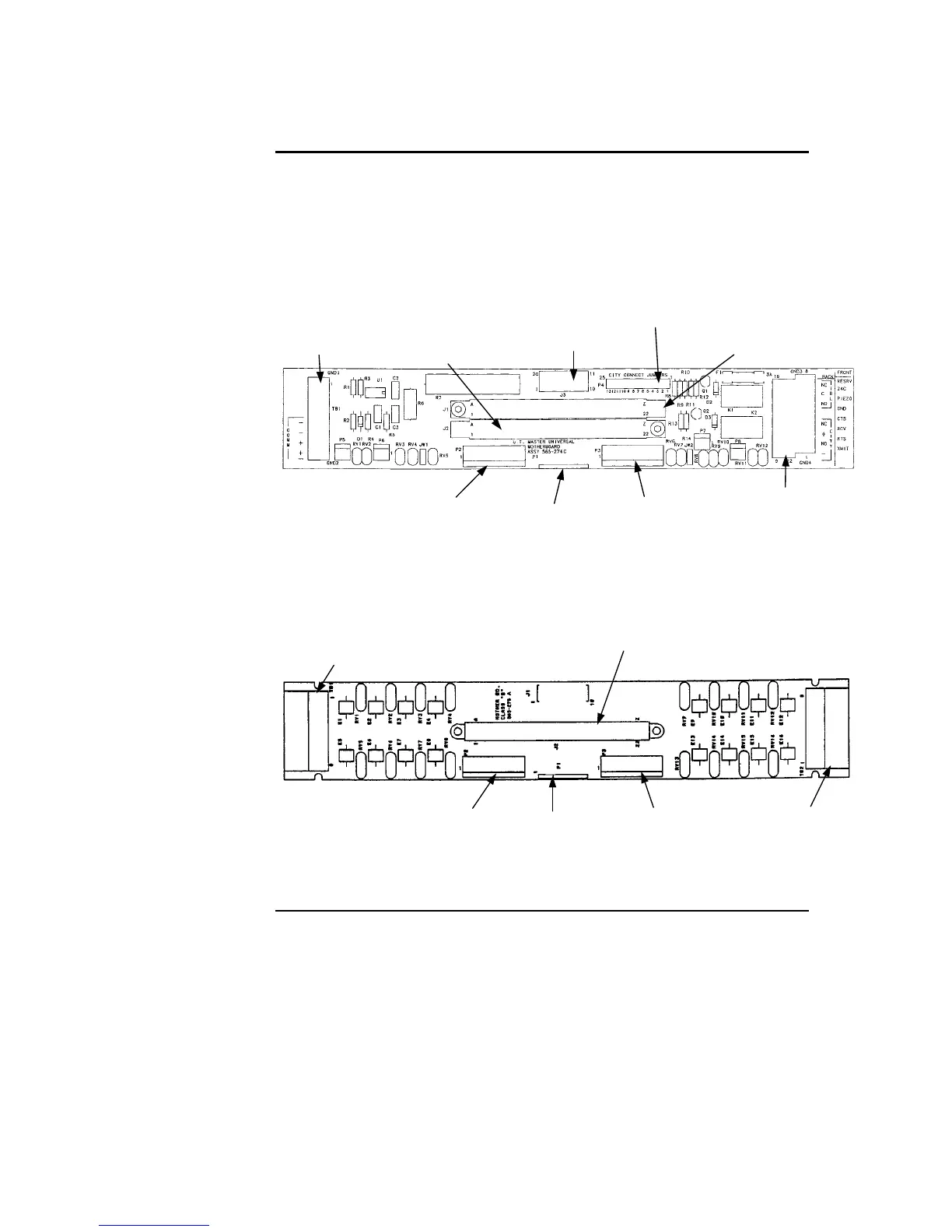

Figure 5-2. UT Motherboard with City Connection (565-274)
Note: The City (Brigade) connection is not used in Australia.
Figure 5-3. UT Motherboard without City Connection (565-275)
Continued on next page
Introduction to the 4100 Network Interface Card (NIC), Continued
NIC Motherboards
POWER/COMM BUS
CONNECTOR (J3)
2120 COMM/RS-232 CARD
CONNECTOR (J1)
SYSTEM POWER
CONNECTOR (P3)
INTERNAL COMMS
CONNECTOR (P2)
UT MASTER
CONTROLLER
CONNECTOR (J2)
POWER/COMM BUS
CONNECTOR (P1)
FIELD WIRING
TERMINAL
BLOCK (TB1)
FIELD WIRING
TERMINAL
BLOCK (TB2)
CITY CONNECT
JUMPERS (P4)
SYSTEM POWER
CONNECTOR (P3)
INTERNAL COMMS
CONNECTOR (P2)
POWER/COMM BUS
CONNECTOR (P1)
FIELD WIRING TERMINAL
BLOCK (TB1)
FIELD WIRING
TERMINAL
BLOCK (TB2)
2120 COMM/RS-232 CARD
CONNECTOR (J1)

Simplex 4100U Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Display	LCD
Power Supply	120/240 VAC, 50/60 Hz
Max Signaling Line Circuits (SLC)	2
Operating Temperature	0°C to 49°C (32°F to 120°F)
Humidity Range	10% to 93% non-condensing
Network Capability	Yes
Communication Protocol	RS-232, RS-485
Battery Backup	24 VDC
NAC Outputs	4
Signaling Line Circuits (SLCs)	2
Power Supply Current	3.0 A
Max Notification Appliance Circuits (NAC)	4
Max Releasing Circuits	4
Max Relay Circuits	4
Communication Ports	RS-232, RS-485
