Simplex 4100U Installation & Maintenance

3-32
The 4100 MINIPLEX system is comprised of a host panel containing everything required
in a standalone cabinet (see Chapter 2), plus:
• An RUI module in the master controller bay
• One or more remote MINIPLEX transponder cabinets
• A RIC II card in each transponder cabinet
This section describes each component in turn.
The RUI module consists of a motherboard and daughter card, which are used in the
master controller bay of a MINIPLEX system to extend the length of communications
wire to reach remote bays.

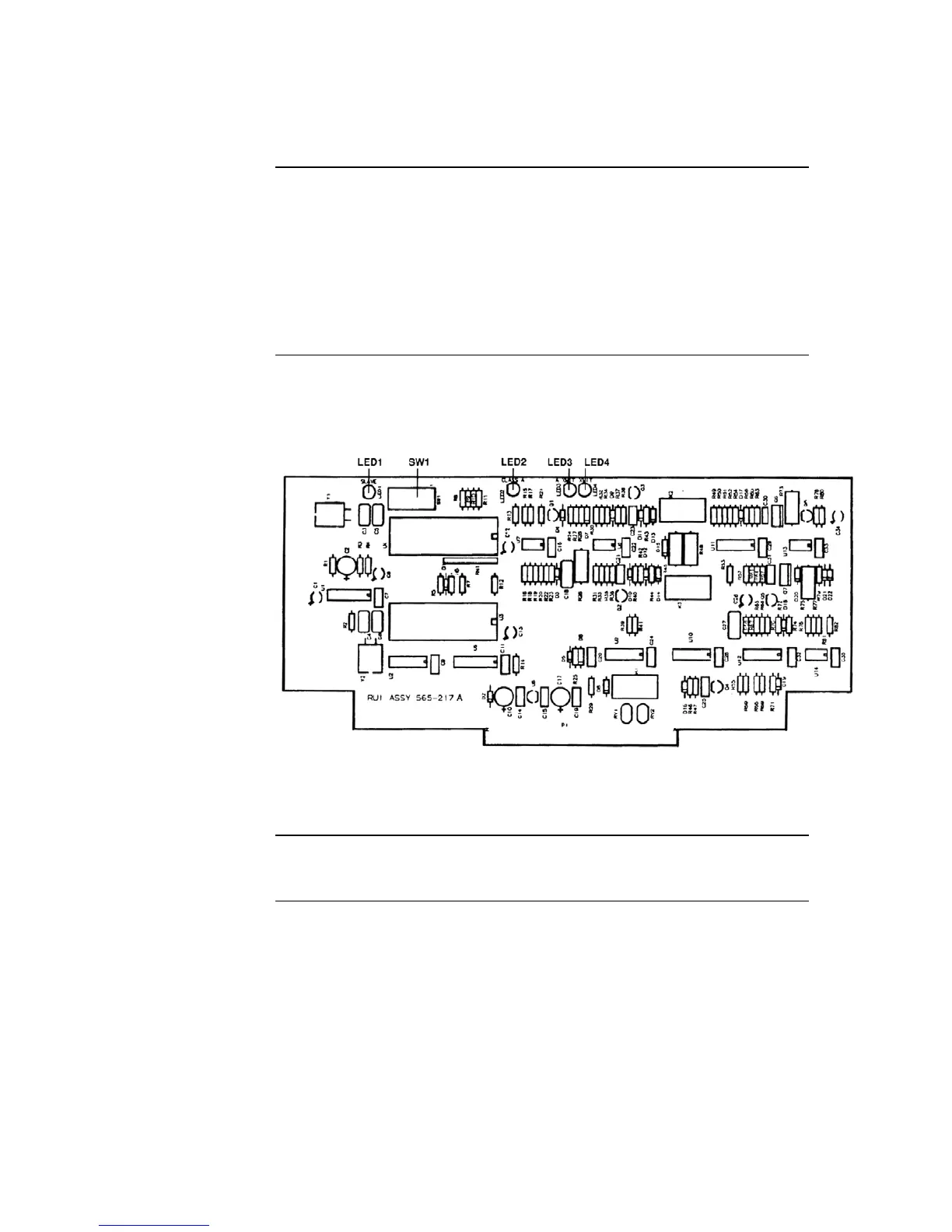

Figure 3-2. The Remote Unit Interface Card
The RUI card mounts onto a 562-799 or 562-856 Motherboard.
Communication wiring from the RUI module in the host panel extends to the RIC II card
in a remote transponder cabinet.
Continued on next page
MINIPLEX System Components (Non-4100U)
Overview
The RUI Card
Transponder
Cabinets

Simplex 4100U Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Display	LCD
Power Supply	120/240 VAC, 50/60 Hz
Max Signaling Line Circuits (SLC)	2
Operating Temperature	0°C to 49°C (32°F to 120°F)
Humidity Range	10% to 93% non-condensing
Network Capability	Yes
Communication Protocol	RS-232, RS-485
Battery Backup	24 VDC
NAC Outputs	4
Signaling Line Circuits (SLCs)	2
Power Supply Current	3.0 A
Max Notification Appliance Circuits (NAC)	4
Max Releasing Circuits	4
Max Relay Circuits	4
Communication Ports	RS-232, RS-485
