The 4100 NIC daughter card, shown in Figure 6-8 below, inserts into motherboards as

follows:

• If the 565-274 Master Motherboard is being used, the NIC daughter card is

inserted into connector J1.

• If the 566-227 Master Motherboard or 565-275 Motherboard is used, the NIC

daughter card is inserted into connector J2.

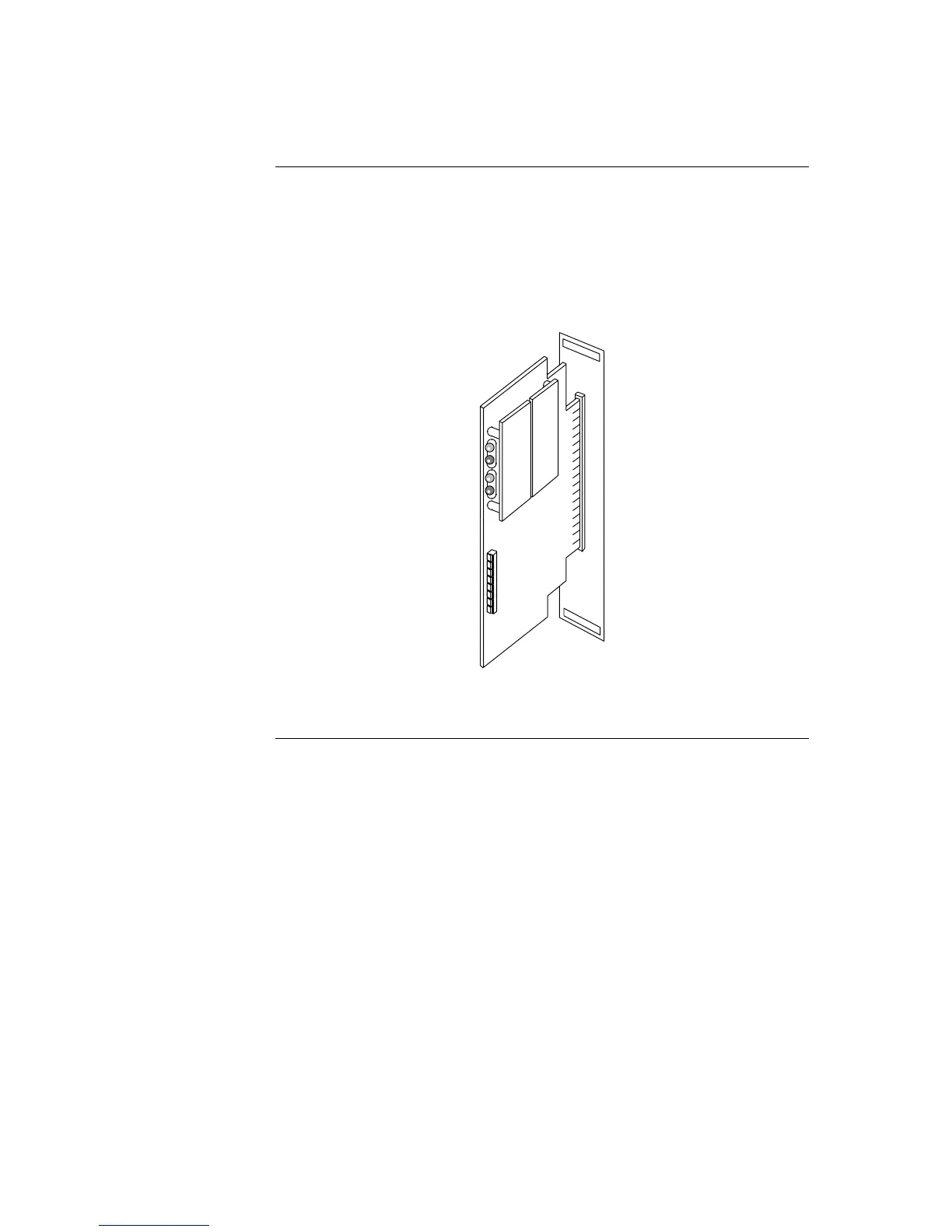

Figure 5-7. Installing the Daughter Card

Step 3. Mounting Network Cards

Default Chapter3
