Simplex 4100U Installation & Maintenance

8-6
Configuring the card consists of selecting the shield tie point, and setting the device
address..
If a shielded cable is used, connect the cable shield to the dedicated terminal on TB1 and
use jumper port (P1) to select where the shield will be tied.
• Position 1 - 2 connects the shield to 0 V.
• Position 2 - 3 connects the shield to Earth.
The device address is set on DIP switch SW1, which is a bank of eight switches (see
figure below). From left to right, these switches are designated as SW1-1 through SW1-8.
The function of these switches is as follows:
• SW1-1. This switch sets the baud rate for the internal 4100 communications
line running between the card and the 4100 CPU. Set this switch to ON.
• SW1-2 through SW1-8. These switches set the card’s address within the
4100 FACP. Refer to the table in Appendix A for a complete list of the switch
settings for all of the possible card addresses.
Note: You must set these switches to the value assigned to the card by the
4100 Programmer.
1 8 7 6 5 4 3 2

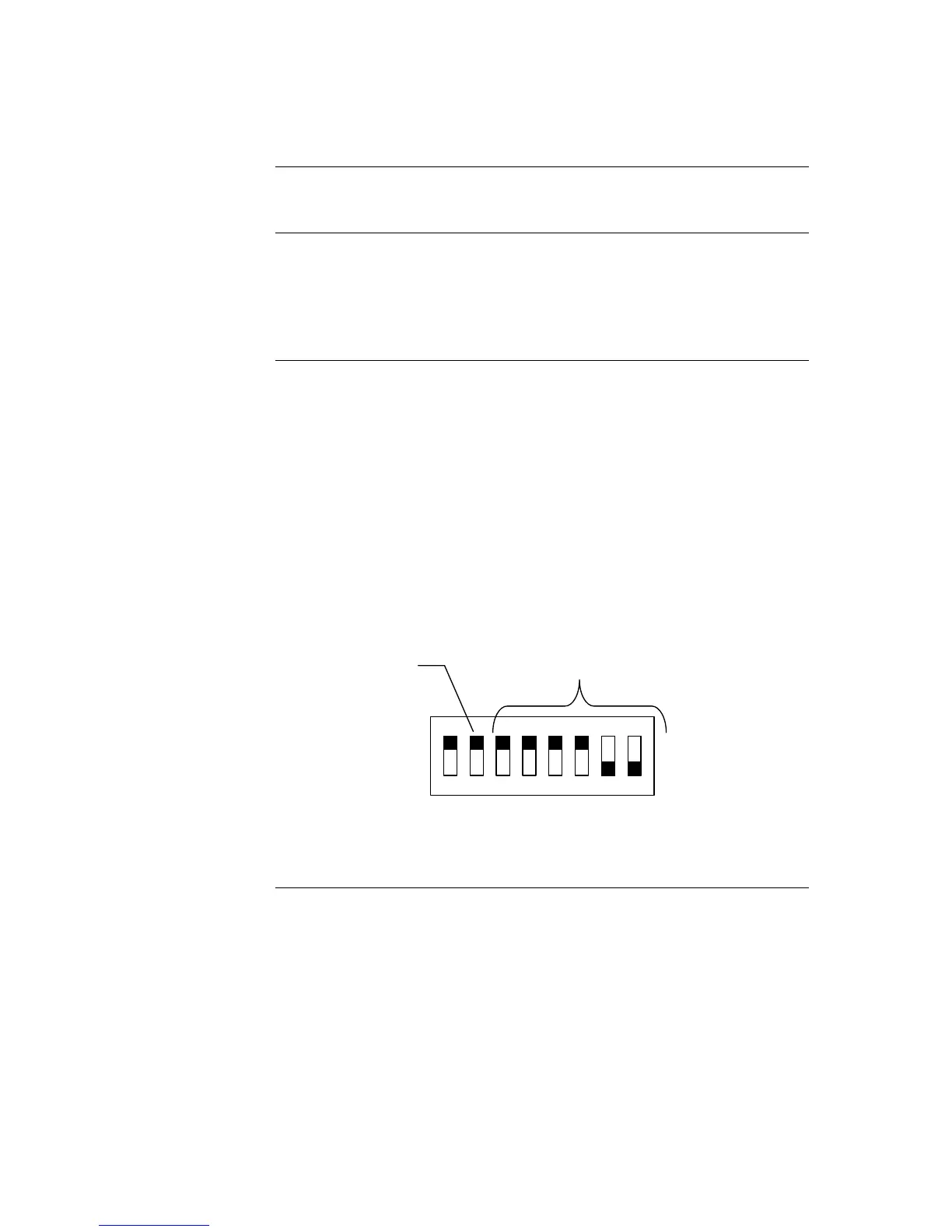

Figure 8-4. DIP Switch SW1
Configuring the Card
Overview
Setting the Shield
Tie Point
Setting the Address
ON
OFF
Dip Switches SW1-2 through
SW1-8 set the Card Address.
Figure shows an Address of 3.
4100 Comm. Baud Rate.
Switch (SW1-1)
Must Be Set to ON

Simplex 4100U Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Display	LCD
Power Supply	120/240 VAC, 50/60 Hz
Max Signaling Line Circuits (SLC)	2
Operating Temperature	0°C to 49°C (32°F to 120°F)
Humidity Range	10% to 93% non-condensing
Network Capability	Yes
Communication Protocol	RS-232, RS-485
Battery Backup	24 VDC
NAC Outputs	4
Signaling Line Circuits (SLCs)	2
Power Supply Current	3.0 A
Max Notification Appliance Circuits (NAC)	4
Max Releasing Circuits	4
Max Relay Circuits	4
Communication Ports	RS-232, RS-485
