Simplex 4100U Installation & Maintenance

5-6
There are two approved modules that can be plugged into the 4100-6014 NIC:
• 4100-6057 Fiber-Optic Media Card (565-261)
• 4100-6056 Wired Media Card (565-413)
Each module is shown below.

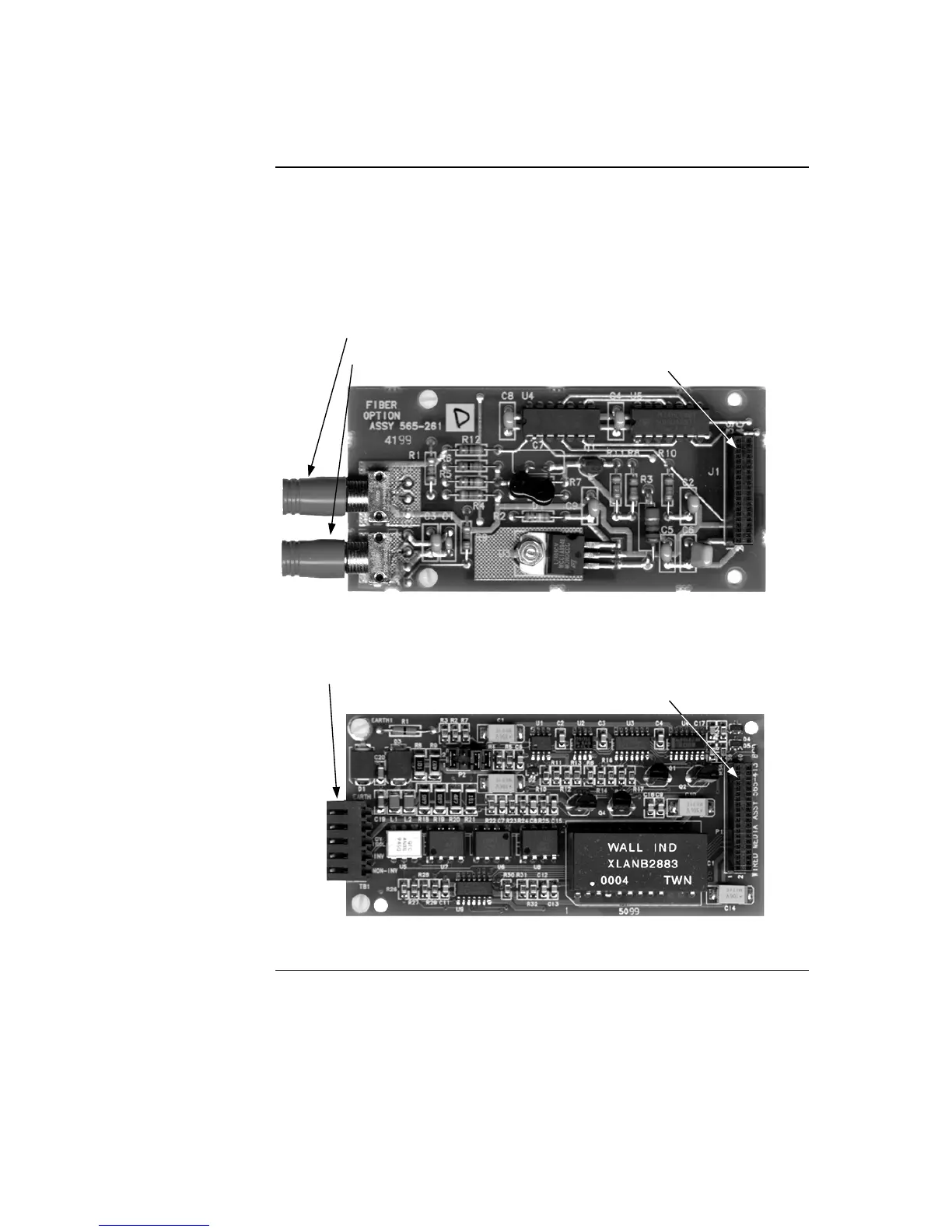

Figure 5-4. The 4100/4120-0143 Fiber-Optic Media Card
RESERVED (TB1)
Figure 5-5. The 4100/4120-0142 Wired Media Card
Continued on next page
Introduction to the 4100 Network Interface Card (NIC), Continued
NIC Media Cards
40-PIN NETWORK
INTERFACE CARD
CONNECTOR (J1)
FIBER-OPTIC DATA:
TRANSMIT (U1),
RECEIVE (U2)
40-PIN NETWOR
K
INTERFACE CARD
CONNECTOR (P1)

Simplex 4100U Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Display	LCD
Power Supply	120/240 VAC, 50/60 Hz
Max Signaling Line Circuits (SLC)	2
Operating Temperature	0°C to 49°C (32°F to 120°F)
Humidity Range	10% to 93% non-condensing
Network Capability	Yes
Communication Protocol	RS-232, RS-485
Battery Backup	24 VDC
NAC Outputs	4
Signaling Line Circuits (SLCs)	2
Power Supply Current	3.0 A
Max Notification Appliance Circuits (NAC)	4
Max Releasing Circuits	4
Max Relay Circuits	4
Communication Ports	RS-232, RS-485
