SMAR LC700 - M-401-R; M-401-Dr - Voltage;Current Analog Input Module

LC700 – User’s Guide
3.64
M-401-R/ M-401-DR - Voltage/Current Analog Input Module
(Supports Hot Swap and Device ID)
Part Number
M-401-R (8 analog inputs of voltage/current with internal shunt resistor)
M-401-DR (8 analog inputs of voltage/current with internal shunt resistor)
Description
This module reads 8 analog continue voltage or current signals. Inputs are isolated from the IMB.
Inputs are set to individually read:
M-401-R: The inputs are individually configured to read:
• 0-5 V, 1-5 V, 0-10 V, ± 10 V with the internal shunt resistor in the position “V”.
• 0-20 mA, 4-20 mA, with the internal shunt resistor in the position “I”.
M-401-DR: The inputs are differential and are individually configured to read:
• 0-5 V, 1-5 V, 0-10 V with the internal shunt resistor in the position “V”.
• 0-20 mA, 4-20 mA, with the internal shunt resistor in the position “I”.
401-DR/57 - 8 Voltage/Current Differential Analog Inputs
( 0-20mA, 4-20mA, 0-5V, 1-5V, 0-10V, ±10V )
1A
2A
3A
4A
5A
6A
7A
8A
9A
10A
1B
2B
3B
4B
5B
6B
7B
8B
9B
10B
CH0
+
+
+
I / V
I / V
I / V
I / V
I / V
I / V
I / V
I / V
+
+
+
+
+
CH1
CH3
CH2
CH4
CH5
CH6
CH7
8A
0
1
2
3
5
4
6
7
smar
PWR
M-401-DR
ID & Hot-Swap
smar

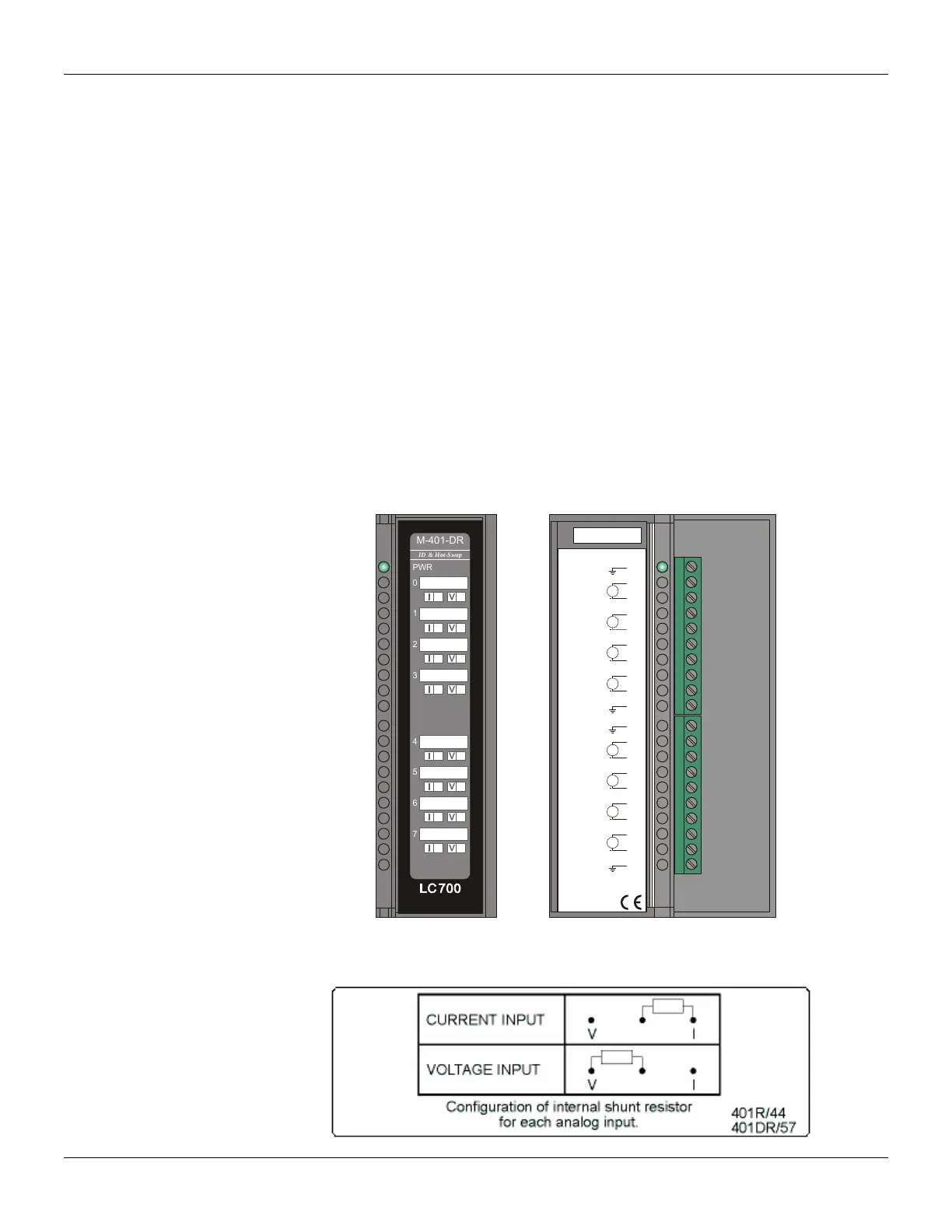

Figure 3. 38- Voltage/Current Analog Inputs M-401-DR
