CPU-700-C3 - Processor Module
(Supports Hot Swap)
Part Number:
CPU-700-C3 - CPU module with 30 Kbytes of non-volatile memory for user configuration and a
microcontroller of 15 MHz with real time clock.
Description
The CPU-700 is the processor module for the LC700 system. It is being also referred as the CPU-
Module. It is the Module that executes the programmed configuration and interacts with every other
Module of the LC700 system through a local bus IMB (Inter-Module-Bus) and/or Remote I/O
Channel.
The CPU-Module must always be plugged in the second Slot of the Rack addressed as ZERO (0). A
rotating switch, located in the circuit board of the Rack, is used to set the Rack number. The First
Slot on Rack 0 is always reserved for the Power Supply Module.
NOTE
In case the connection of the DB9 port is permanent, use the DB9-EXT to allow the user to close
the front panel of the module.
LC700 / CPU-700-C3 ( CPU 3 - Channels / RIO Master )
PGND
TX
1
2
3
4
7
5
P1 RS-232C
Modbus
RX
RTS
GND
CTS
1
2
3
4
5
6
7
8
T/R+
RIO
Baudrate
Modbus
Parameters
T/R-
P2 Modbus
GND
T/R+
T/R-
P3 Mod/RIO
GND
Fail
1
2
3
4
NOT USED
V
smar
+5VDC
HOLD
RUN
FORCE
RX
TX
P3
RX
TX
P2
FAIL
RX
TX
P1
CPU-700-C3
Hot-Swap
smar

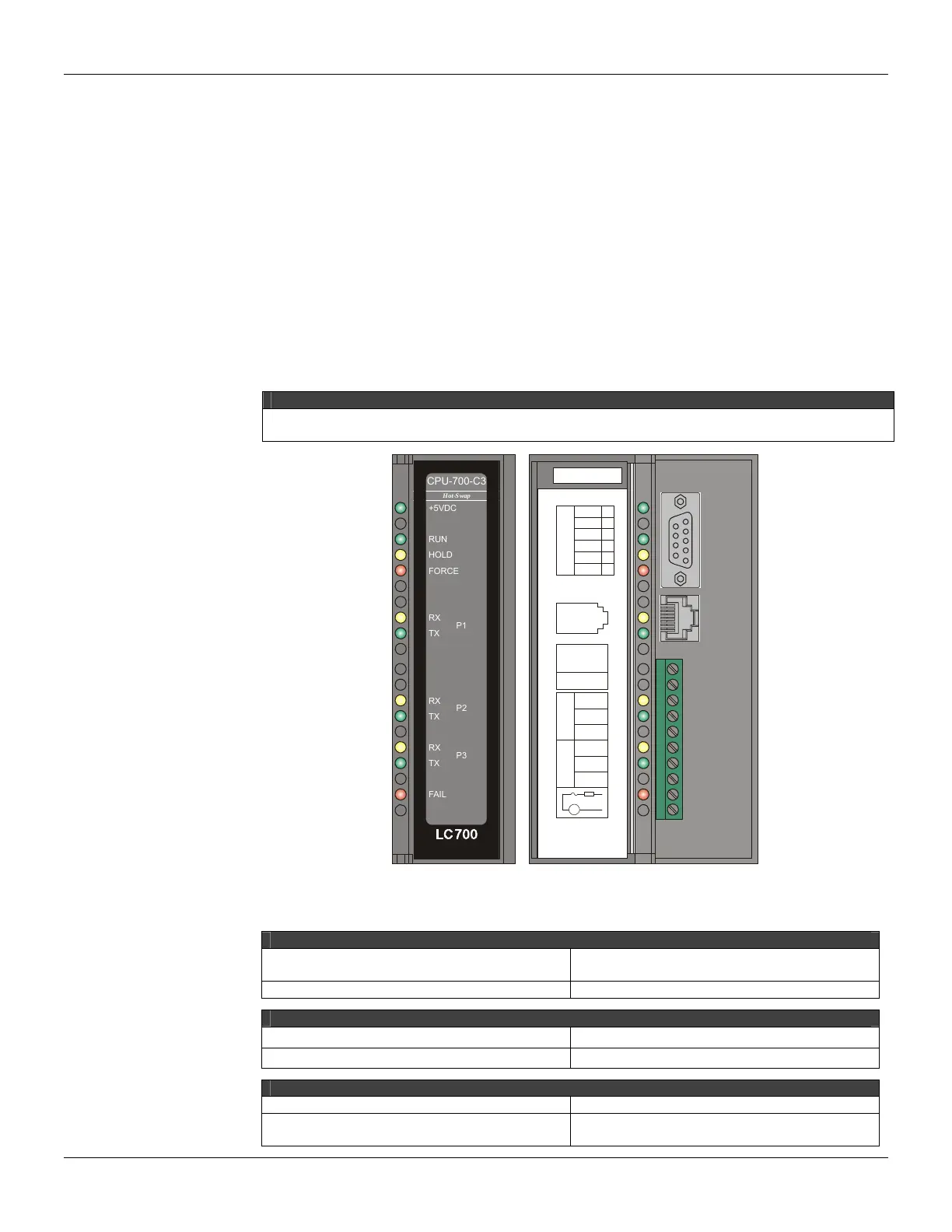

Figure 3.2- CPU-700-C3 Processor Module
Technical Specifications
CONFIGURATION MEMORY
Type
Electrical Erasable Programmable Read Only
Memory (EEPROM)
Available Size 30 Kbytes for CPU-700-C3
NUMBER of POINTS AVAILABLE FOR CONFIGURATION
Digital Points 1024
Analog Points
1024
CONFIGURATION/OPTIMIZATION
Software Package CONF700
Operating System
Windows 95, Windows NT, Windows 98,
Windows 2000, Windows XP
