LC700 – User’s Guide
2.8

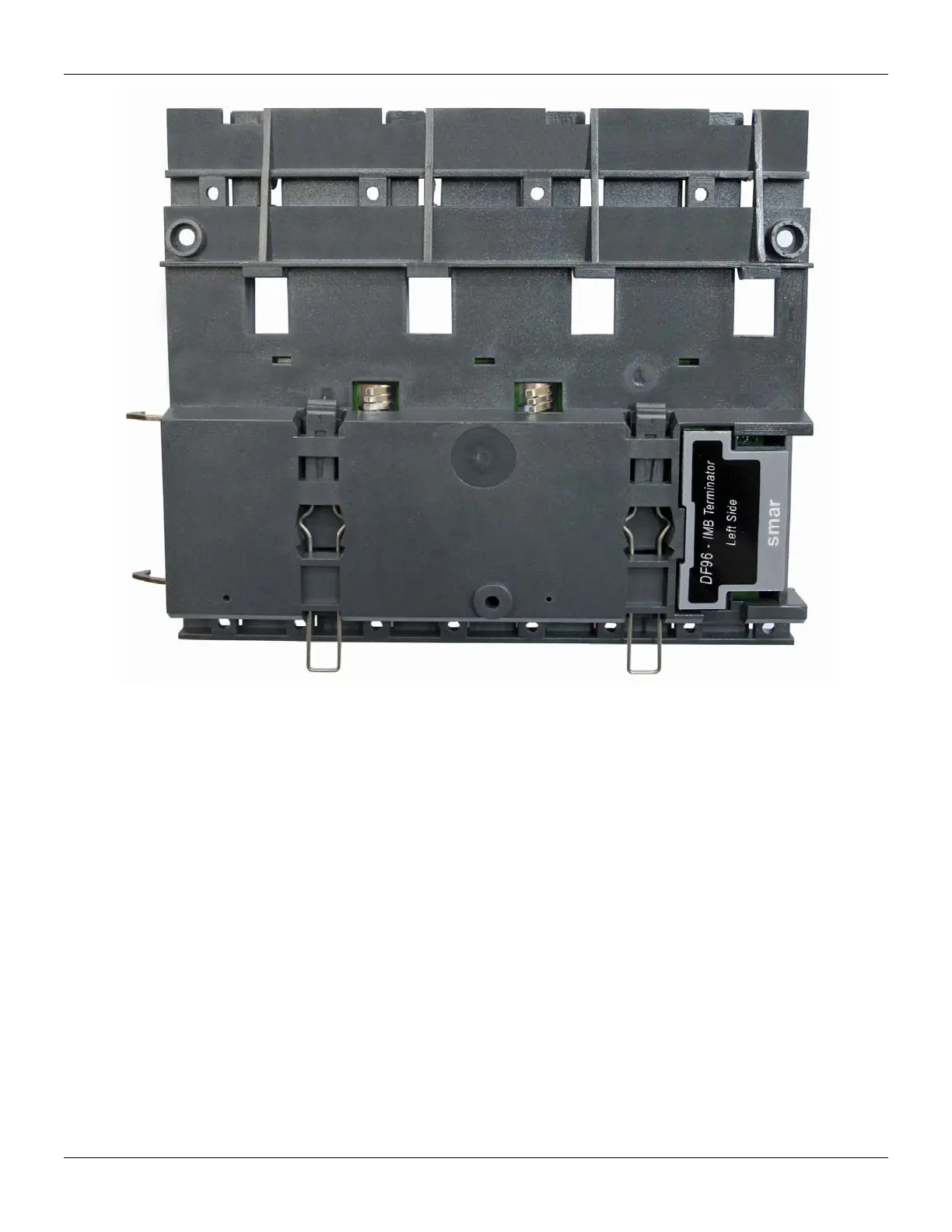

Figure 2.14
- DF96 terminator installed in the DF93 rack
Summarizing, if the last rack has a flat cable connected by left side, use the T-700 terminator. If the
last rack has a flat cable connected by right, use DF96 rack. Both cases depend on the number of
row of racks, if it is even or odd.
Expanding the system’s power - DF90 and DF91
This expansion has to be used when the LC700 is expanded in more than one row of racks, i.e., in
different DIN rail segments, one below the other.
