SMAR LC700 - Switch Ethernet Module; Description; Technical Specifications

Modules And Accessories
3.103
SW-700 – Switch Ethernet Module
(Supports Hot Swap)
Part Number
SW-700 - Ethernet Switch
Description
Smar SW-700 module is a Fast Ethernet Switch that provides LAN networks with 10 Base-T/100
Base-TX high-speed auto-sensing connectivity. Five ports, where one is dedicated for the Uplink will
provide access for many devices and will help to eliminate traffic congestions that can't be well
treated by Network Hubs.
The SW-700 is also a great choice when connecting different speed networks as Ethernet and Fast
Ethernet and will also optimize finding the right path for same type of Ethernet. There are LED
indicators for link/activity, speed, full/half duplex and collision for each individual port and one for
module power.
It can be powered by the Rack or by an external 24Vdc. Power supply redundancy circuit will
automatically switch from the user preferred supply to the other one in case of failure.
Industrial design, no internal fans and low EMC makes it a great option for automation and process
control applications.
For more details about the SW-700 module, see its equipment manual.
100
ETH 1
ETH 2
ETH 3
FD/Col
ETH 4
FD/Col
100
UpLink
SW-700
Hot-Swap
FD/Col
100
FD/Col
100
FD/Col
100
L/A
L/A
L/A
L/AL/A
ON
L/A
smar

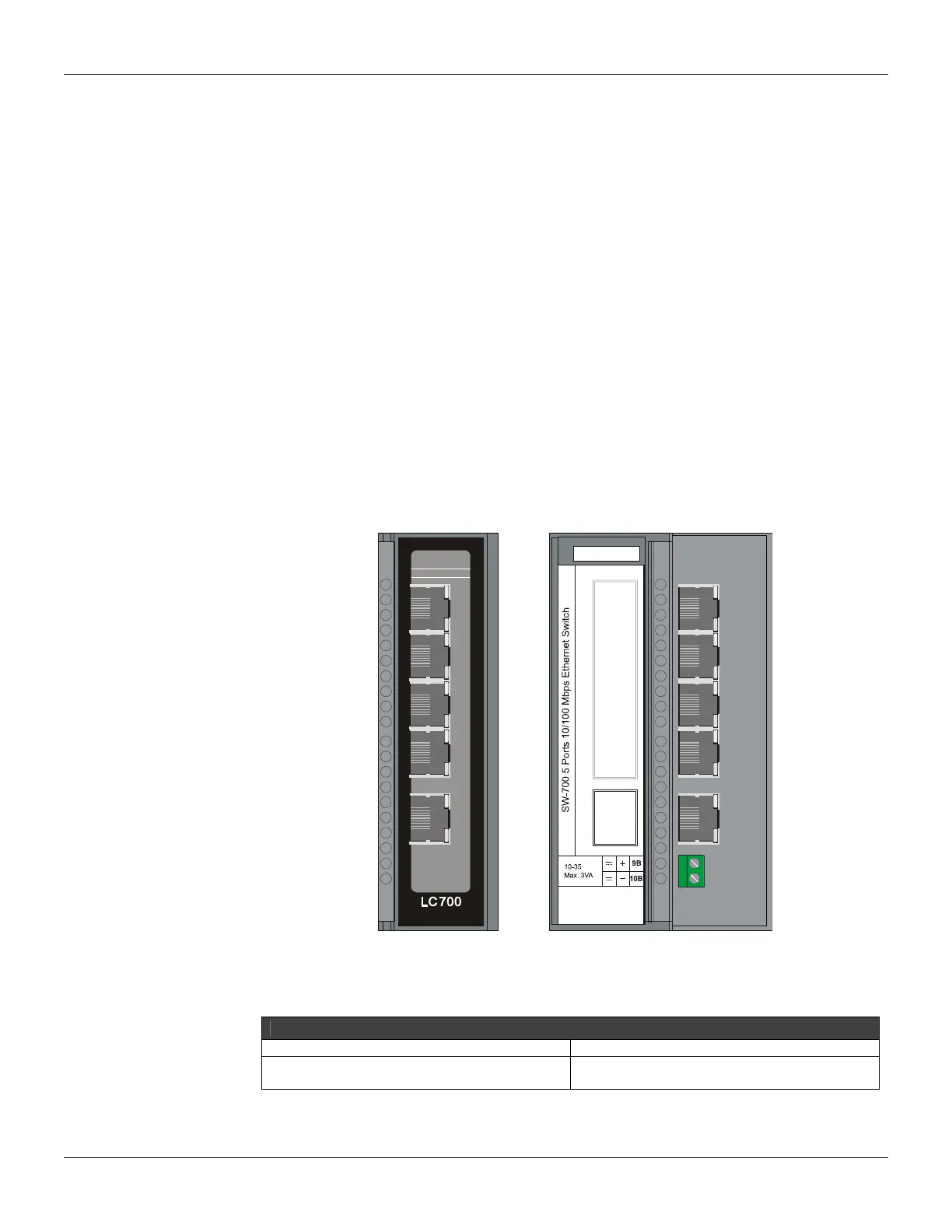

Figure 3.65 – SW-700 Switch Ethernet
Technical Specifications
PORTS
4 Ports (Regular ports) RJ-45 Regular ports
1 Port (Uplink Port)
RJ-45 (no cross cable to connect to a HUB or
a SWITCH)
