Panel layout and Rack assembly
It is important to project the panel correctly to assure that the environmental and electric
characteristics are suitable to all equipments installed inside the panel. The system installation
should comply with all standards, whether electric or operational, to guarantee the good
performance of the system. See in the following figure the instructions for rack assembling.
Assembling and connecting the Rack
See in the Chapter 2: LC700 ARCHITECTURE.
Rack positioning in the panel

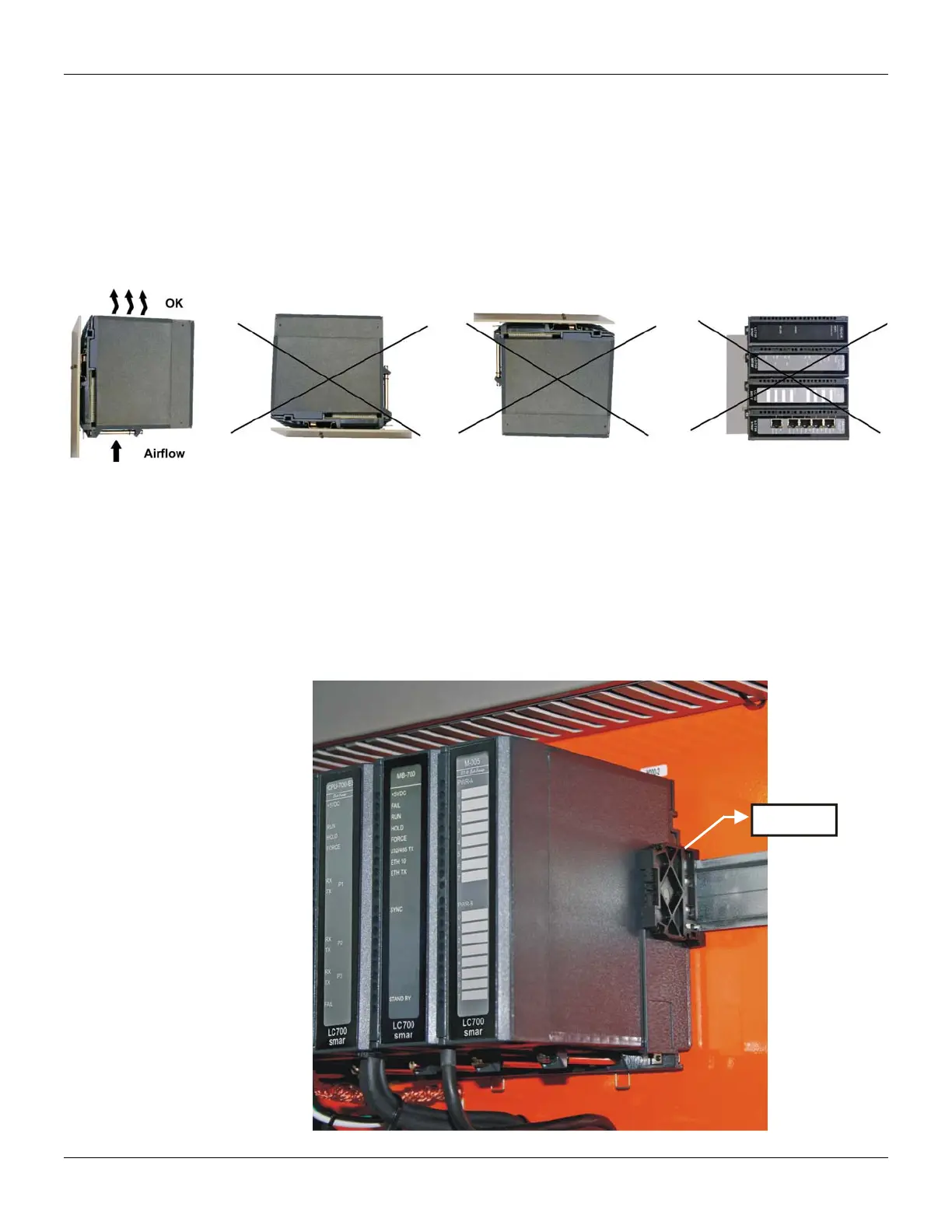

Figure 4.2 – Right Position for Rack Assembling
1. Assemble the racks in horizontal position, to guarantee the air flow for module ventilation;
2. To avoid problems (racks movement on the rail) due to vibration in the panel, at each extremity
you should use a fixation connector).
3. Keep an appropriate distance among the racks and the panel’s walls guaranteeing appropriate
module refrigeration.
Installation of posts in the rails for fixation and modules’ safety inside
the panel
This process is extremely necessary, because it will protect the Racks in the panel from vibration
that usually occurs in plants and provokes their displacement, causing damages to the system.
Post Connector
Final
Figure 4.3 – Final Post that Holds the Racks on the Rail
