SMAR LC700 - Architecture

Modules And Accessories
3.17
Architecture
Consider the figure below:
EIA 232
EIA 485
SSIO Cable
ICP-700-D3)
ETHERNET2
ETHERNET1
CPU-700-D3R
MB700
MB700
LC700 OPC
Server
PS-AC-R
(Power Supply)
PS-AC-R
(Power Supply)
PS-AC-R
(Power Supply)
P1
P1
P2
P2
P2
PS-AC-R
(Power Supply)
CPU-700-D3R
RIO-700-D3
P
3
ETHERNET

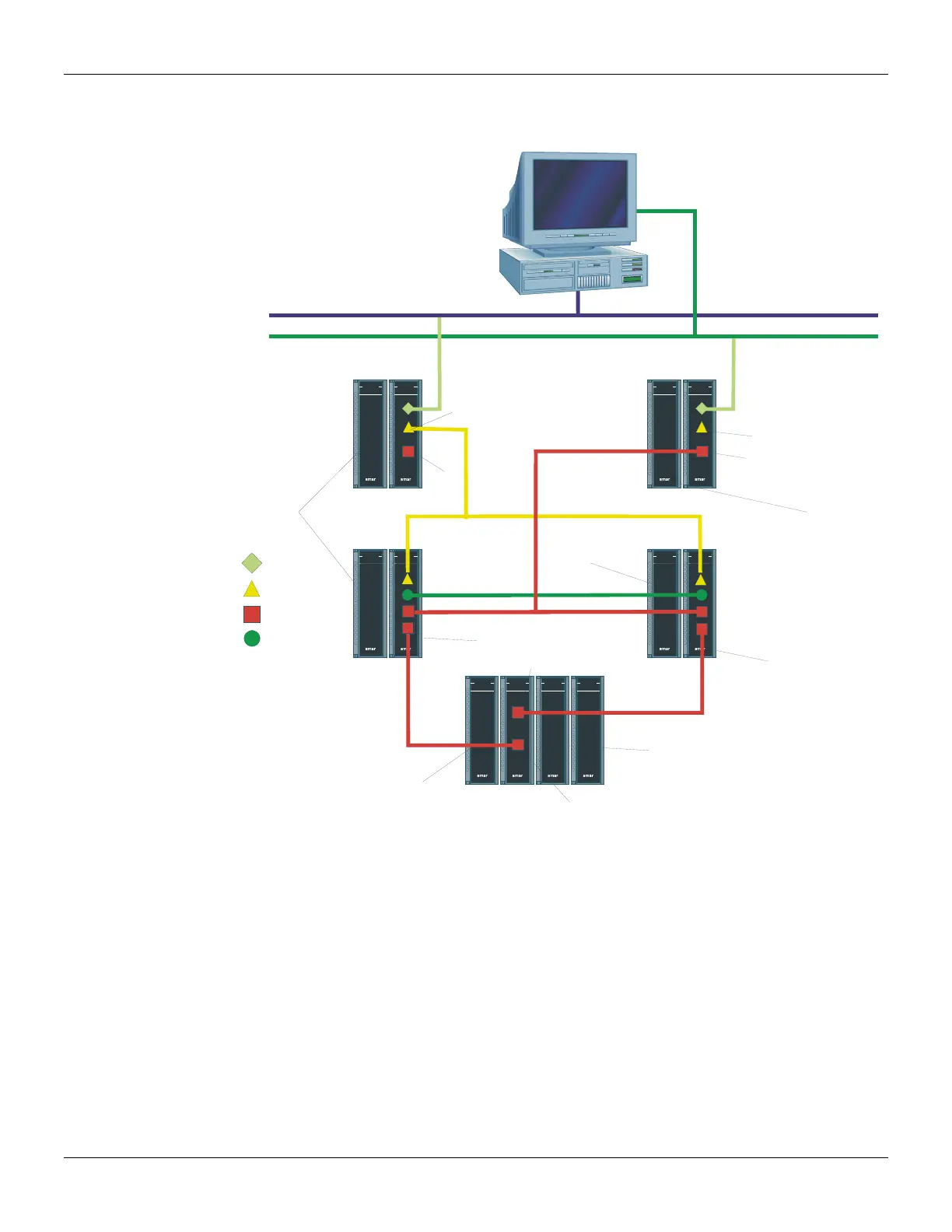

Figure 3.8 - The above architecture shows an illustrative example of the hardware used in the
CPU-700-D3R redundancy.
- Two Ethernet paths
- Two MB700 modules allow complete redundancy
- Two CPUs with main and backup roles
- A RIO module scans the MODBUS variables.
Note: The I/O modules are only included in the racks where the RIO module is present.
