SMAR LC700 - Switch Input Module; Technical Specifications

LC700 – User’s Guide
3.58
M-020 - Switch Input Module
Part Number
M-020 (1 group with 8 On/Off switches)
Description
This Module simulates 8 discrete inputs through the use of switches.
The Module can be used to set regular keys. The key may be useful to interact with the logic of the
program or in the “debugging” process for verification of functionality and optimization. Remember
that the CONF700 has “monitoring” and the “force individual signals” features for testing and
optimization.
020/20 - 1 Group 8 ON/OFF switches
0
1
3
2
4
5
6
7
M-020
+5VDC
0
1
2
3
4
5
6
7
smar
smar

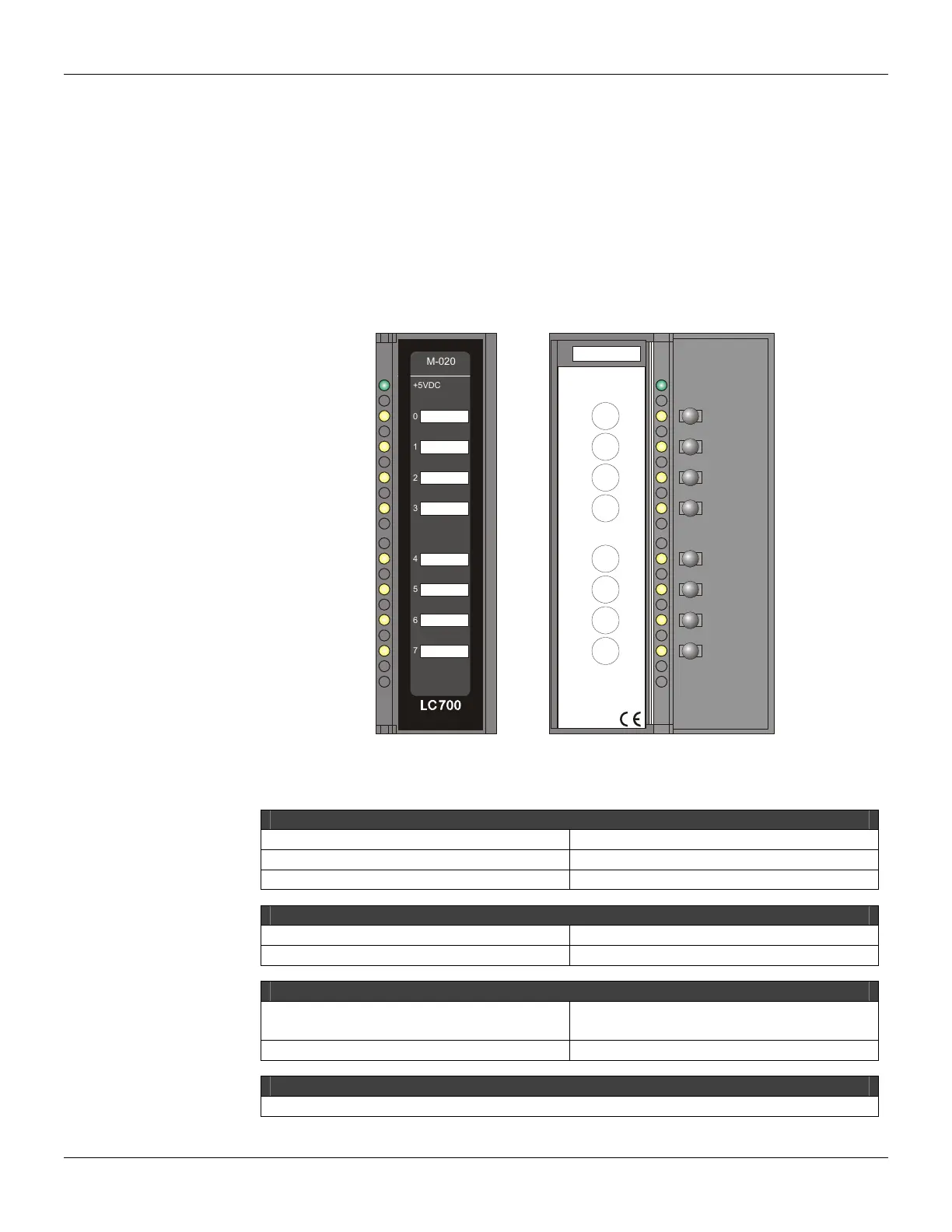

Figure 3. 33 - DC Switches Input Module M-020
Technical Specifications
INTERNAL SOURCE
Provided by the IMB bus 5 Vdc @ 45 mA maximum
Total Maximum Dissipation 0.225 W
Power Supply Indicator Green LED
SWITCHES
Indicator of status Yellow LED
Indicator Logic LED ON- Switch is pressed
DIMENSIONS AND WEIGHT
Dimensions (W x D x H)
39.9 x 137.0 x 141.5 mm;
(1.57 x 5.39 x 5.57 in)
Weight 0.250 kg
NOTE
The user may also debug using the on line mode of the CONF700 configuration tool.
