Connection and Grounding
After establishing the whole layout, the user can begin the assembly, connection and grounding of
each chassis. The connection is the links of the chassis’ metallic parts, assembly parts, frames,
shield and panel, to reduce the EMI effects and grounding noise. Grounding is the connection to the
grounding-electrode system to place equipment at earth ground potential.
All equipments powered with AC load should be grounded on the BTC Ground Bar and all analog
and digital equipments should be grounded in the BTA Ground Bar. See figure below that shows the
connections of BTA and BTC to the plant’s ground mesh.
IMPORTANT
For total system’s safety the BTA and BTC bar should be grounded.
- 24V

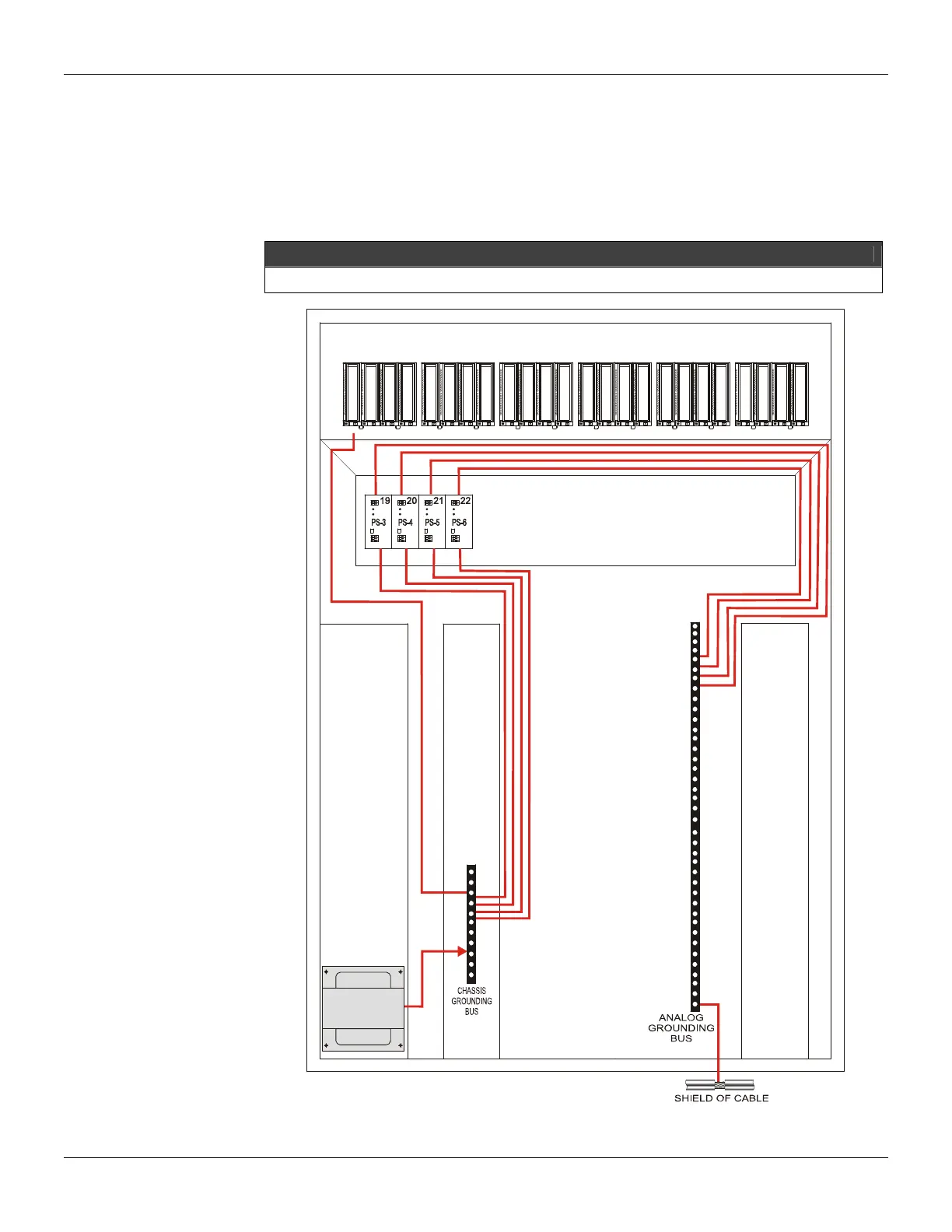

Figure 4.4 – Typical Grounding Configuration
