Modules And Accessories
3.125
DF90 cable
The power expansion has to be used when the LC700 is expanded in more than one row of racks,
i.e., in different DIN rail segments, one below the other. The DF90 is the IMB power transmission
cable. Its features provide low voltage drop and protection against electromagnetic interference.
The cable DF90 must be connected only through DF91. It cannot be directly installed in the racks,
because it can damage the racks. For further details, see Chapter 2.

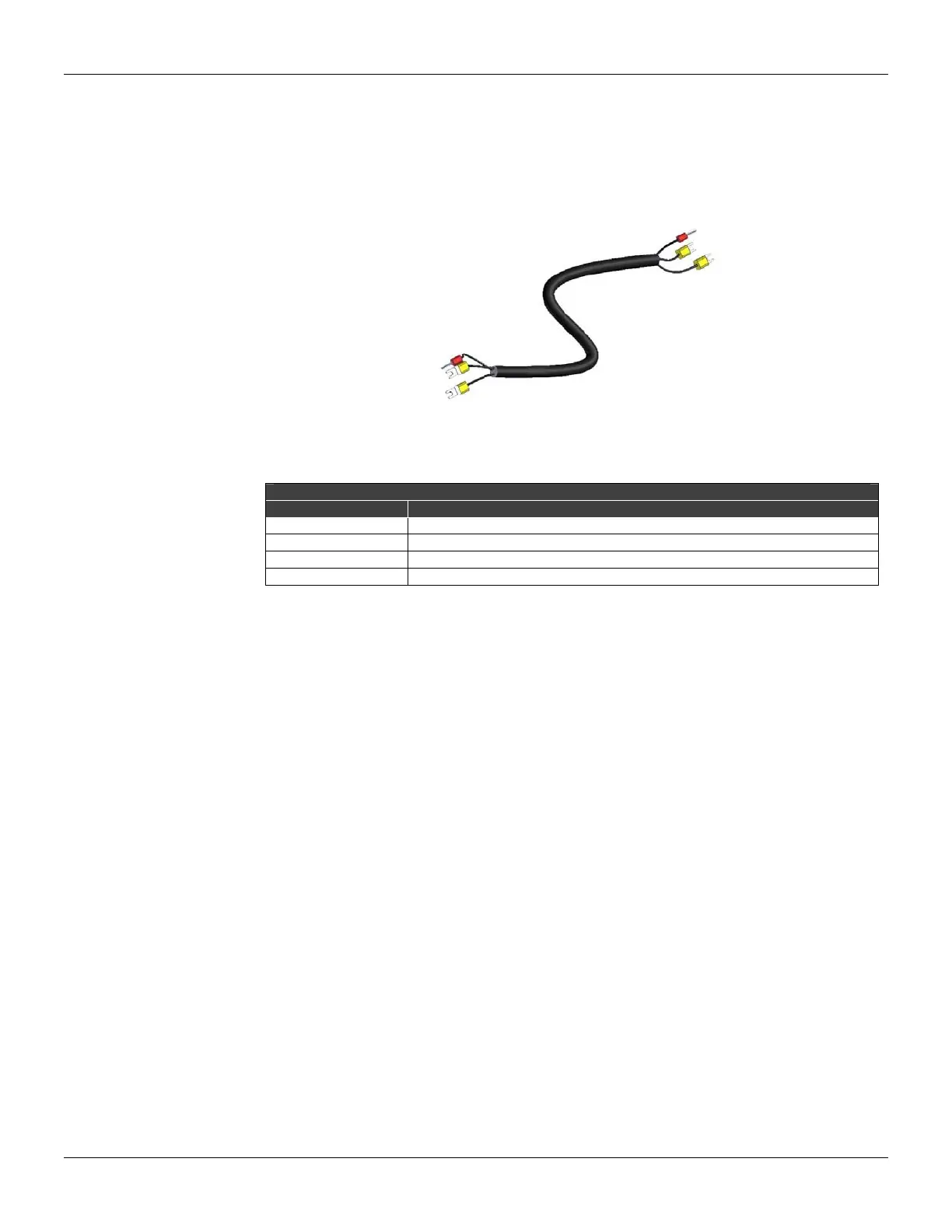

Figure 3.83 - IMB power cable (DF90)
Shielded Flat cable
R-700-4A System Base
Code Description
FC-700-1A Flat cable to connect 2 racks – length 65 cm
FC-700-2A Flat cable to connect 2 racks – length 81,5 cm
FC-700-3A Flat cable to connect 2 racks – length 98 cm
FC-700-4A Flat cable to connect 2 racks – length 110 cm
