M-101 – DC Discrete Output Module
(Supports Hot Swap and Device ID)
Part Number
M-101
(1 group of 16 open collector outputs)
Description
This Module is designed with open collector NPN transistors that are able to drive relays,
incandescence lamps, solenoids and other loads with up to 0.5 A per output. It has one group of 16
optically isolated open collector outputs. This means that all of them work under a common ground.
101/21 - 1 Group 16 open Collector outputs
PWR
PWR
GND
GND
1A
2A
3A
4A
5A
6A
7A
8A
9A
10A
1B
2B
3B
4B
5B
6B
7B
8B
9B
10B
M-101
PWR
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
smar
ID & Hot-Swap
smar

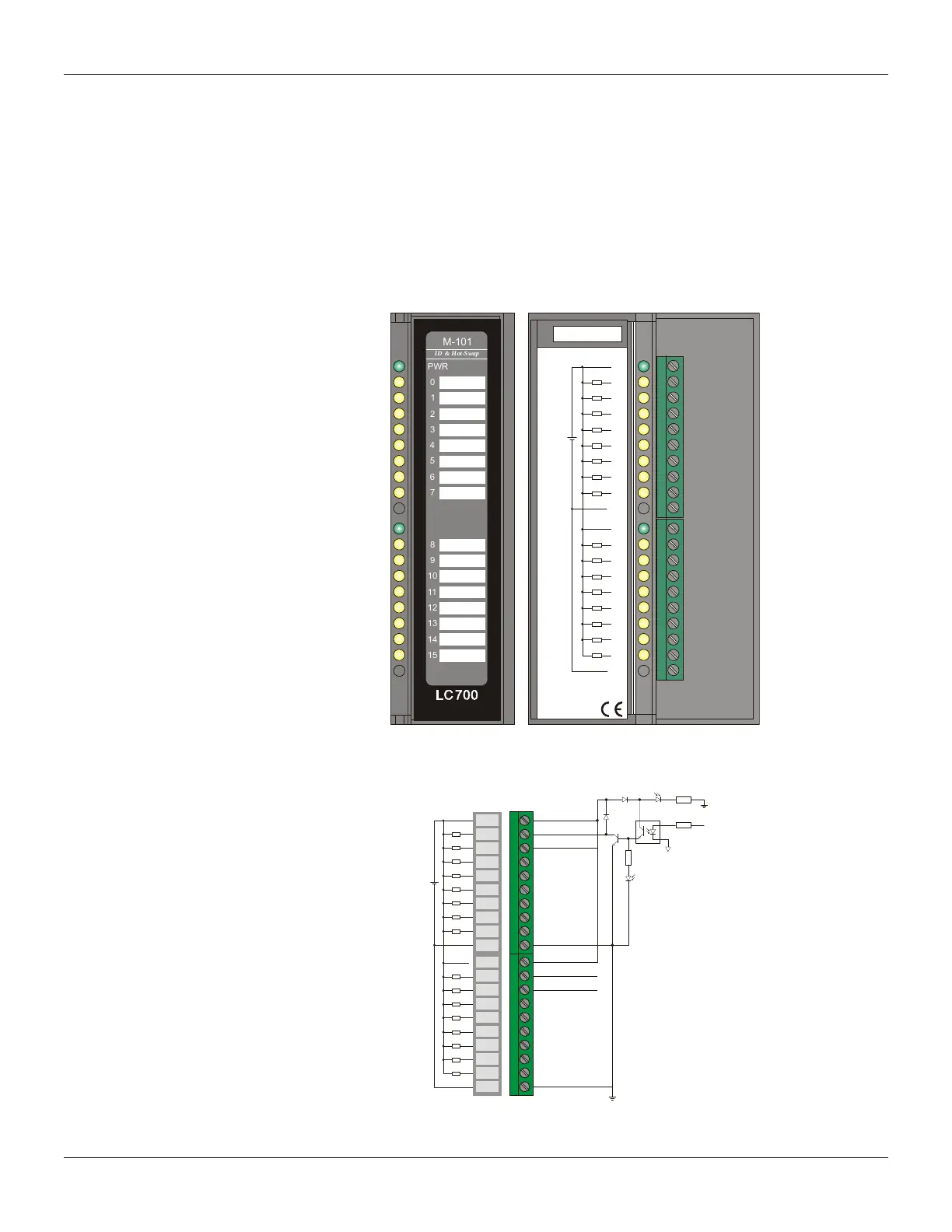

Figure 3. 45- Open Collector Outputs Module M-101
