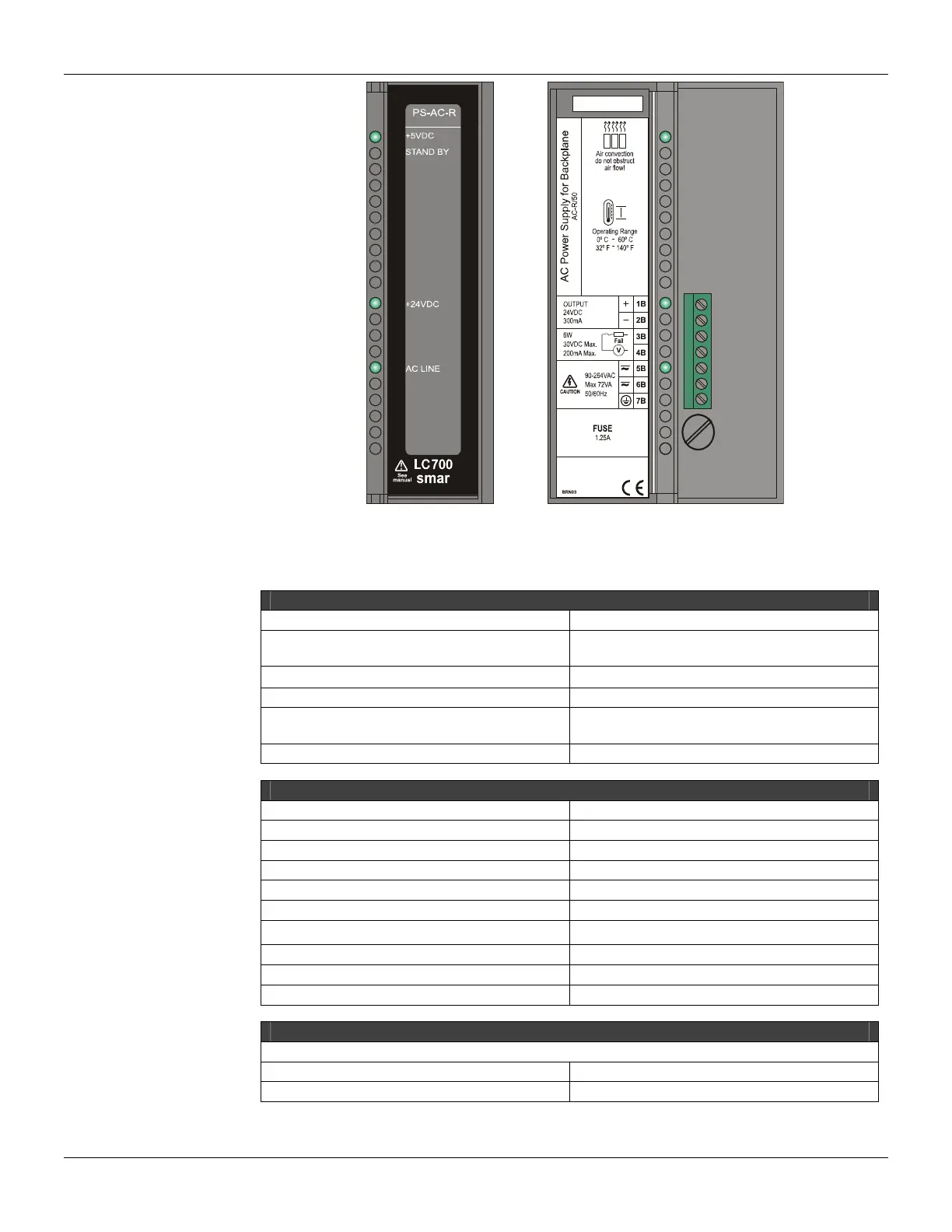

Figure 3.18 – AC Power Supply
Technical Specifications
INPUTS
DC 127 to 135 Vdc
AC
90 to 264 Vac, 50/60 Hz (nominal), 47 to 63
Hz (range)
Inrush Current
< 36 A @ 220 Vac. [ΔT < 740 us]
Power Fail 6 ms @ 102 Vac (120 Vac – 15%) [Full Load]
Shutdown
> 27 ms @ 102 Vac; > 200ms @ 220 Vac [Full
Load]
Maximum consumption 72 VA
OUTPUTS
a) Output 1 (internal use) 5.2 Vdc +/- 2%
Current 3 A Maximum
Ripple: 100 mVpp Maximum
Indicator +5 VDC (Green LED)
Hold up Time > 40 ms @ 120 Vac [Full Load]
b) Output 2 (external use) 24 Vdc +/- 10%
Current 300 mA Maximum
Ripple 200 mVpp Máximo
Short circuit Current 700 mA
Indicator +24VDC (Green LED)
ISOLATION
Input, internal output and external output signals are isolated.
Between outputs and ground 1000 V
RMS
Between input and output 2500 V
RMS
