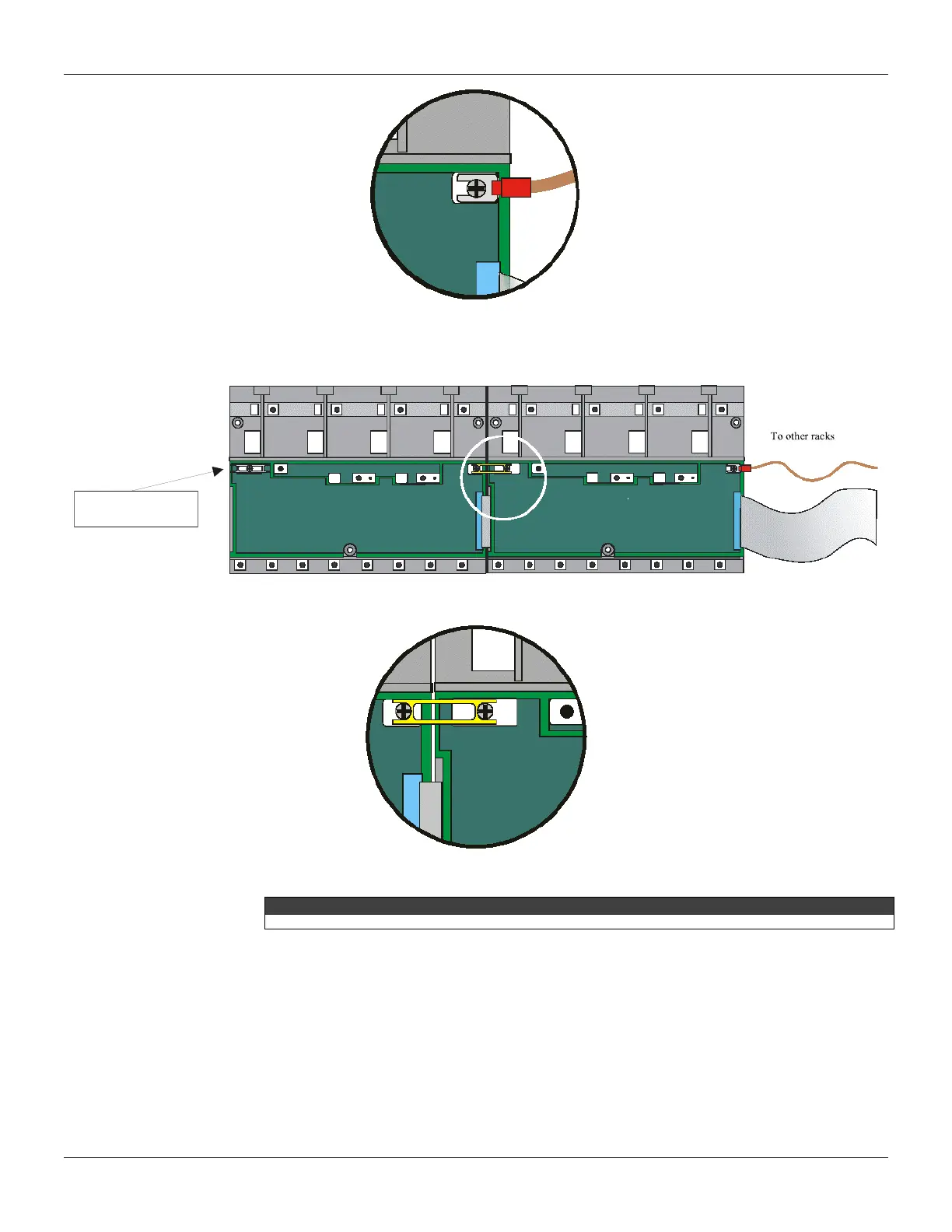

Figure 2.27 - Detail of the Signal Ground connecting wire
Adjacent Racks
The position of this
must not be c
plate
hanged
Figure 2.28 - Connecting adjacent Racks
Figure 2. 29 - Detail of the adjacent Rack
Important
It is not recommended to connect digital ground and housing ground.
Installing a Module
It is possible to mix different types of input and output modules at any position of the backplane
despite its voltage levels. However, to improve performance it is recommended that the FB700 and
M-402 modules are placed as close as possible from the power source module.
Be sure to write the description for each input or output channel to make the identification easier.
Some modules require an auxiliar 24 Vdc Power Source. This can be supplied through the PS-AC-R
module or an external power source. These modules also can be used to supply external sensors,
transmitters and others.
