LC700 Architecture
2.7
T-700 – IMB terminator for right side
It is connected to connector N of the last rack, when it is connected to the others by the left side.
See the next figure.

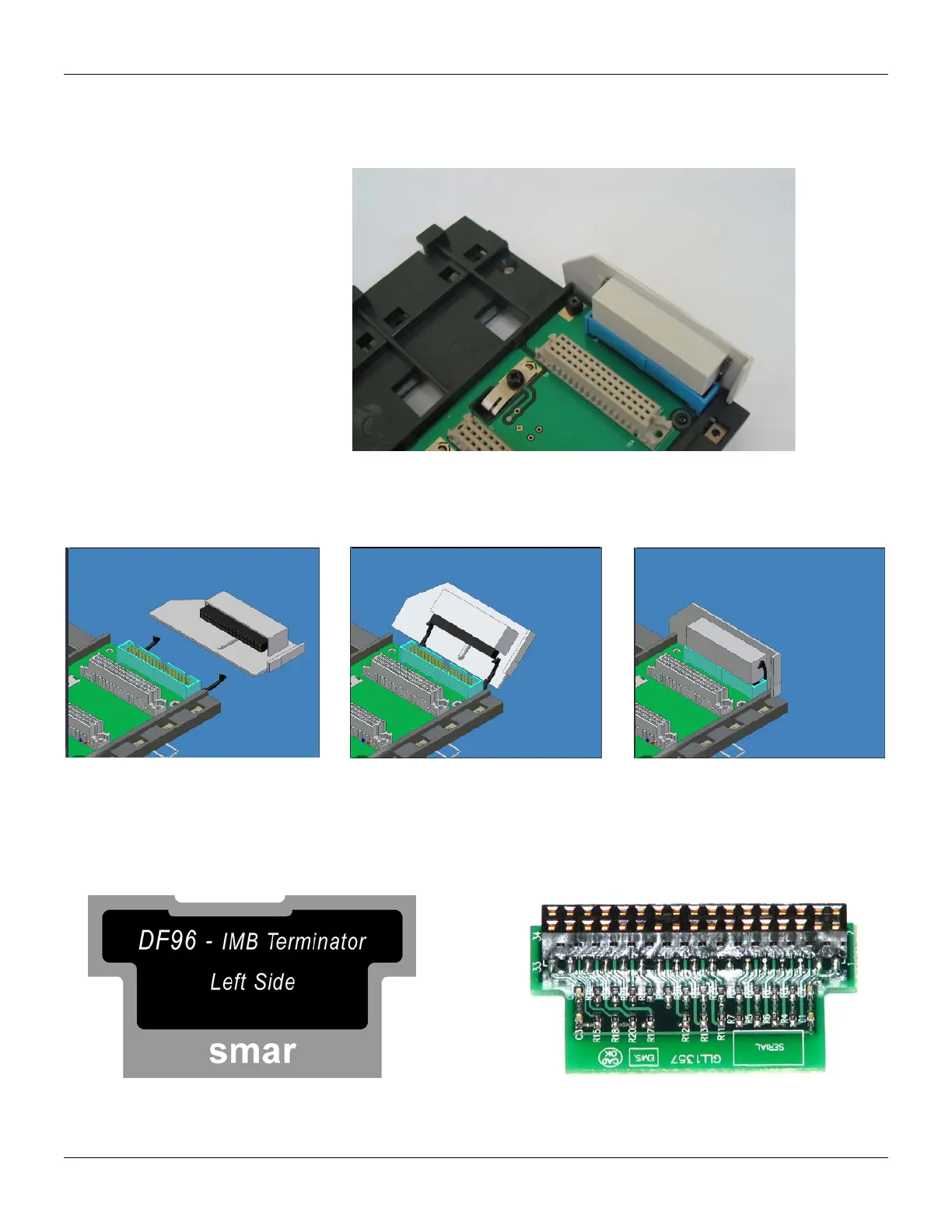

Figura 2.11 – T-700 terminator installed in the rack
Installation
Follow the pictures below to install correctly the T700.
Figure 2.12 – Installation steps, T-700 terminator
DF96 – IMB terminator for left side
It is connected to connector E of the last rack, when it is connected to the others by the right side.
See the next figure.
Figure 2.13 - DF96 terminator
