LC700 – User’s Guide
3.118
C232-700 - EIA-232 Cable for CPU-700- X3* or FB-700
Part Number
C232-700 (Cable for CPU-700 or FB-700)
Description
The main purpose of this cable is to connect the CONF700 with the CPU700 Module for
configuration and/or optimization of a LC700 system. It can also be used with the FB-700 Module to
change the version of the internal firmware in the Flash Memory.

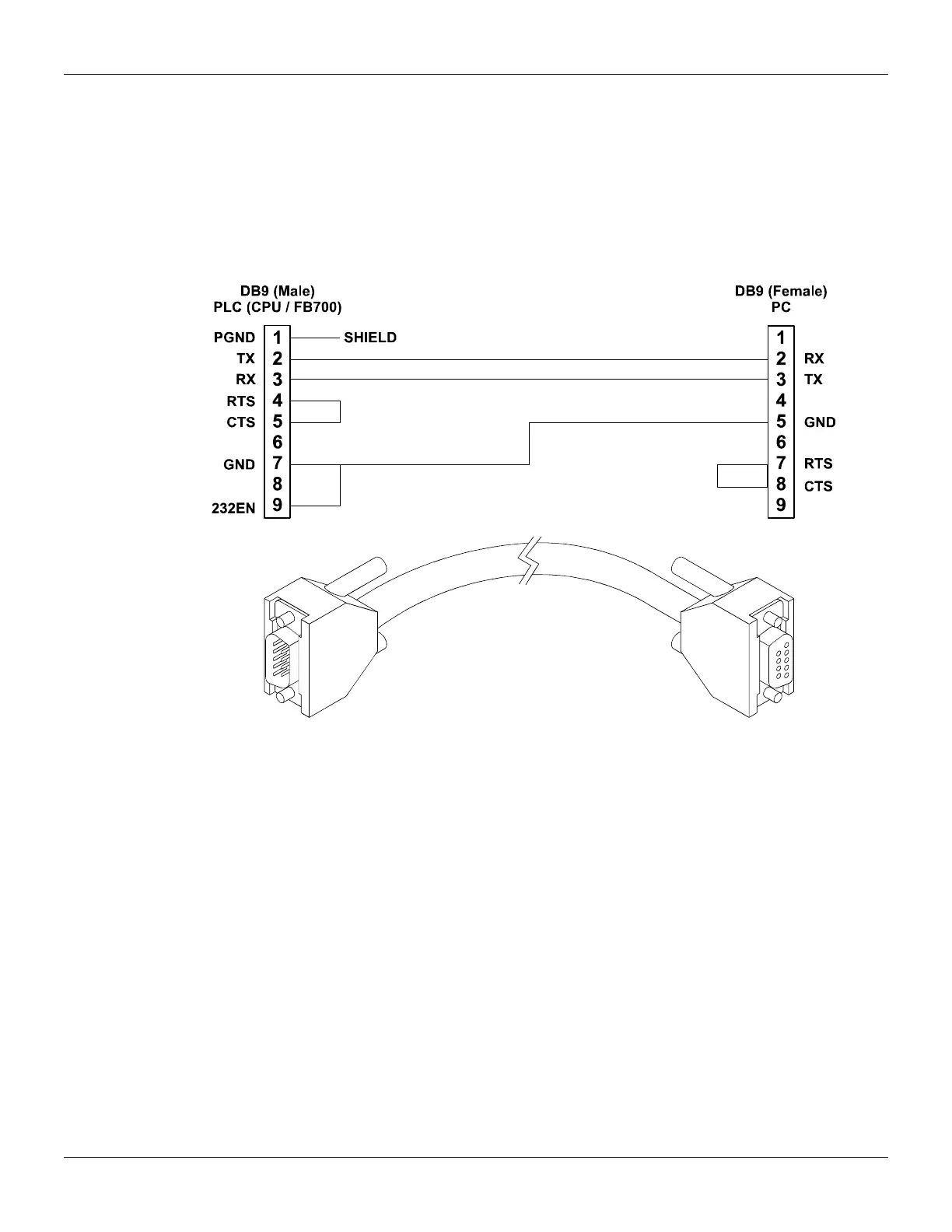

Figure 3.75 - EIA-232 Cable for CPU-700 or FB-700
* X means D or E.
