C
ONFIGURING
THE
S
WITCH
2-68
- FC - Supports flow control
Flow control can eliminate frame loss by “blocking” traffic from end
stations or segments connected directly to the switch when its
buffers fill. When enabled, back pressure is used for half-duplex
operation and IEEE 802.3x for full-duplex operation. (Avoid using
flow control on a port connected to a hub unless it is actually
required to solve a problem. Otherwise back pressure jamming
signals may degrade overall performance for the segment attached to
the hub.)
(Default: Autonegotiation enabled; Advertised capabilities for
100BASE-TX – 10half, 10full, 100half, 100full; 1000BASE-T – 10half,
10full, 100half, 100full, 1000full; 1000BASE-SX/LX/LH – 1000full)
• Trunk – Indicates if a port is a member of a trunk. To create trunks
and select port members, see “Trunk Configuration” on page 2-69.
Note: Autonegotiation must be disabled before you can configure or
force the interface to use the Speed/Duplex Mode or Flow
Control options.

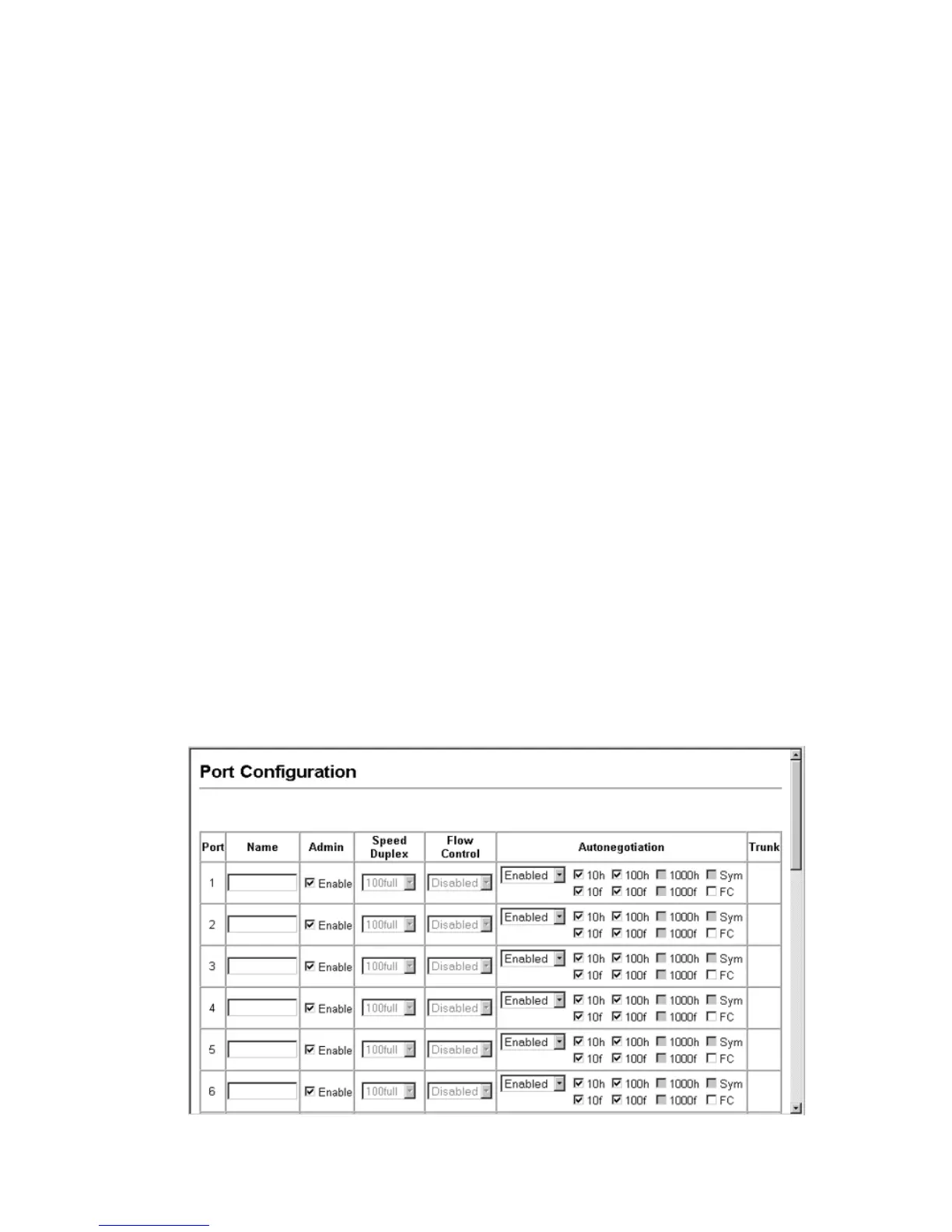

Web – Click Port, Port Configuration or Trunk Configuration. Modify the
required interface settings, and click Apply.
