A
CCESS
C
ONTROL
L
ISTS
2-63

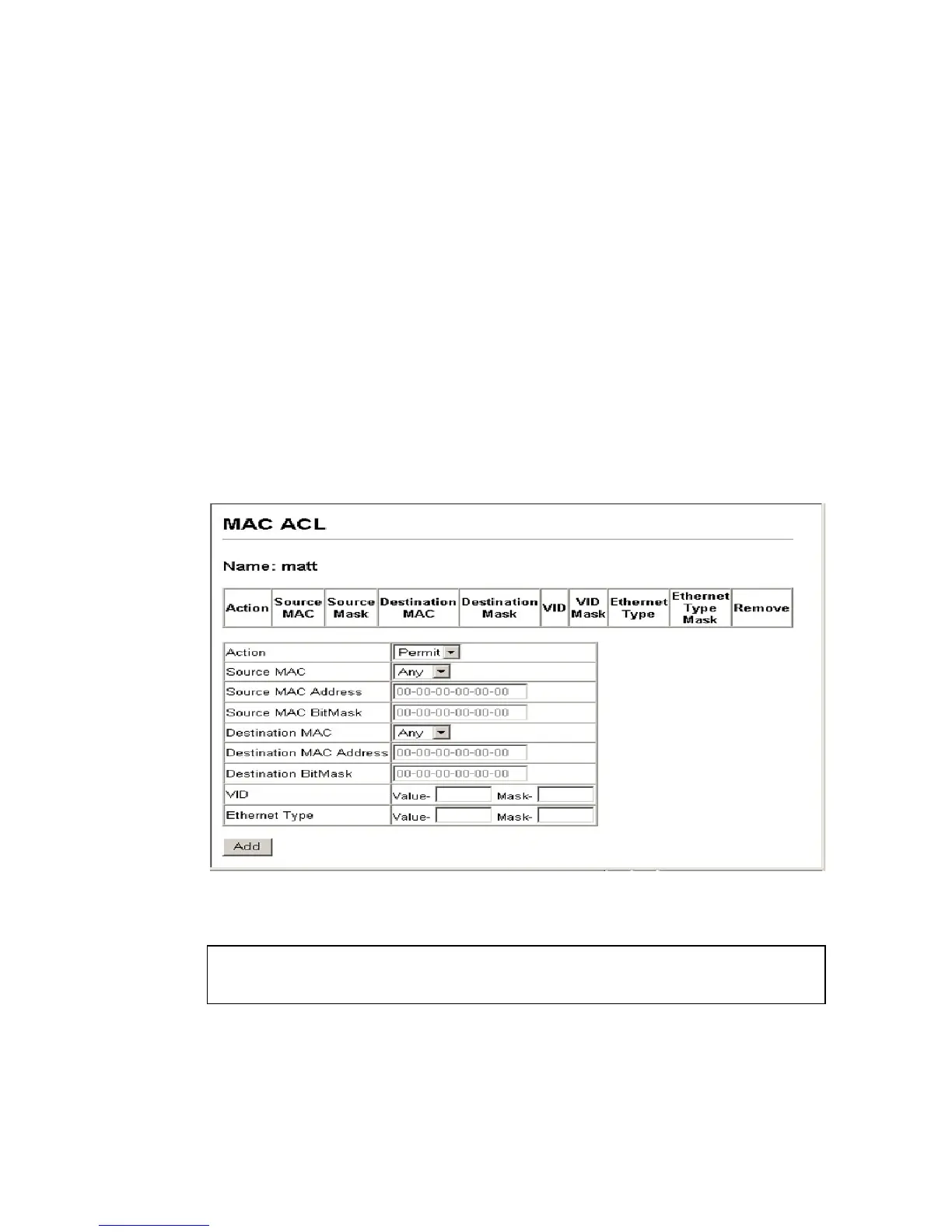

MAC ACL
Web –
1. Specify the action (i.e., Permit or Deny).
2. Select the Source MAC address using a dash to separate each two
digits (e.g., 11-22-33-44-55-66). Leave this field blank to specify any
host address.
3. Specify the Source Mask using a binary bitmask to indicate an address
range.
4. Specify the Destination MAC, and a Destination Mask if required.
5. Specify the VID and the Ethernet Type as a protocol number.
(Range: 1536-65535; Default: all)
6. Click Add.
CLI – This rule permits packets from any source MAC address to the
destination address 00-e0-29-94-34-de where the Ethernet type is 0800.
Console(config-mac-acl)#permit any host 00-e0-29-94-34-de
ethertype 0800
3-183
Console(config-mac-acl)#
